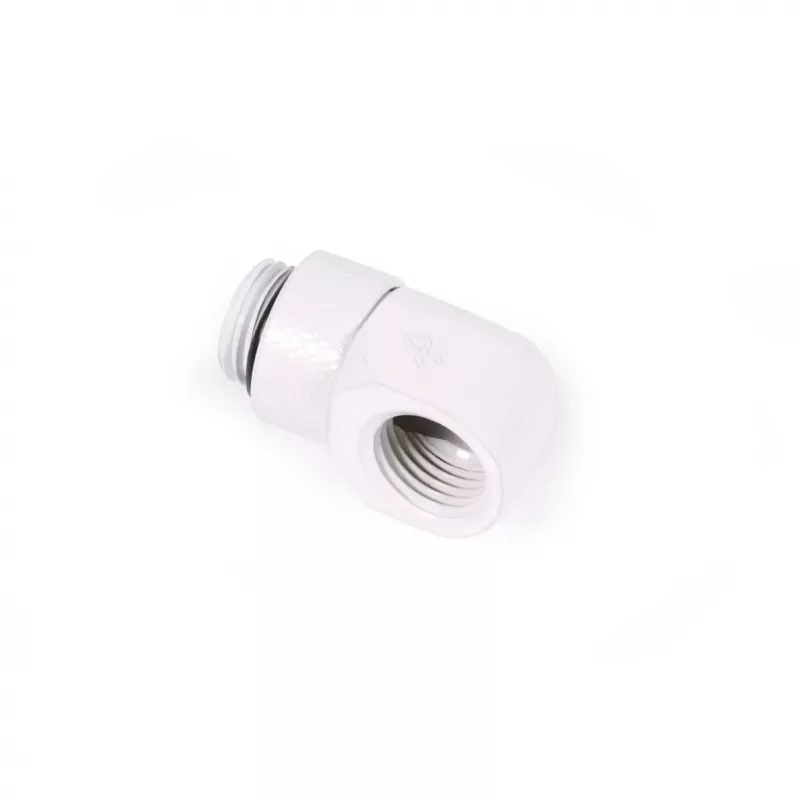

Kompresný L-konektor Alphacool 17619 G1/4 AG na IG otočný, biela

The Alphacool Compression L-Connector 17619 is a rotatable G1/4 adapter designed for custom liquid-cooling loops. It converts an external G1/4 (male/AG) thread to an internal G1/4 (female/IG) thread while providing a 90-degree L-shaped angle to reduce strain on tubing and save space inside compact PC cases. The connector has a white finish intended to match visible builds and integrates a rotatable joint to simplify alignment during installation and routing.

Advantages

This L-Connector offers a compact, space-saving solution for changing flow direction without bending tubing sharply. The rotatable joint allows final orientation adjustments after tightening, reducing the need to over-rotate fittings or twist tubing. The white finish provides a neutral and consistent look for visible areas of a cooling loop while maintaining the functional characteristics of a metal compression fitting.

Suitable for

• Custom PC water-cooling loops where space is limited and a 90° turn is required
• Visible builds that require white or light-colored fittings for aesthetic consistency
• Connections between radiator, pump, reservoir, or block with G1/4 threads

Key specifications

• Thread type: converts G1/4 external (male/AG) to G1/4 internal (female/IG)
• Form factor: 90-degree L-shaped connector
• Rotatable joint for post-installation orientation
• Finish color: white

How to use

Hand-start the fitting into the target G1/4 female thread to ensure correct engagement, then tighten securely with the appropriate tool while avoiding excessive force. Install corresponding G1/4 male fittings or tubing with compatible compression fittings into the internal thread. After initial tightening, rotate the connector to the desired orientation using the rotatable joint, then perform a pressure or leak test on the loop according to standard liquid-cooling procedures before powering the system.

Recommendations

Use compatible G1/4 compression fittings and ensure all mating surfaces are clean before assembly. When working in tight cases, orient the fitting using the rotatable joint before final torque is applied, and always perform a thorough leak test after installation.
