Konektor káblov DeLOCK 66713 D-Sub HD 26 pin čierny strieborný

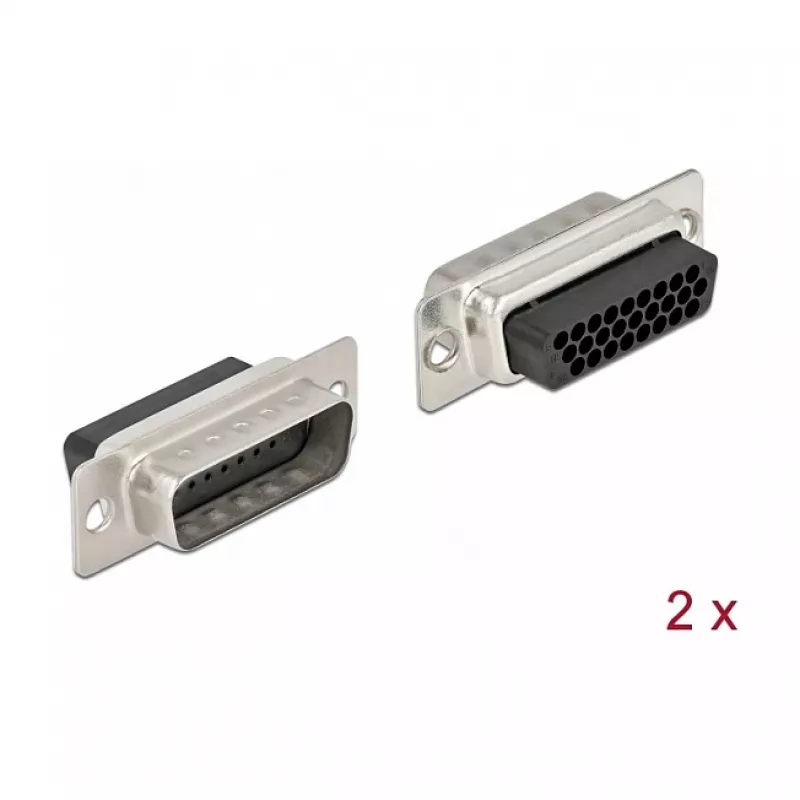

The DeLOCK 66713 D-Sub HD 26 pin wire connector provides a compact, reliable connection point for electronic devices that require a high-density D-Sub interface. Featuring a female connector gender and a two-tone black and silver appearance, this connector is designed for applications where space-saving and stable signal contact are important. The small form factor with dimensions of 17.5 mm (width) × 39.1 mm (depth) × 12.5 mm (height) makes it suitable for integration into enclosures, panels, or custom harnesses. Supplied as a single piece in a polybag and manufactured to standard mechanical tolerances, it serves as a practical component in cable interface and gender adapter applications.

Advantages

The connector combines a high-density 26-pin layout with a compact housing that reduces space requirements while maintaining reliable contact alignment. Its female contact configuration simplifies mating with corresponding male D-Sub HD connectors. The black and silver finish provides clear visual differentiation and a neutral aesthetic suitable for industrial and consumer equipment. Lightweight construction and standardized dimensions make the connector easy to install and integrate into existing wiring systems.

Suitable for

• Connecting high-density D-Sub signals in compact electronic devices
• Panel-mounted or chassis-mounted cable terminations in control equipment
• Custom cable assemblies and repair of gender adapters
• Prototyping and small-scale production of electronic interfaces

Key specifications

• Connector type: D-Sub HD, female
• Number of pins: 26
• Housing colour: black and silver
• Width: 17.5 mm
• Depth: 39.1 mm
• Height: 12.5 mm
• Packaging: single piece in polybag
• Country of manufacture: China

How to use

Prepare the mating cable or PCB connector according to the required wiring diagram and ensure power is removed from all equipment before making connections. Align the female D-Sub HD connector with its mating male counterpart and insert gently until the contacts engage. If the connector is to be secured in a panel or housing, use the appropriate mounting hardware and verify mechanical stability. After installation, perform continuity and signal tests to confirm correct pin assignments and reliable electrical contact.
