Konektor ShiverPeaks 53020 5-pólový maximálna konektivita

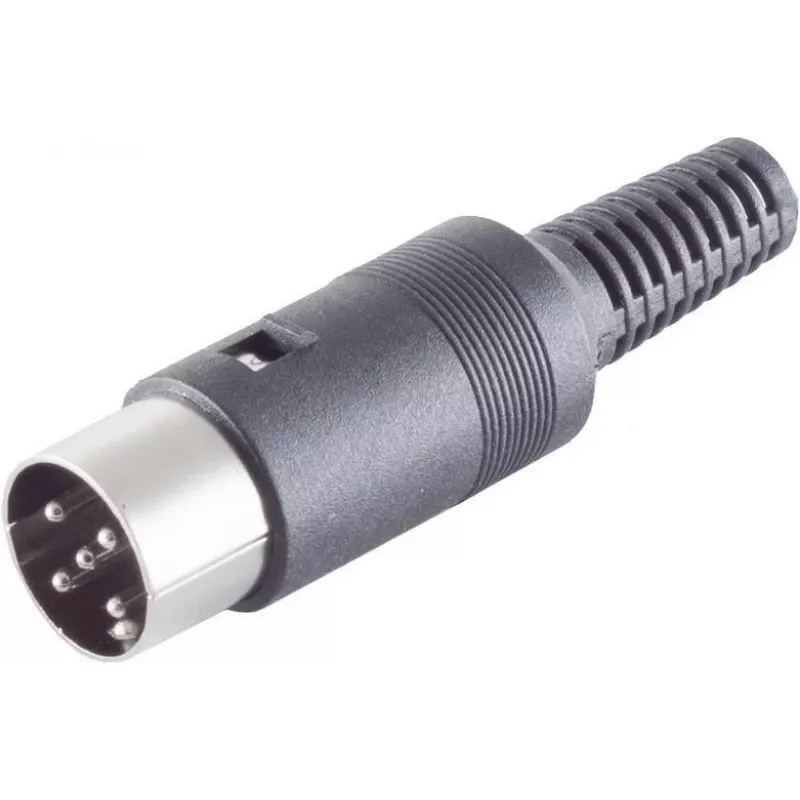

ShiverPeaks 53020 is a 5-pin connector plug designed to provide a compact and reliable interface for electrical and low-voltage signal connections. Intended for panel or cable assemblies, this connector supports up to five conductors in a single housing to simplify wiring runs and reduce space requirements in control cabinets, audio equipment, and industrial installations.

Advantages

The connector plug offers a secure multi-contact connection with a compact footprint suitable for confined mounting areas. It provides consistent contact alignment for reliable mating, helping to reduce signal interruptions and contact wear. The product is compatible with common cable harness practices and intended for repeated mating cycles in control and equipment environments.

Suitable for

• Industrial control panels and automation systems
• Panel-to-harness and cable-to-cable connections
• Audio and low-voltage signal routing
• Machine and equipment wiring where space is limited

Key specifications

• Contact count: 5 conductors
• Function: electrical and low-voltage signal connections
• Form factor: compact multi-pin plug for panel or cable mounting
• Intended use: repeated mating cycles in equipment and control applications

How to use

Prepare cables by stripping insulation to the recommended length for the contact terminals and terminate conductors according to the connector’s contact type (crimp, solder, or screw, as applicable). Align the plug with the mating receptacle and insert until the connector seats fully to ensure correct contact engagement. Mount the plug in a panel cutout or secure it to a cable assembly as required by the installation. Verify wiring continuity and correct pin assignment before energizing the circuit.

Recommendations

Use appropriate wire gauges and termination methods to match the connector’s contact design, avoid over-torque on mounting hardware, and protect the assembly from mechanical strain and moisture where applicable. Test connections after installation to confirm signal integrity and proper operation.
