Konektor vodičov DeLOCK 66707 D-Sub HD 44 pin čierny strieborný

The DeLOCK 66707 D-Sub HD 44 Pin wire connector is a compact male connector designed for soldering applications. Finished in black and silver, it provides 44 soldering pins in a high-density D-Sub shell with overall dimensions of approximately 12.5 mm width, 53 mm depth and 11 mm height. Supplied as a pack of two, this component is suited to custom cable assemblies, PCB terminations and repair work where a compact high-density D-Sub connection is required.

Advantages

The connector combines a high-density 44-pin layout with a compact form factor to save space in enclosures and cable runs. Its metal-shelled interface offers mechanical stability and straightforward soldering of individual conductors or PCB pads. The two-piece pack allows for paired connections or spare parts storage, and the black-and-silver finish provides easy visual identification in mixed assemblies.

Suitable for

• Cable-to-board soldered connections with D-Sub HD 44 pin requirement
• Custom cable assemblies and adapter cables
• Repair and replacement of equipment using 44-pin D-Sub HD interfaces
• Prototyping and small series electronic projects

Key specifications

• Connector type: D-Sub HD (High Density) 44-pin, male
• Contact termination: 44 soldering pins suitable for wire or PCB soldering

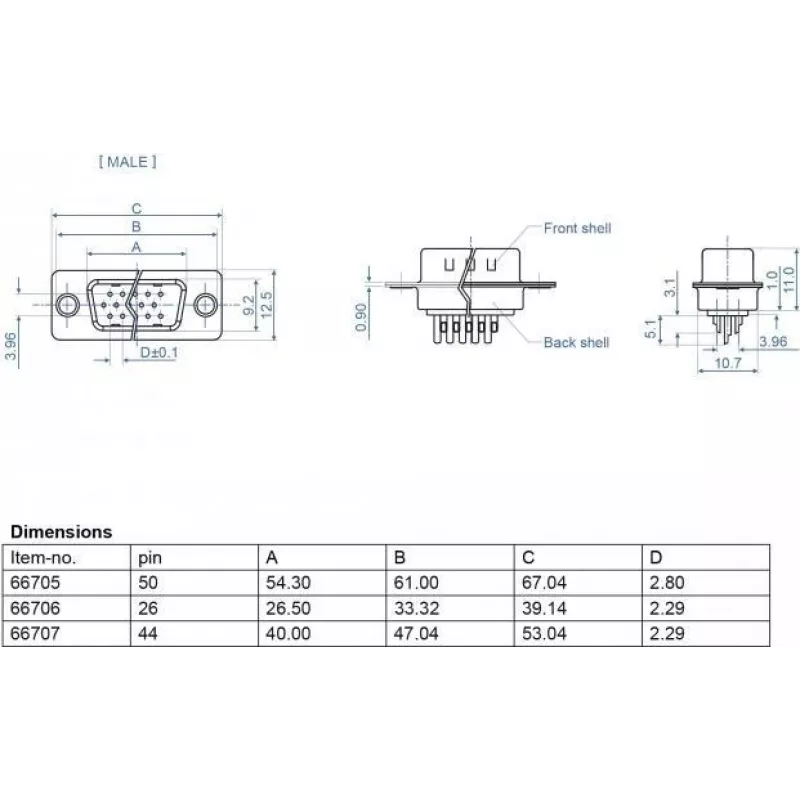

• Dimensions (approx.): 12.5 mm (width) × 53 mm (depth) × 11 mm (height)
• Finish: black housing with silver metal shell
• Pack quantity: 2 pieces
• Manufacturing origin: China

How to use

Prepare wires or PCB pads for soldering by stripping insulation to the appropriate length and tinning conductor ends as required. Position each wire or pad to its corresponding soldering pin and apply solder with a temperature-controlled iron, ensuring secure wetting and avoiding cold joints. After soldering, inspect all joints visually and, if available, use continuity tests to verify correct pin connections. Mount the connector in its intended enclosure or cable assembly and secure any housing or strain-relief elements according to the application.

Ieteicamais lietošanas veids

For reliable electrical connections, use appropriately sized solder and maintain proper soldering technique: clean pads and pins, use flux as needed, and avoid excessive heat on any single joint. Store unused connectors in a dry environment to prevent corrosion of contacts.
