Konektor Voltcraft DO-507 pre Dell notebook NPS-90A – náhradný DC napájací konektor

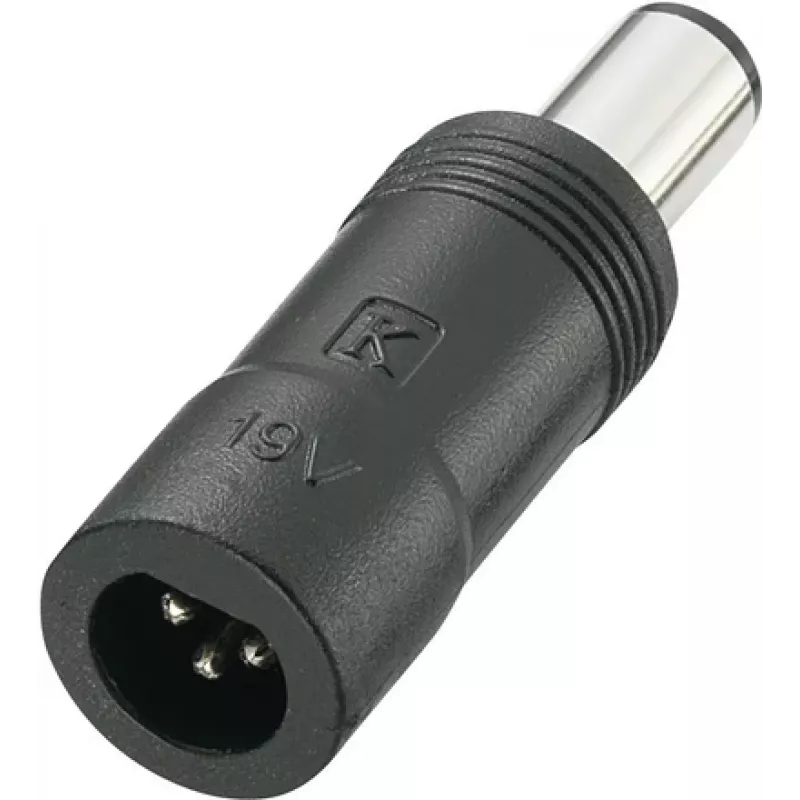

Voltcraft DO-507 is a replacement DC power connector designed to restore power delivery on Dell notebooks that use the NPS-90A power input. This direct connector spare part fits into the device's existing power port assembly and is intended for repairs when the original connector is damaged, loose, or shows intermittent electrical contact. The component is produced by Voltcraft and is intended for use as a functional replacement to avoid full adapter or motherboard replacement, enabling targeted repair and maintenance.

Advantages

The replacement connector provides a cost-effective option for repairing power input issues without replacing the entire power adapter or mainboard. It maintains the original power pathway and electrical contact design, aiming to restore reliable DC power transfer. The part supports on-site repairs and reduces downtime by allowing technicians or experienced users to replace only the worn connector. Material and contact quality are intended to meet requirements for consistent connection and repeated insertion cycles.

Suitable for

• Repairing Dell notebooks that accept the NPS-90A DC input.
• Service centers performing power jack replacements and board-level repairs.
• Technicians and experienced users performing targeted hardware maintenance.

Key specifications

• Type: DC power input connector (replacement part)
• Compatibility: designed for Dell notebook models using NPS-90A power input
• Function: restores DC power contact and mechanical insertion fit
• Construction: metal contact pins with insulating housing for board mounting
• Suitable usage: repair and maintenance, board-level replacement

How to use

Replace the damaged power connector by opening the notebook according to the manufacturer's service instructions, disconnecting the battery and power source, and desoldering or removing the faulty jack from the motherboard. Install the Voltcraft DO-507 connector in the same orientation as the original part and secure it to the board using the appropriate soldering or fastening method. Reassemble the device and test power delivery with a compatible NPS-90A adapter to confirm reliable contact and charging function.

Recommendations

Before attempting replacement, ensure you have the correct technical documentation and the necessary tools for safe disassembly and soldering. Disconnect all power sources and ground yourself to avoid electrostatic damage. If uncertain about board-level repairs, consult a qualified technician or service center to avoid accidental damage to the motherboard.
