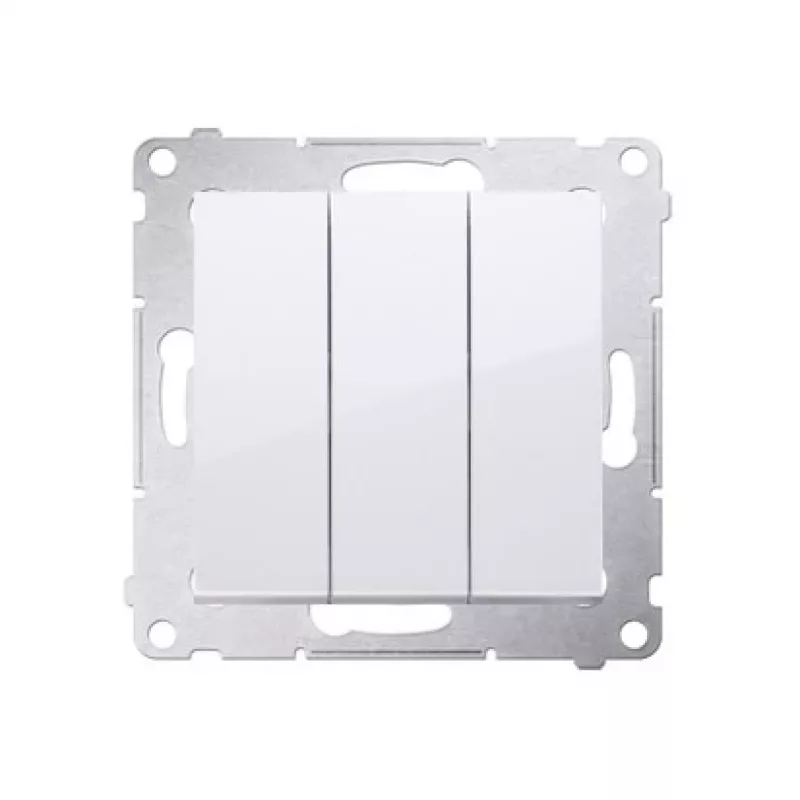

KONTAK-SIMON Simon 54 biely spínací modul 10AX 250V s pružinovými svorkami

Single switch module for reliable control of lighting and electrical circuits in residential and commercial installations. Its spring terminal technology ensures secure, tool-friendly wiring for cables up to 2.5 mm² (or a single 4 mm² conductor), while the rocker mechanism delivers crisp tactile feedback.

Advantages

Spring terminals enable fast, screwless installation, saving time on site. The compact one-module design allows flexible configuration in multi-gang setups, and the flush-mounted profile integrates seamlessly with Simon 54 frames and cover plates for a clean finish.

Suitable for

• Residential lighting circuits
• Commercial electrical installations
• Retrofitting or upgrading Simon 54 systems
• New builds requiring flush-mounted switch modules

Key specifications

• Brand: KONTAK-SIMON
• Series: Simon 54
• Product type: Single switch module
• Colour: White
• Rated current: 10 AX
• Rated voltage: 250 V AC
• Connection type: Spring terminals
• Number of terminals: 3
• Mounting: Flush-mounted
• Module size: 1-module
• Material: Thermoplastic (PC/ABS)
• IP rating: IP20
• Operating temperature: -5 to +40 °C
• Humidity: 10-90% RH (non-condensing)
• Certification: CE
• Terminal capacity: 2 x 2.5 mm² or 1 x 4 mm²
• Installation depth: approx. 30 mm
• Compatibility: Simon 54 frames and cover plates

Recommendations

This switch module is designed for use within the Simon 54 system. Pair it with matching frames and cover plates from the same series to achieve a consistent aesthetic and ensure proper fit.
