Konvertorový chassis PLANET MC-1500R 15 slotov 19 palcov

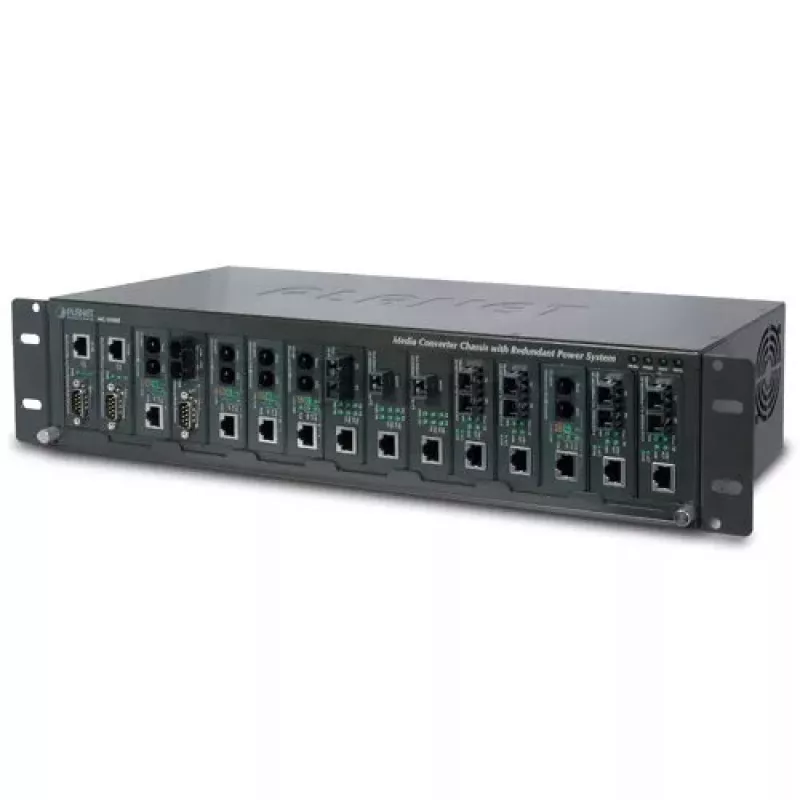

The PLANET MC-1500R is a 19" 15-slot converter chassis that consolidates multiple media converters in a single rack-mountable unit. It supports a variety of PLANET media converter modules for Ethernet, Fast Ethernet, Gigabit Ethernet and VDSL2 applications, enabling up to 15 converters to be installed in a compact 19" housing (438 mm width, 200 mm depth, 103 mm height). The chassis is designed for structured fiber-optic wiring and simplified maintenance while supporting data rates of 1000 and 100 Mbit/s.

Advantages

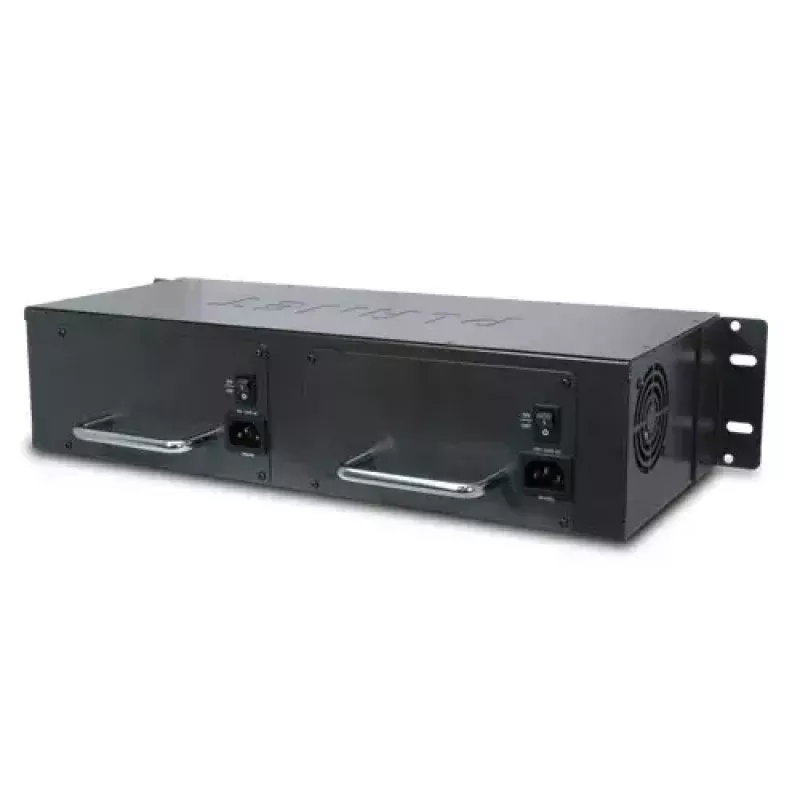

The chassis provides high-density installation to save rack space and centralize media conversion. It includes both a 100–240V AC power supply and a -48V DC power supply in the package, plus an extra slot for an optional hot-swappable redundant power system (RPS) to increase uptime. Individual power per slot allows hot-swapping of converter modules without interrupting operation of other slots.

Suitable for

• Centralized deployment of multiple PLANET media converters in data centers and wiring closets
• Environments requiring mixed Fast Ethernet and Gigabit Ethernet media conversion
• Network installations where space-saving 19" rack mounting is needed
• Applications that benefit from redundant power and hot-swappable modules

Key specifications

• Form factor: 19" rack-mount chassis, 15 slots
• Supported converters: PLANET Ethernet, Fast Ethernet, Gigabit Ethernet, VDSL2 series
• Data rates: 1000 and 100 Mbit/s
• Power: includes 100–240V AC and -48V DC power supplies; spare slot for optional RPS; per-slot independent power
• Dimensions: 438 mm (W) x 200 mm (D) x 103 mm (H)
• Weight: 4.3 kg
• Certifications: FCC Class A, CE
• Color: Black

How to use

Mount the MC-1500R in a standard 19" rack and install PLANET media converter modules into the available bays. Connect the provided AC and -48V DC power supplies to the chassis; an additional optional redundant power module may be installed in the spare power slot for higher availability. Insert or remove converter modules while the chassis is powered as needed — each slot has independent power so hot-swapping modules does not interrupt other installed converters. Route fiber and copper connections to the installed converter modules per the converter module instructions.

Recommendations

Install the optional hot-swappable RPS module in environments where continuous operation is required. Ensure proper ventilation in the rack and follow grounding and cabling best practices to maintain signal integrity and reliable operation.
