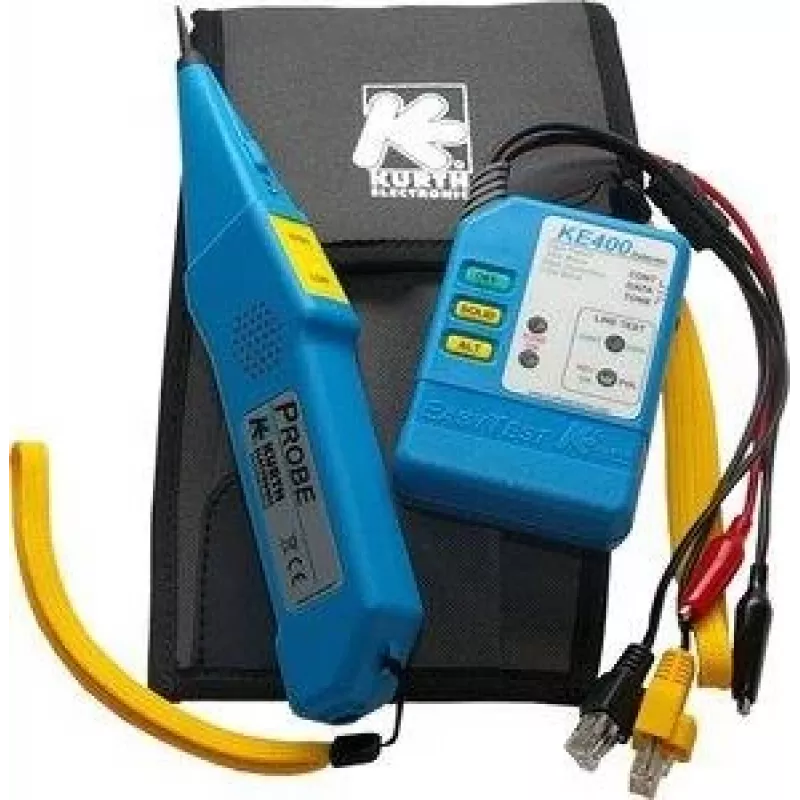

Kurth IT EasyTest a Probe sada testera sieťových káblov (modrá) 0.49563

This Kurth IT EasyTest and Probe set combines a main tester unit with an inductive probe and remote terminator, allowing you to verify wiremaps and trace cables across RJ45, RJ11/RJ12, and coaxial connections without swapping tools. The blue ABS housing keeps the kit lightweight and durable for daily field work.

Highlights

• Tests RJ45 (UTP/STP), RJ11/RJ12 telephone, and coaxial (BNC/F-Type) cables
• Wiremap verification detects open, short, cross, and split pairs up to 300 meters
• Built-in tone generator with multiple selectable tones for cable tracing
• Inductive probe with adjustable sensitivity for precise wire identification
• LED indicators show wiremap status and test results at a glance
• Auto power off and overvoltage protection for safe operation

In daily use

The EasyTest main unit sends test signals through the cable while the remote terminator confirms the wiremap. For tracing, switch to tone mode and use the probe to follow the signal along cable runs, even in bundles. Both units run on standard 9V block batteries, so replacements are easy to find on site.

Full specifications

• Product type: Network & Cable Tester Set
• Included components: EasyTest main unit, inductive probe, remote terminator
• Supported cable types: RJ45 (UTP/STP), RJ11/RJ12, coaxial (BNC/F-Type)
• Test functions: Wiremap (open, short, cross, split pair), continuity, tone generation, cable tracing
• Tone generator: Yes, multiple selectable tones
• Probe type: Inductive with adjustable sensitivity
• Display: LED indicators
• Power source (EasyTest unit): 1x 9V block battery (not included)
• Power source (Probe): 1x 9V block battery (not included)
• Max. cable length for wiremap: 300 m
• Auto power off: Yes
• Port protection: Overvoltage protection
• Operating temperature: 0°C to 50°C
• Storage temperature: -10°C to 60°C
• Housing material: Robust ABS plastic
• Colour: Blue

Final note

A practical tester set for installers and technicians who need reliable wiremap verification and cable tracing in one portable kit.
