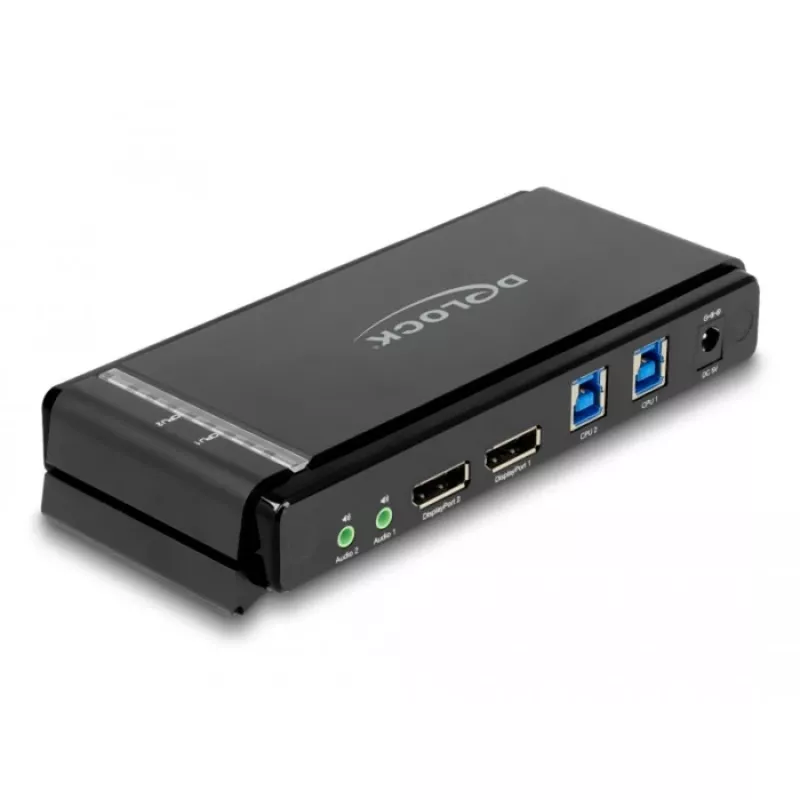

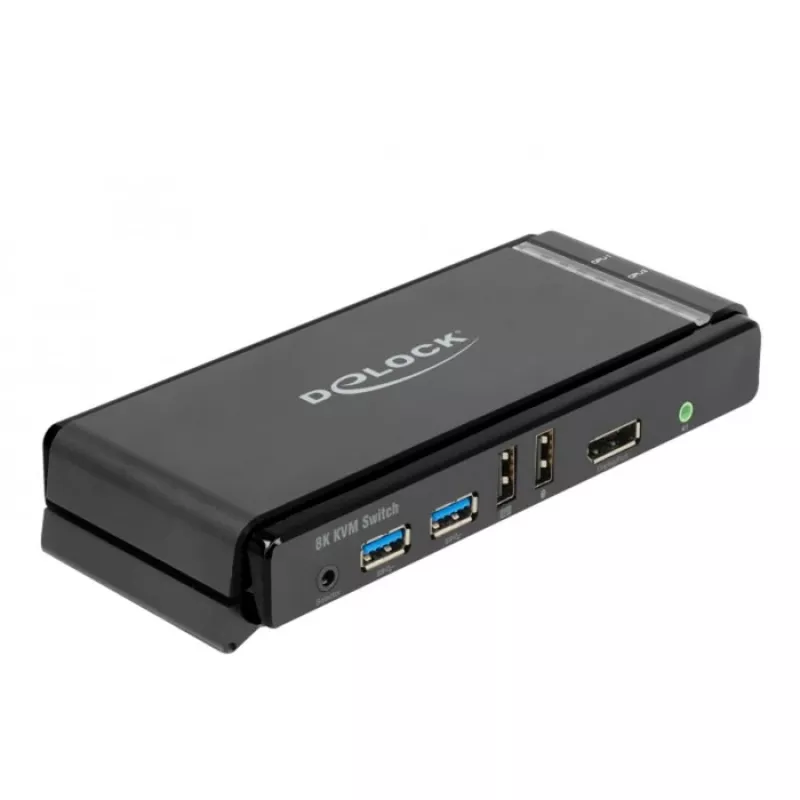

KVM prepínač DeLOCK DisplayPort 1.4 8K 60Hz USB Audio

The DeLOCK KVM Switch DisplayPort 1.4 8K 60Hz USB Audio allows two computers with DisplayPort outputs to be controlled from a single DisplayPort monitor while sharing keyboard, mouse and USB storage devices. The device supports DisplayPort 1.4 with up to 8K resolution at 60 Hz and provides USB ports for peripherals and data. Metal housing and compact design make it suitable for desktop and professional setups. MST (Multi-Stream Transport) is supported to enable multiple-monitor configurations when used with compatible monitors or a powered MST hub.

Advantages

This KVM switch supports high-resolution DisplayPort 1.4 video up to 8K@60Hz and provides both USB 2.0 ports for keyboard and mouse and USB 5 Gbps ports for storage devices. Audio passthrough is included and the unit is housed in a durable metal case. MST support allows expansion to multiple displays with a compatible MST hub or daisy-chain-capable monitors.

Suitable for

• Controlling two desktop PCs or workstations from one DisplayPort monitor
• Setups requiring high-resolution output (up to 8K@60Hz)
• Workstations that need shared USB storage, keyboard, mouse and audio
• Multi-monitor configurations using DisplayPort MST or an MST hub

Key specifications

• Video port type: DisplayPort 1.4
• Maximum resolution: 8K @ 60 Hz (DisplayPort 1.4)
• Number of computers: 2
• Keyboard / Mouse connection: USB (USB 2.0 for peripherals)
• USB data ports: USB 5 Gbps ports for storage devices
• Audio: supported (audio passthrough)
• Product colour: Black
• Housing: metal
• Power: external AC power (wide input range)

How to use

Connect the DisplayPort outputs of the two computers to the KVM switch DisplayPort inputs, then connect the switch output to the DisplayPort monitor. Attach keyboard and mouse to the USB 2.0 ports and any external storage to the USB 5 Gbps ports. Connect the AC power adapter to power the unit. Use the KVM switching control (button or hotkey, depending on model) to toggle control between the two connected computers.

Recommendations

For MST multi-monitor setups, ensure each PC supports DisplayPort MST or use a powered DisplayPort MST hub. If using monitor daisy-chaining, verify the monitors support DisplayPort output chaining. Use high-quality DisplayPort 1.4 cables to maintain 8K@60Hz performance and ensure the AC power adapter is connected for reliable operation.
