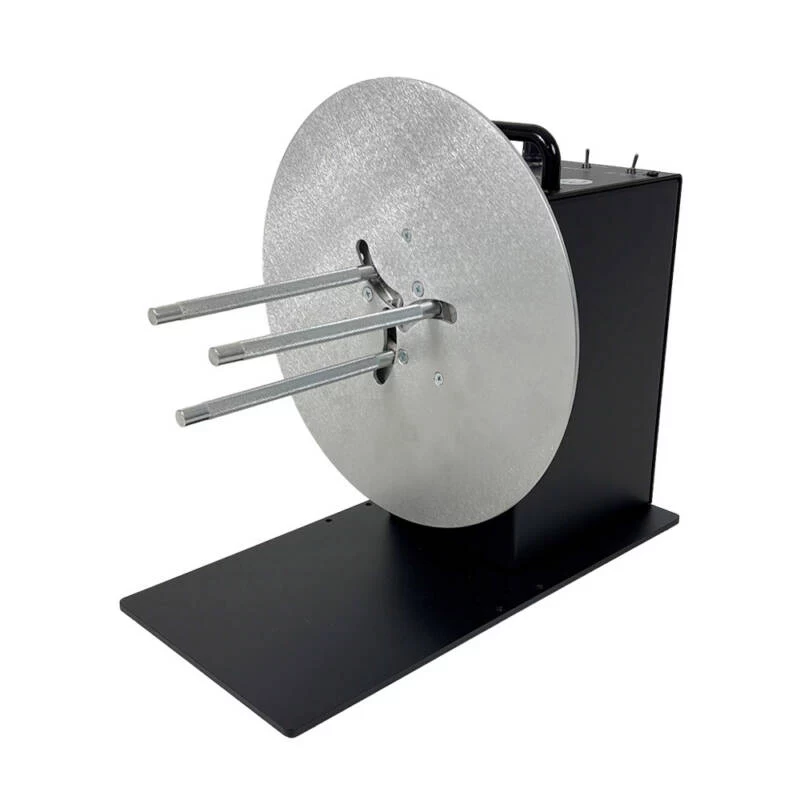

Labelmate CAT-3-ACH - jednotka na navíjanie etikiet - striedavý prúd 230 V - 155 mm (6.1)

Label unwinding and rewinding during high-volume printing can quickly become a manual bottleneck, causing inconsistent tension, misaligned labels, and wasted media. The Labelmate CAT-3-ACH eliminates these issues with a heavy-duty, constant adjustable torque rewinder that automatically handles rolls up to 300 mm in diameter and 155 mm wide, keeping pace with your fastest thermal transfer printers.

Who is it for

This rewinder is built for warehouses, logistics hubs, manufacturing lines, and any operation running continuous label printing. It suits businesses that need reliable, unattended label roll management without constant operator intervention.

Main features

• Heavy-duty DC motor with constant adjustable torque for precise tension control.
• Dancer arm automatically adjusts speed to match printer output, up to 125 cm/sec.
• Selectable rewind direction (inward or outward) for flexible integration.
• Accepts core diameters of 76 mm, with adapters for 25 mm and 38 mm cores.
• Rugged heavy-gauge steel housing for industrial durability.
• Freestanding design compatible with most thermal transfer printers.
• CE and FCC certified for safety and electromagnetic compliance.

Specifications

• Product type: Label rewinder
• Max label width: 155 mm (6.1 in)
• Max roll diameter: 300 mm (12 in)
• Core diameter: 76 mm (3 in) standard, adapters for 25 mm (1 in) and 38 mm (1.5 in)
• Power supply: AC 230 V, 50/60 Hz
• Rewind speed: Up to 125 cm/sec (50 ips)
• Rewind direction: Selectable inward/outward
• Control method: Dancer arm
• Housing material: Heavy-gauge steel
• Operating temperature: 0°C to 40°C (32°F to 104°F)
• Humidity range: 10% to 85% non-condensing
• Certifications: CE, FCC

Tips

Pair the CAT-3-ACH with a label unwinder for a complete automated solution. For best results, set the torque just above the minimum required to avoid label stretching. Regularly inspect the dancer arm for smooth movement and keep the core adapters clean to ensure consistent performance.
