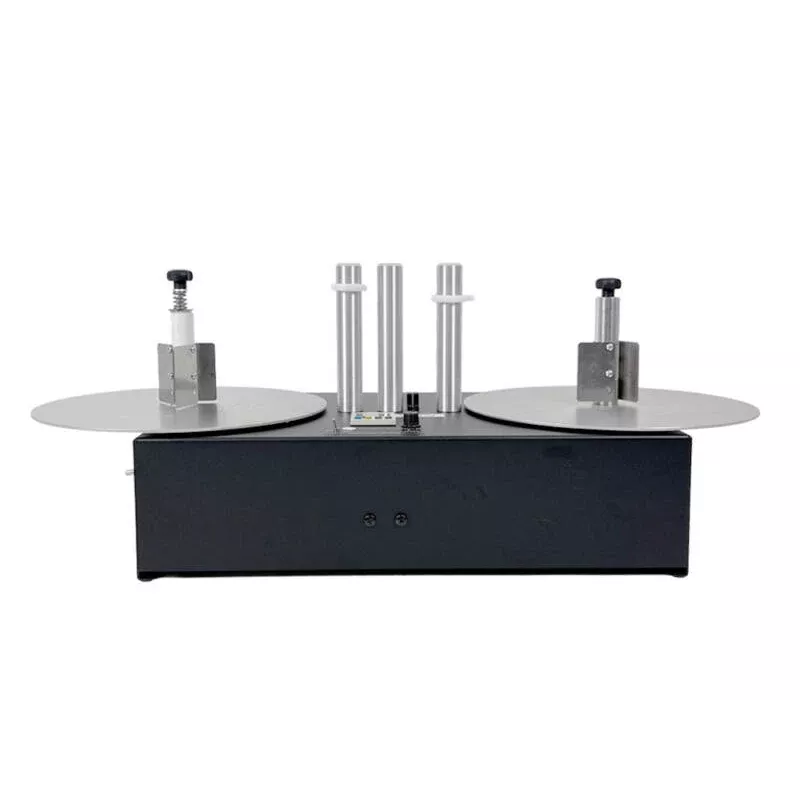

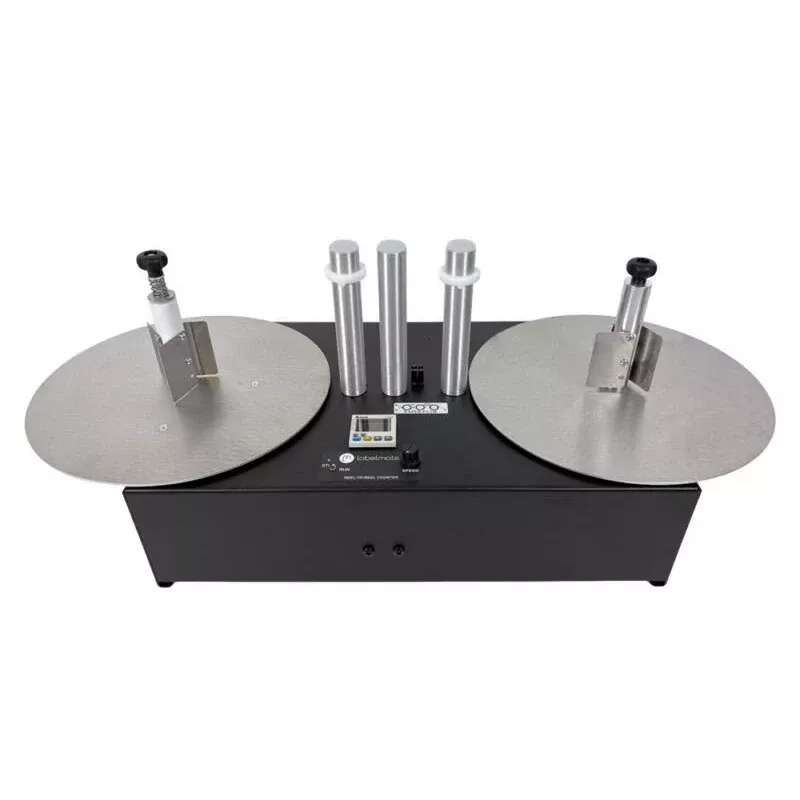

Labelmate RRC-330-STANDARD - počítací systém - striedavý prúd 220-240 V - 152 mm (6 palcov)

The Labelmate RRC-330-STANDARD redefines label counting efficiency with its robust steel construction and high-speed optical sensor, delivering precise counts up to 125 cm/sec for rolls up to 330 mm in diameter. Unlike basic counters, this system offers bi-directional counting and auto-stop at preset counts, making it an indispensable tool for high-volume label, ticket, and tag processing.

Highlights

• Counts labels, tickets, and tags up to 152 mm (6") wide and 330 mm (13") roll diameter
• High-speed optical sensor with counting range up to 999,999 labels
• Bi-directional counting with auto-stop at preset count for batch control
• Compatible with 38 mm (1.5") and 76 mm (3") cores
• Heavy-duty steel housing for industrial durability
• Digital LED display and push-button controls for easy operation
• Manual or automatic operation modes
• Label gap detection ensures accurate counting

In daily use

Place the RRC-330-STANDARD on a tabletop, load your label roll, and set the desired count. The optical sensor detects gaps between labels, counting accurately even at high speeds. The auto-stop feature halts the process when the preset count is reached, preventing overruns. The bi-directional capability allows counting in either direction, ideal for rewinding or verifying counts. The sturdy steel construction withstands daily industrial use, while the simple push-button interface minimizes training time.

Full specifications

• Product Type: Label Roll Counter System
• Max Media Width: 152 mm (6 inches)
• Max Roll Diameter: 330 mm (13 inches)
• Core Size Compatibility: 38 mm (1.5 inches), 76 mm (3 inches)
• Power Supply: AC 220-240 V
• Counting Method: Optical Sensor
• Display Type: Digital LED Display
• Counting Range: 0 - 999,999 labels
• Counting Direction: Bi-directional
• Max Counting Speed: 125 cm/sec (50 ips)
• Features: Auto-stop at preset count, Label gap detection
• Housing Material: Heavy-duty steel
• Operation: Manual or Automatic
• Control Interface: Push-button controls
• Application: Counting labels, tickets, tags
• Mounting Type: Tabletop

Final note

The Labelmate RRC-330-STANDARD is a reliable, high-performance counting solution for warehouses, print shops, and manufacturing facilities. Its precision and durability ensure accurate inventory management and quality control, making it a valuable addition to any production line.
