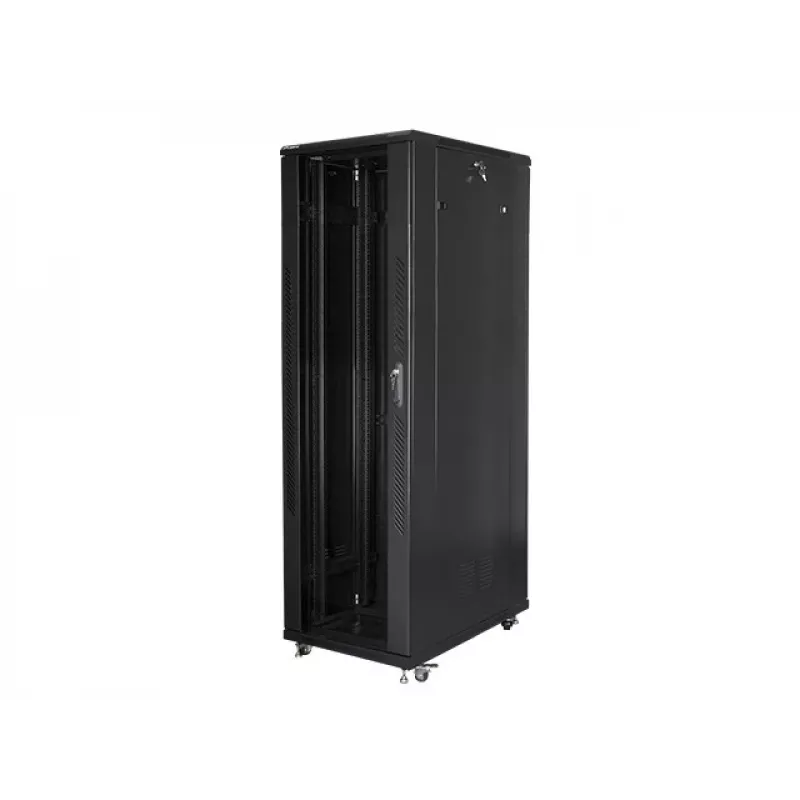

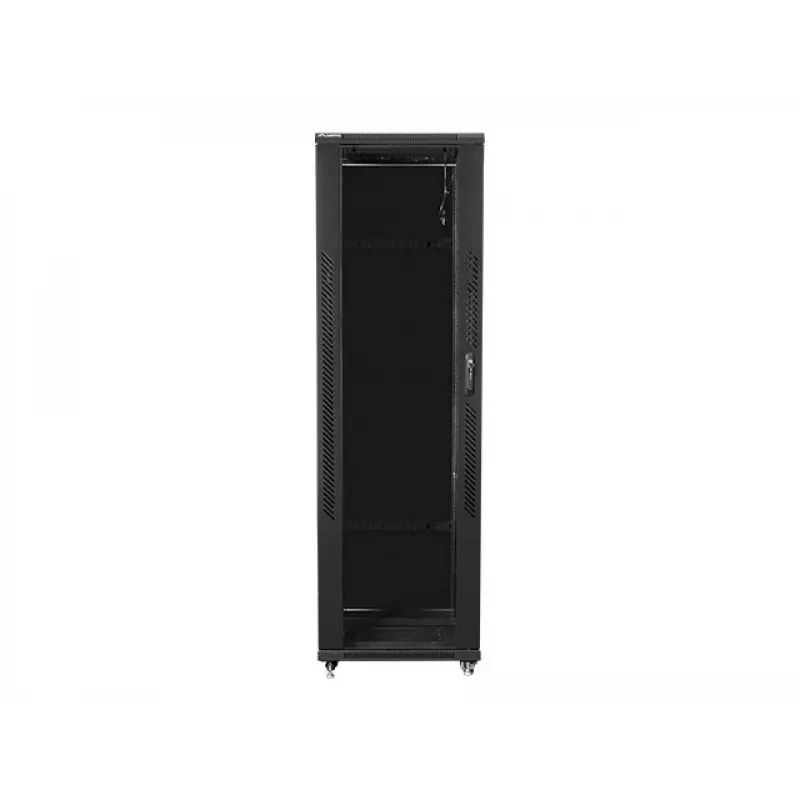

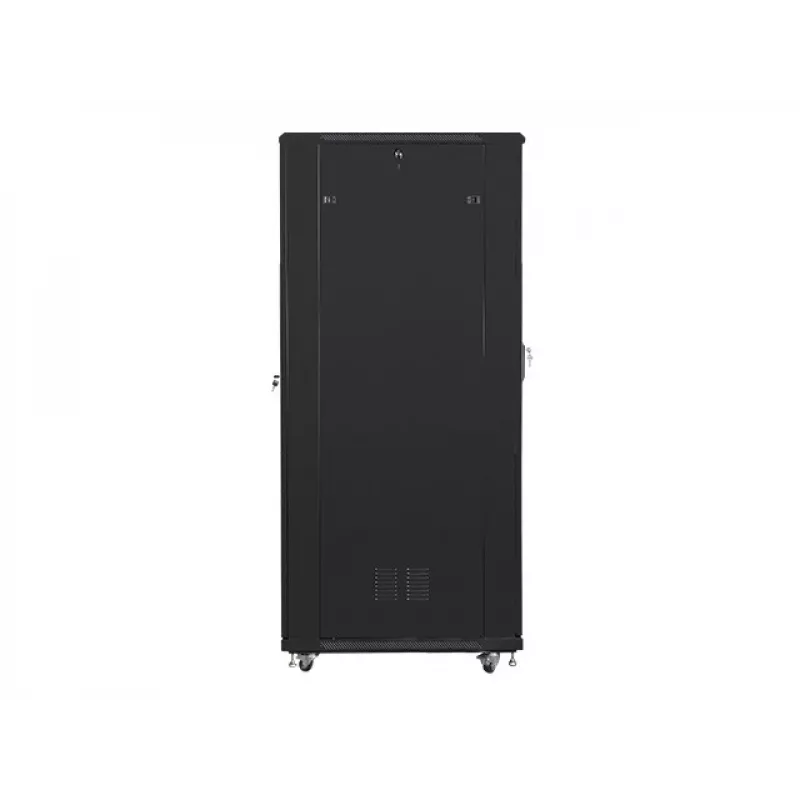

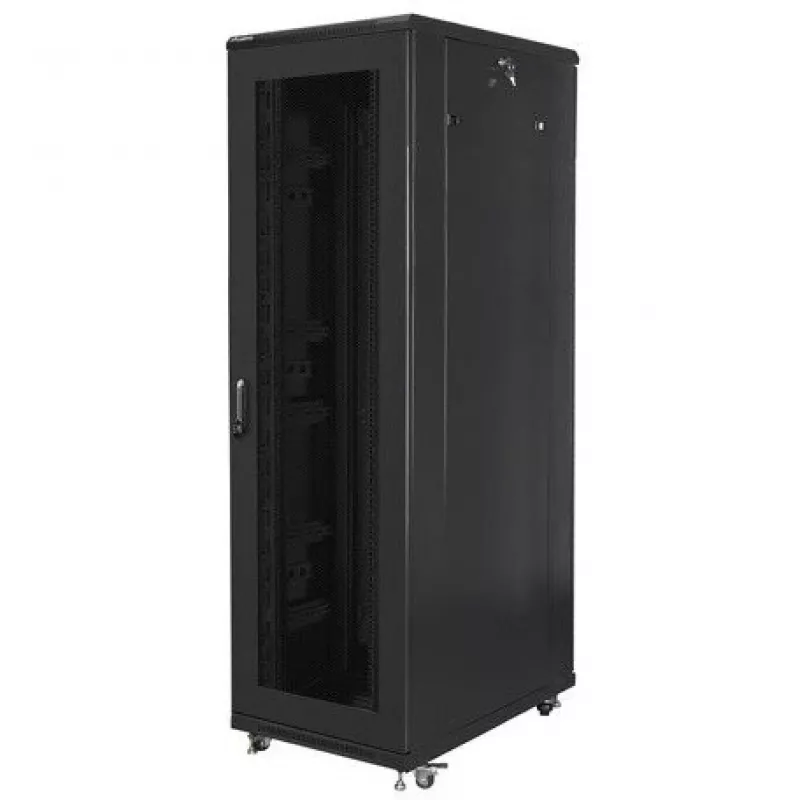

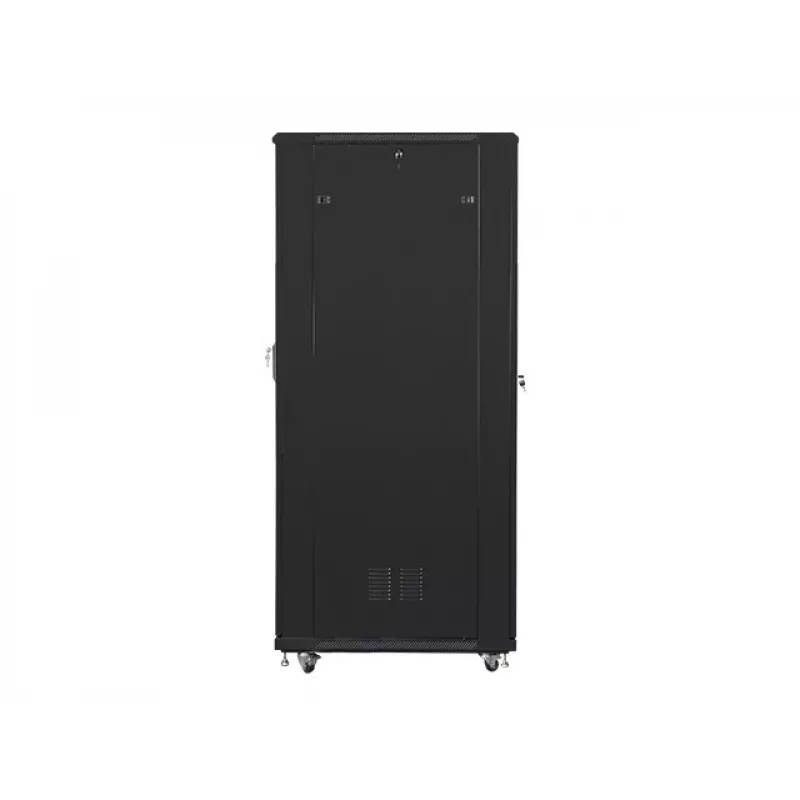

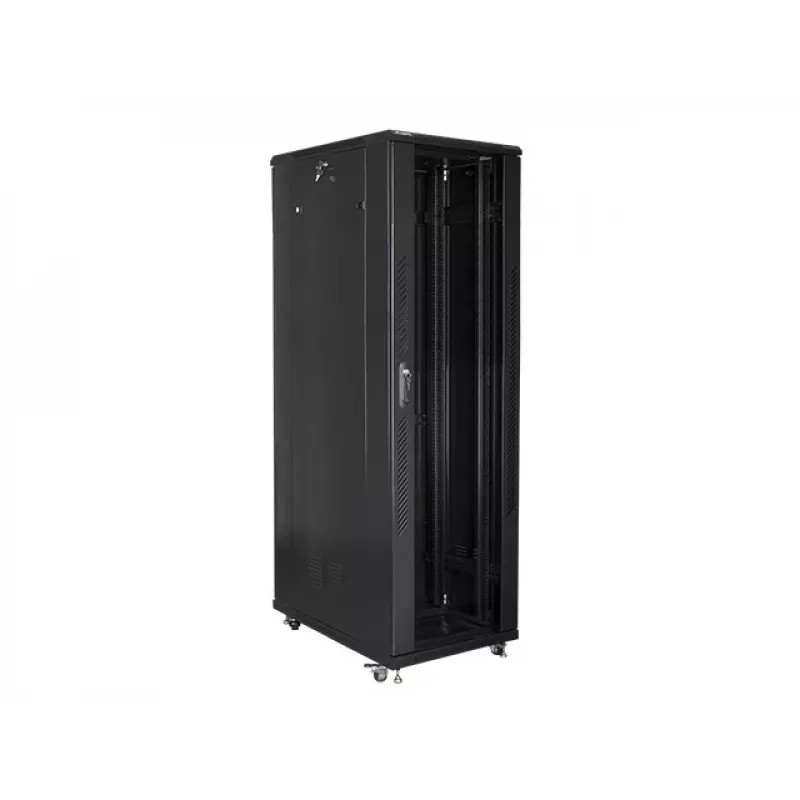

Lanberg | 19-palcová voľne stojaca rack skriňa 42U/800x1000 (Flat Pack) | FF01-8042-12B | čierna

Lanberg free standing cabinet FF01-8042-12B is a 19" rack enclosure designed for mounting networking and server equipment with a maximum load capacity of 800 kg. It is suitable for networks, server rooms, small and medium businesses, and data centers where additional cabinet space is required. The cabinet is also compatible with low-voltage systems such as cable TV distribution, alarm and fire protection, access control, CCTV and IP surveillance installations.

Advantages

The cabinet is constructed from high-grade cold-rolled steel for durable structure and precise workmanship. Vertical mounting rails have full depth adjustability to accommodate various equipment depths. A tempered glass front door with a lock is supplied and can be fitted to either the right or left side. Side panels are removable and lockable, while solid steel rear doors include a lock. Top and bottom cable entry panels (blank panels included) enable organized cable routing. A fan tray with four 230 V fans provides ventilation, and the package contains rail mounting accessories, M6 cage nuts and additional blank entry panels. The unit ships as four flat packs for easier transport and requires self-assembly.

Key specifications

• Form factor: 19" free standing cabinet
• Model: FF01-8042-12B
• Load capacity: up to 800 kg
• Material: cold-rolled steel
• Front door: tempered glass with lock, reversible (right/left)
• Side panels: removable, each with lock
• Rear door: solid steel with lock
• Cable entry: top and bottom blank panels included
• Cooling: fan tray with 4 × 230 V fans
• Accessories: rail mounts, M6 cage nuts, blank entry panels
• Delivery: 4 flat packs, self-assembly

How to use

Assemble the cabinet following the included instructions, attach vertical mounting rails and secure them to the required depth. Install equipment into the 19" rail units using the provided M6 cage nuts and rail mounts. Route cables through the top or bottom entry panels and replace blank panels as needed. Fit the tempered glass front door to the desired side and lock side panels and rear door after completing installation. Connect the fan tray to a 230 V supply to ensure active ventilation.

Recommendations

For safe operation, distribute equipment weight evenly across the cabinet and respect the 800 kg maximum load. Plan cable layout before mounting devices to maintain airflow and accessibility. Ensure electrical connections for fans and powered equipment comply with local standards; consider professional installation for complex low-voltage or surveillance systems.
