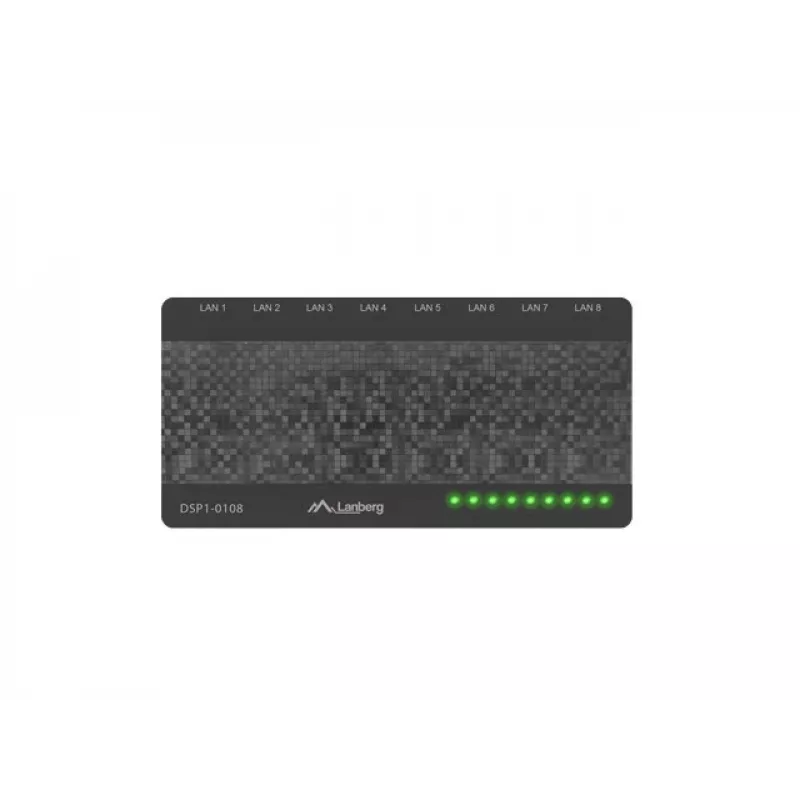

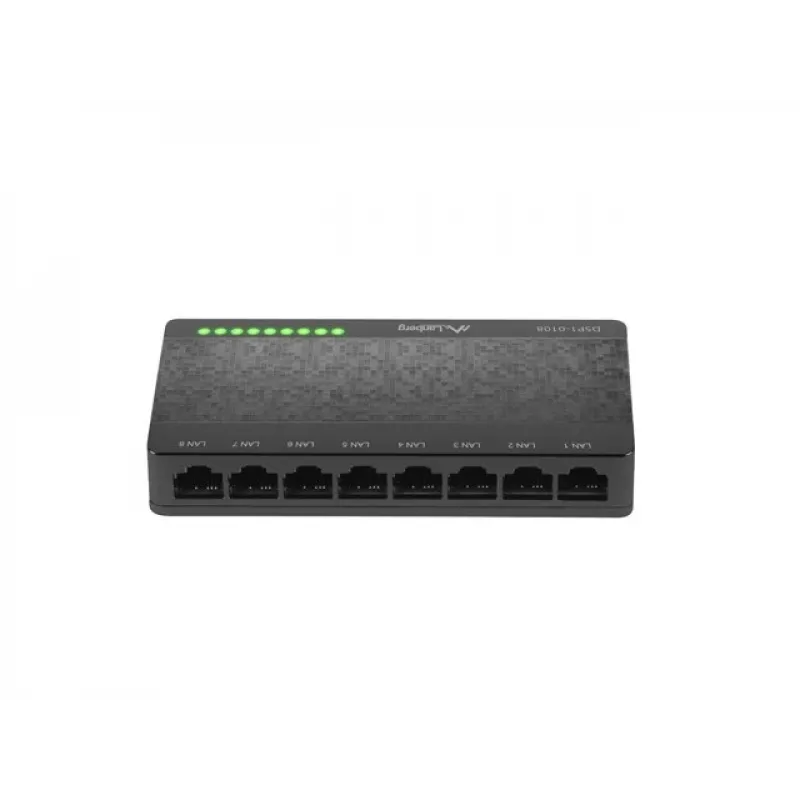

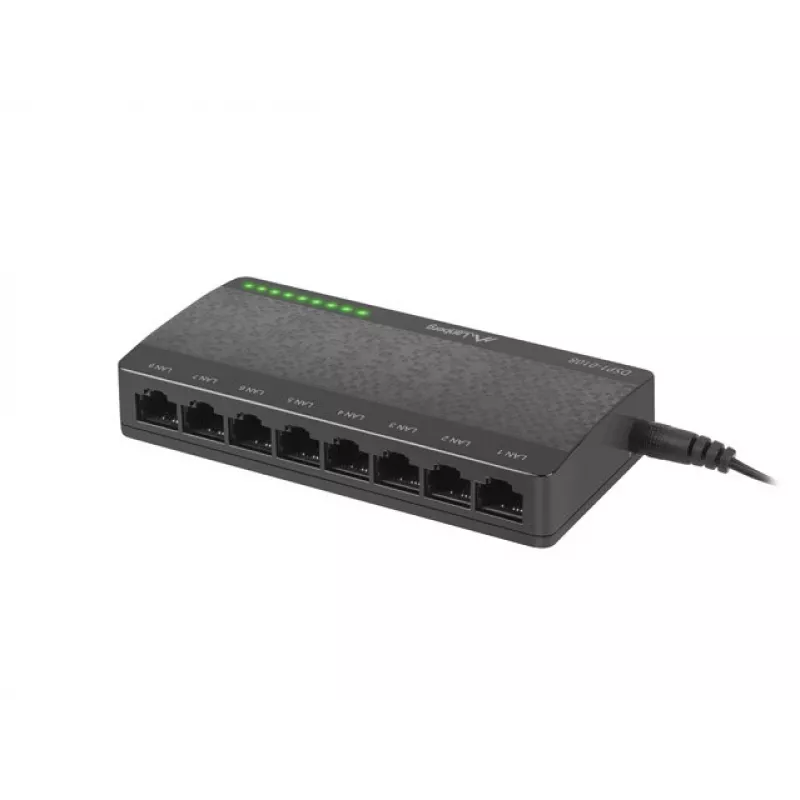

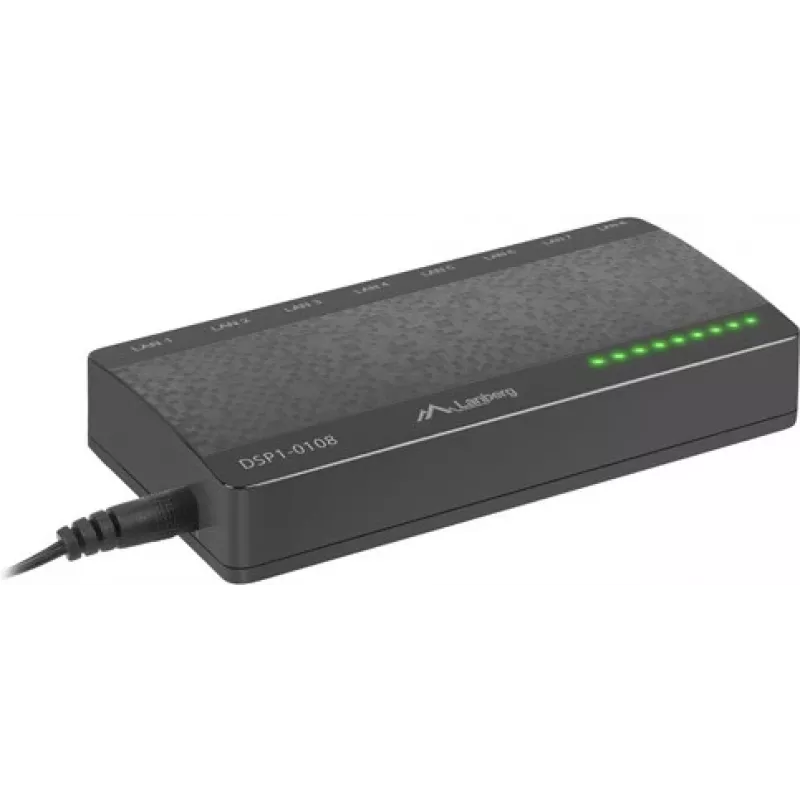

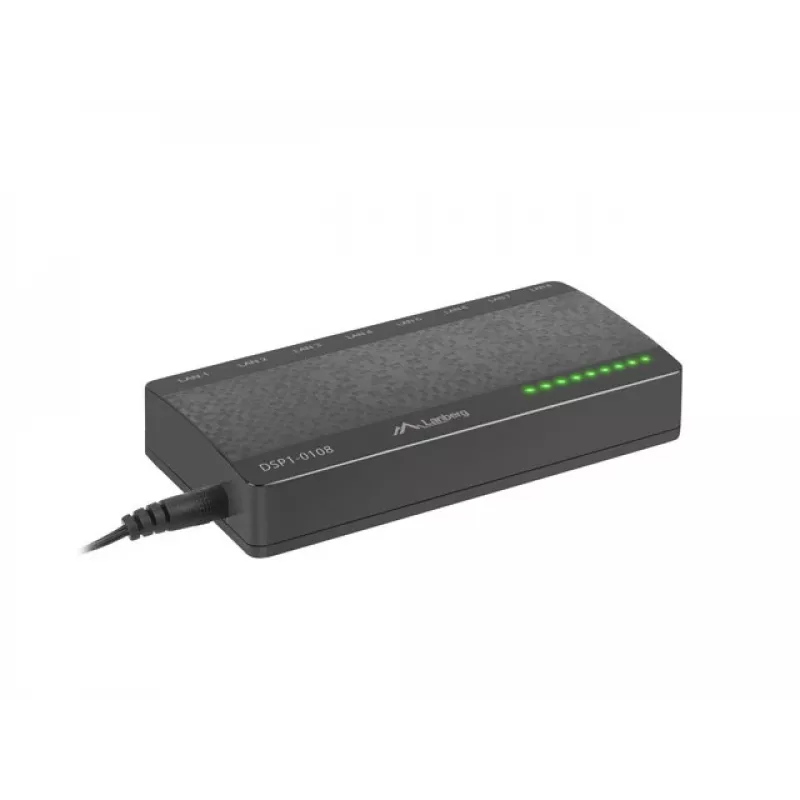

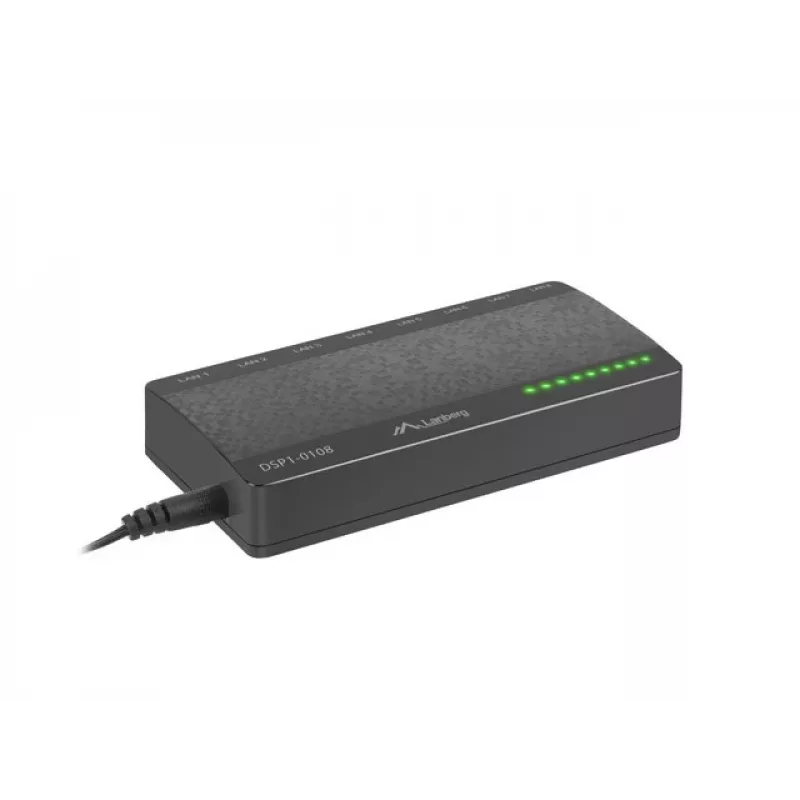

LANBERG DSP1-0108 Lanberg Switch DSP1-0108 8-Port 100MB/S Desktop

Lanberg DSP1-0108 is a compact unmanaged desktop switch with eight Fast Ethernet 10/100 Mbps RJ-45 ports. The device offers Plug & Play operation, automatic connection negotiation and MDI/MDIX support, making it suitable for simple network expansion in home or small office environments. The switch is passively cooled and housed in a slim black case for quiet, unobtrusive operation.

Advantages

The switch provides eight 10/100 Mbps RJ-45 ports with automatic detection of cable type (solid or stranded) and supports Half-Duplex and Full-Duplex modes. A MAC address table and a switching capacity of 1.6 Gbit/s enable reliable packet forwarding without manual configuration. Passive cooling ensures silent operation while the compact size reduces space requirements.

Suitable for

• Home networks
• SOHO (Small Office/Home Office)
• Small business networks (SMB)
• Simple network expansion for additional wired devices

Key specifications

• Ports: 8 x RJ-45 Fast Ethernet (10/100 Mbps)
• Switching capacity: 1.6 Gbit/s
• Standards: IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
• MAC address table: 1000 entries
• Power input: 5V DC
• Cooling: passive (fanless)
• Color: Black
• Weight: 0.13 kg

How to use

Place the Lanberg DSP1-0108 on a flat surface near power and network outlets. Connect each device to the RJ-45 ports using standard Ethernet cables; the switch will automatically negotiate speed and duplex settings. Plug in the external 5V DC power adapter to power the switch. No configuration is required—devices connected to the ports will be able to communicate through the switch immediately.

Recommendations

Install the switch in a well-ventilated area free from direct heat sources. Use quality Cat5e or Cat6 cables for best 100 Mbps performance and ensure the power adapter matches the specified 5V DC input to avoid damage.
