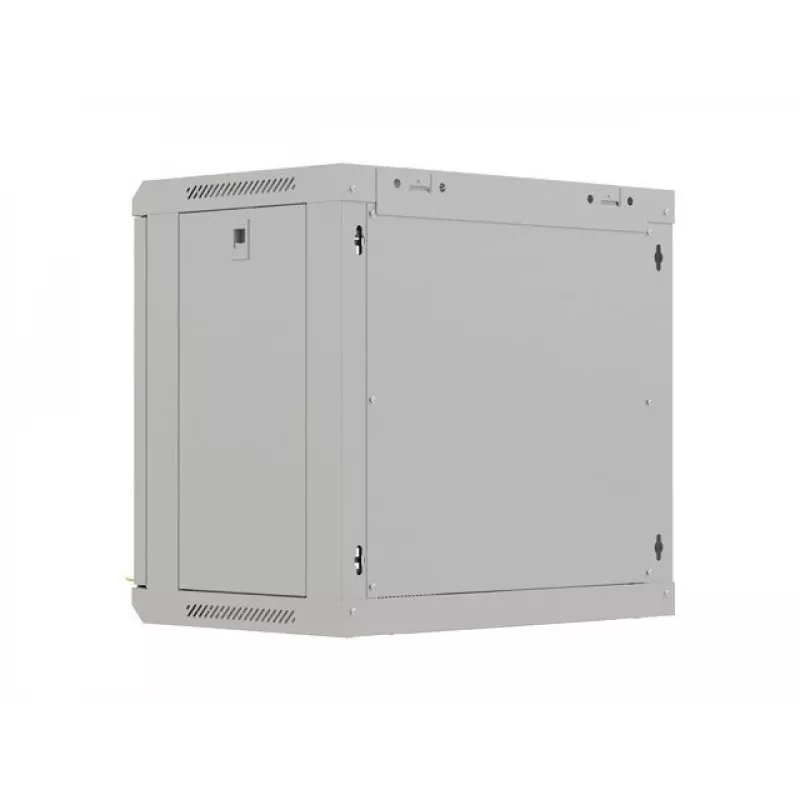

Lanberg WF03-5309-10S rack 9U nástenný rack čierny

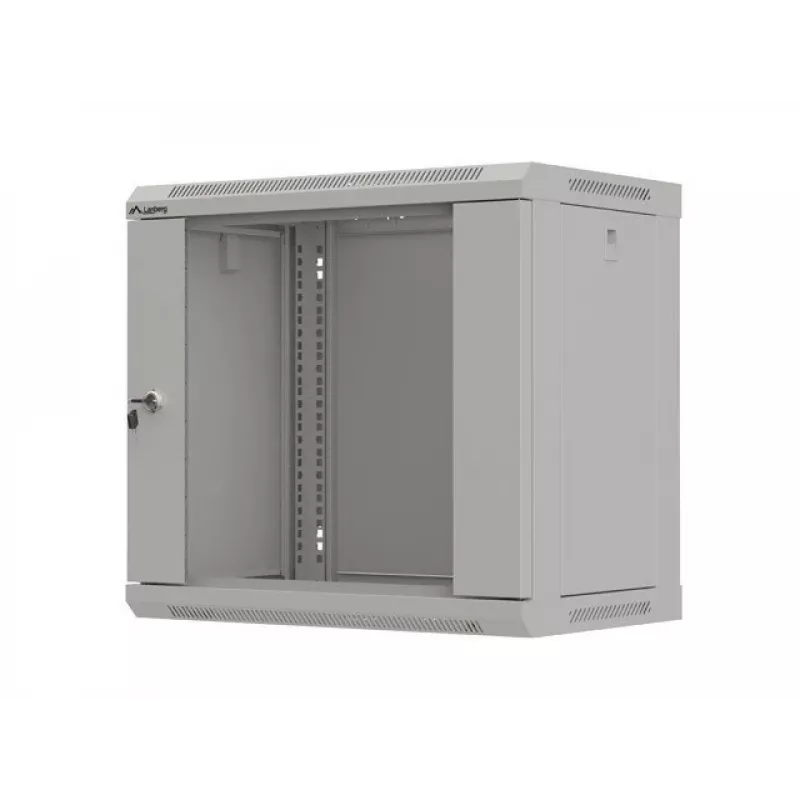

The Lanberg WF03-5309-10S stands apart from typical wall-mount cabinets by combining a space-saving flat-pack design with a full-height tempered glass front door that swings open a full 220°, giving you unobstructed access to your equipment. Built from cold-rolled steel with a grey RAL 7035 finish, this 9U enclosure is engineered for both durability and ease of installation in offices, retail spaces, or technical rooms.

Highlights

• 9U height, 19-inch standard rack mounting

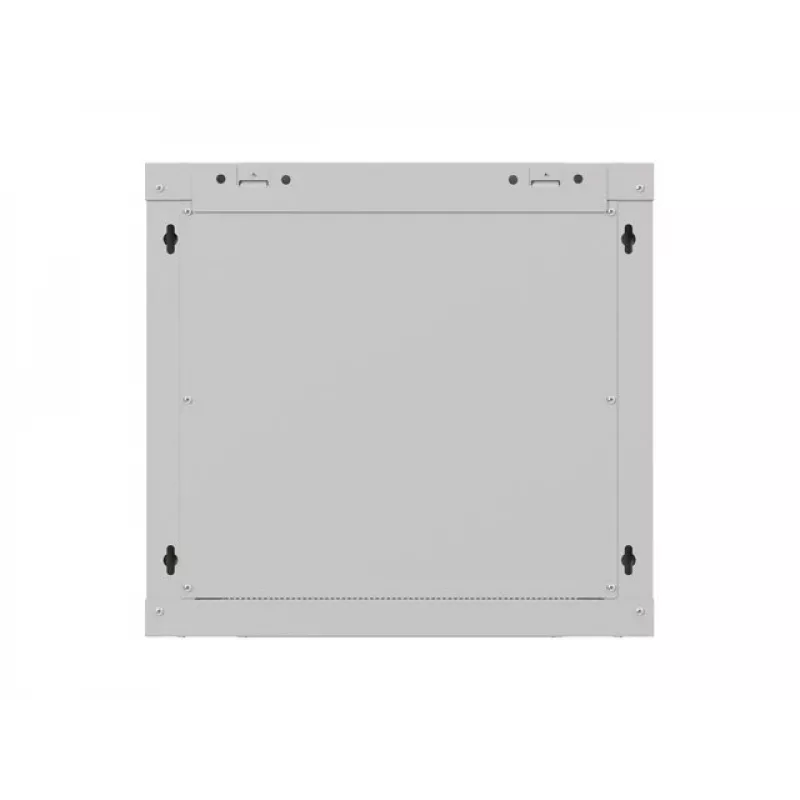

• Wall-mountable, flat-pack construction for easy transport and assembly

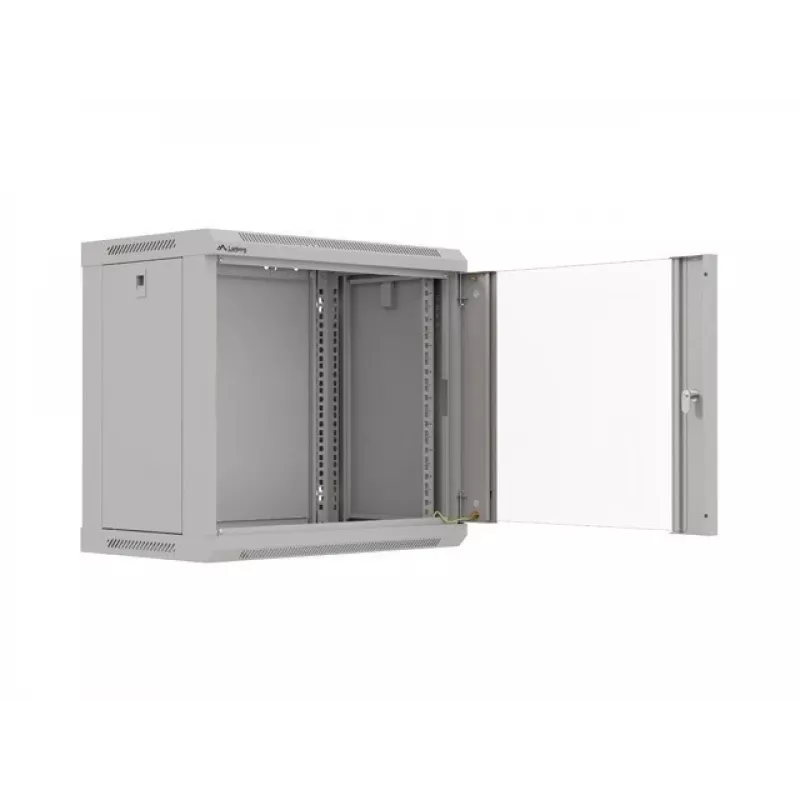

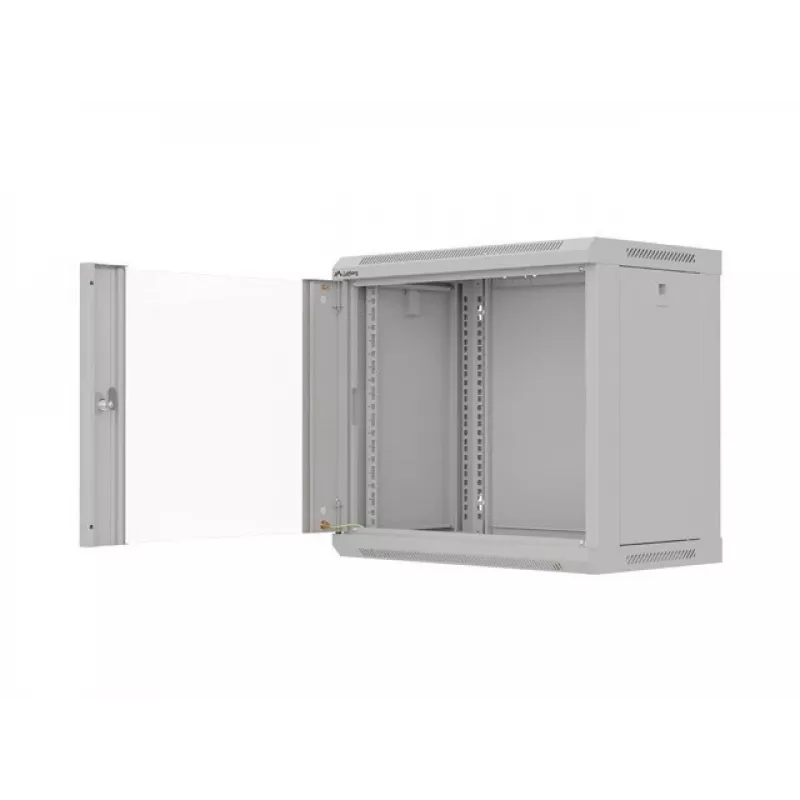

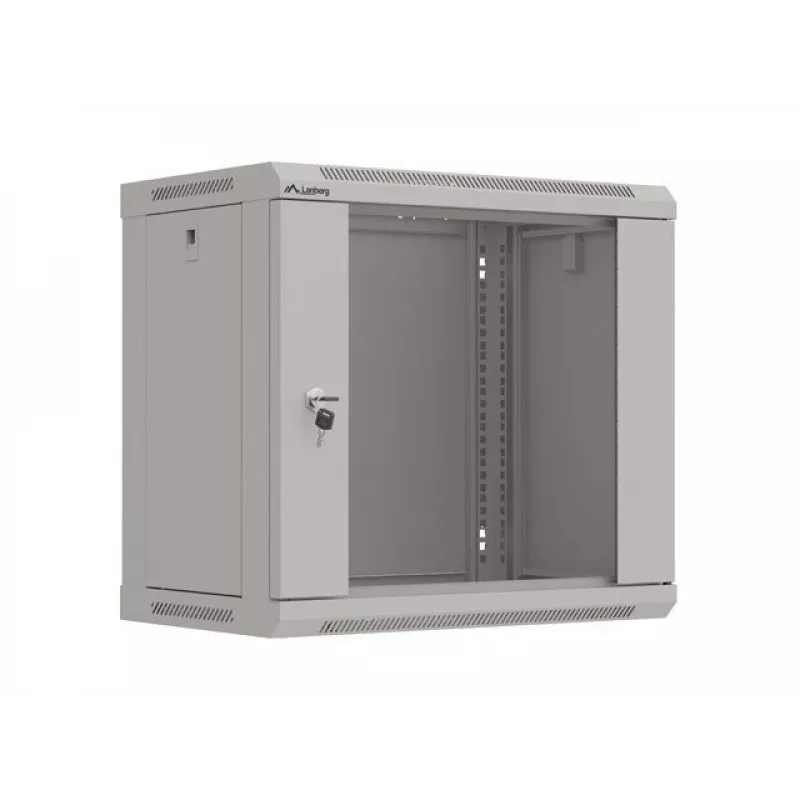

• Tempered glass front door with key lock, opens 220°
• Four adjustable vertical mounting rails (front and rear pairs)
• Passive ventilation with two fan slots and top/bottom cable entry
• Supports up to 60 kg of equipment

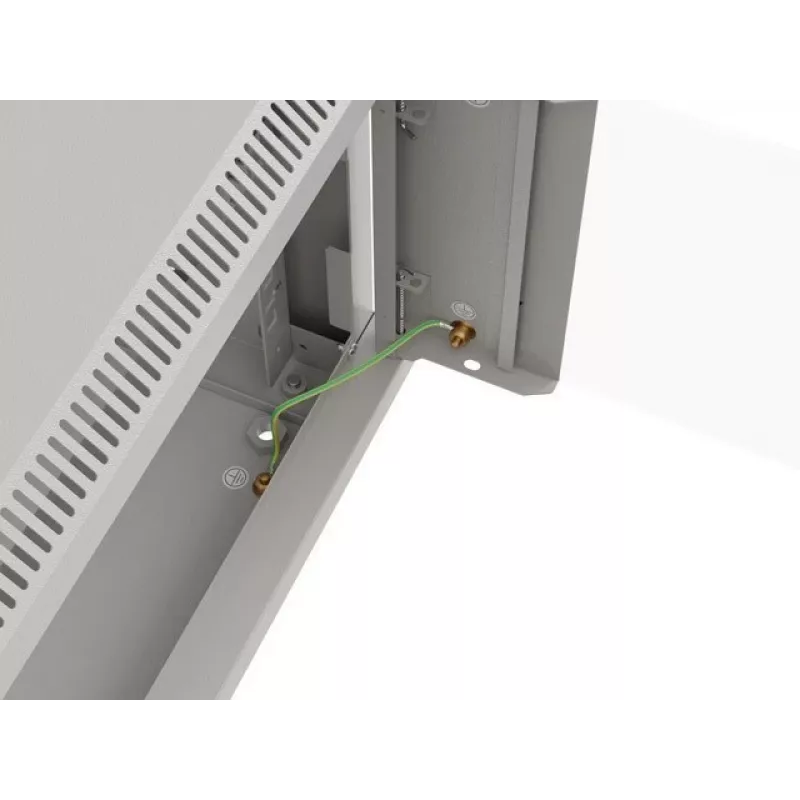

• Includes grounding cable, mounting bracket, M6 screws, and bottom panel

In daily use

This cabinet keeps your network switches, patch panels, and small servers organized and secure. The removable side panels and adjustable rails make installation and maintenance straightforward, while the lockable glass door prevents unauthorized access without hiding status LEDs. The flat-pack design means it ships in a compact box, but once assembled, it provides a robust and professional enclosure that blends into any environment.

Full specifications

• Rack capacity: 9U
• Rack size: 19"
• External dimensions (WxDxH): 540 x 350 x 500 mm
• Weight: 13.8 kg
• Material: SPCC cold-rolled steel, tempered glass
• Colour: Grey (RAL 7035)
• Maximum weight capacity: 60 kg

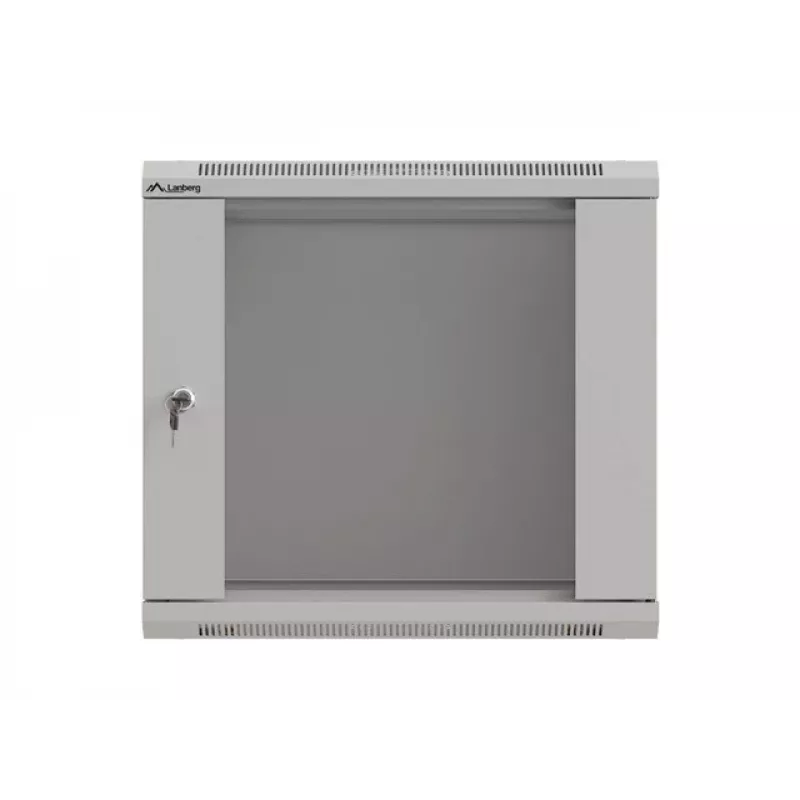

• Front door: Tempered glass, single-leaf, key lock, 220° opening

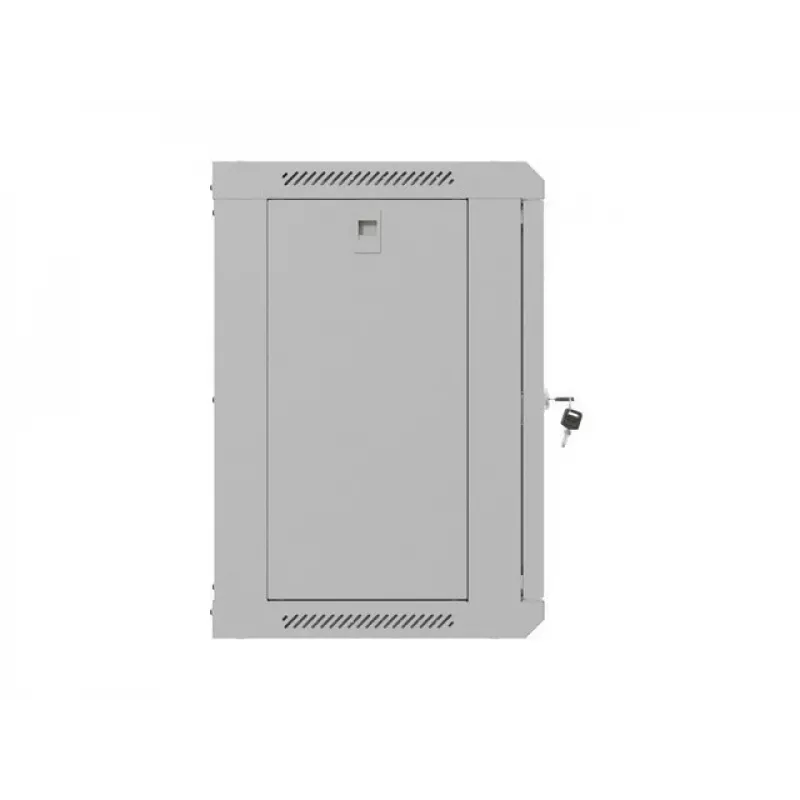

• Side panels: Removable, lockable
• Mounting rails: 4 vertical, adjustable

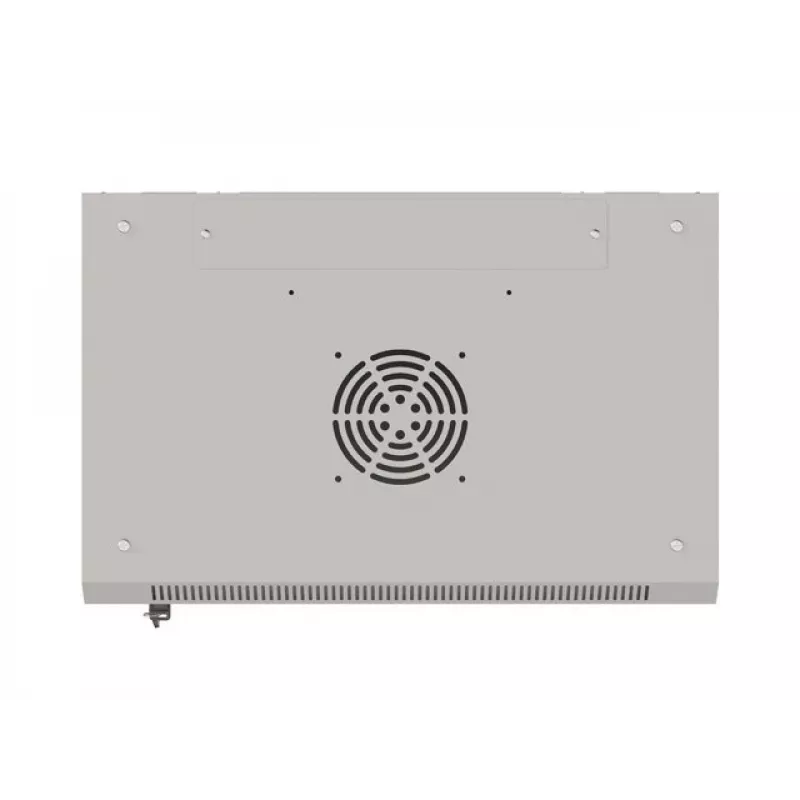

• Ventilation: Passive, 2 fan slots
• Cable entry: Top and bottom with blanking panels
• Protection rating: IP20
• Compliance: ANSI/EIA RS-310-D, IEC297-2, DIN41494 PART1, DIN41494 PART7
• Package contents: Front lock, grounding cable, M6 screws, mounting bracket, front door, bottom panel

Final note

For a secure, space-efficient wall-mount solution that doesn't compromise on accessibility or build quality, the Lanberg WF03-5309-10S is a reliable choice for structured cabling and small network installations.
