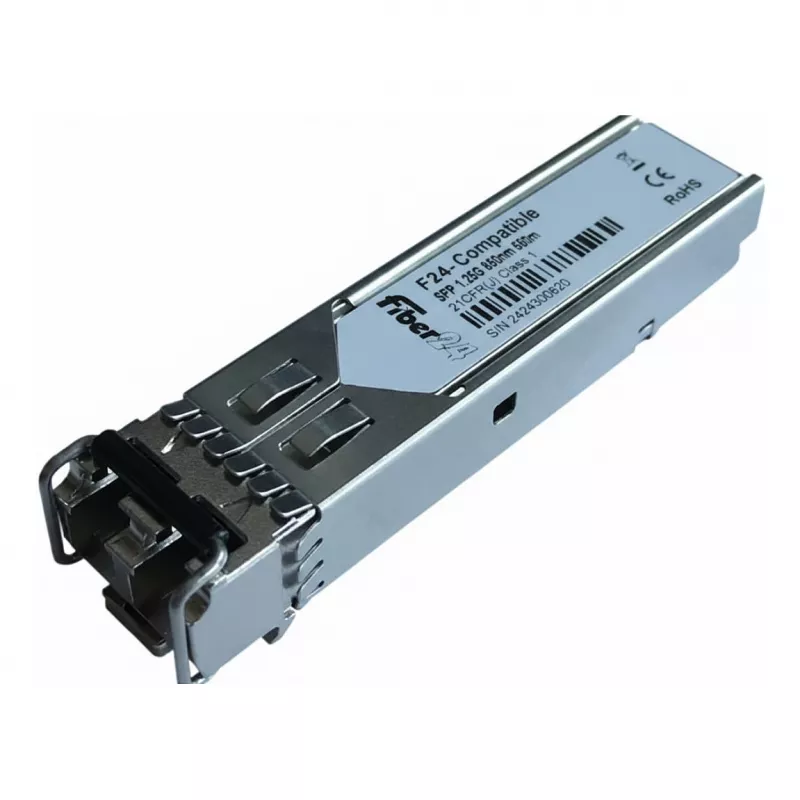

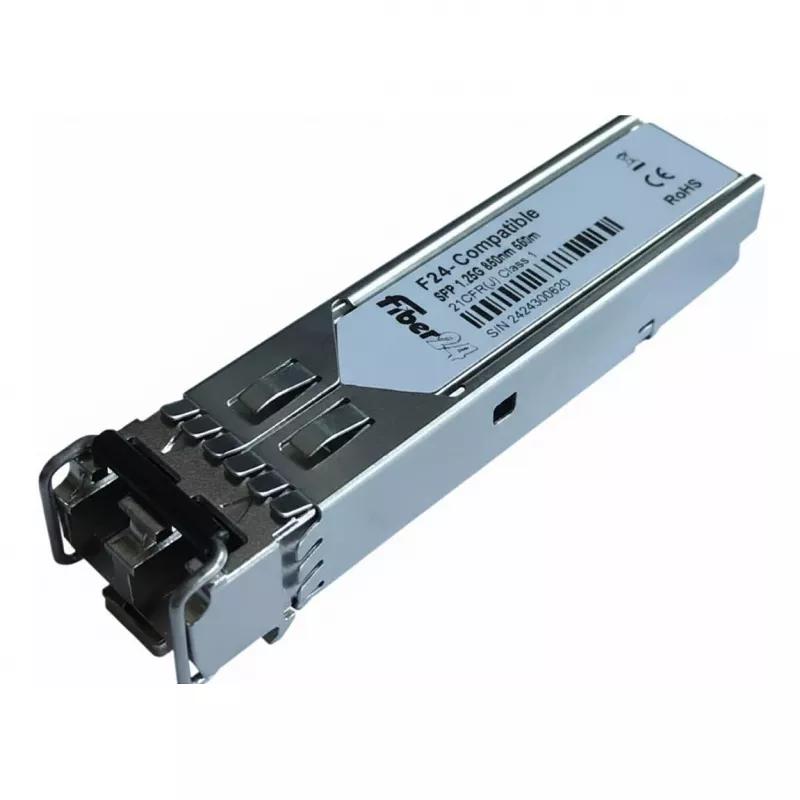

LANCOM UF-SFP-SX-LC1-LC10 SFP transceiver modul (Bulk 10) - 1000BASE-SX, 850 nm, Multimode, LC Duplex

The LANCOM UF-SFP-SX-LC1-LC10 (Bulk 10) is a set of 10 SFP transceiver modules designed for high-performance 1 Gigabit Ethernet connections over multimode fiber. These hot-pluggable modules support 1000BASE-SX standard with a wavelength of 850 nm, providing reliable data transmission up to 550 m on OM3 fiber. Ideal for expanding network connectivity in LANCOM switches and routers, they offer Digital Diagnostic Monitoring (DDM/DOM) for real-time performance tracking.

Advantages

Cost-effective bulk pack of 10 modules for large-scale deployments. Hot-pluggable design allows for easy installation and replacement without network downtime. DDM/DOM support enables proactive network management. Low power consumption (<1W per module) reduces operational costs.

Suitable for

• Enterprise and data center networks requiring 1 Gbps fiber connectivity
• LANCOM SFP-enabled switches and routers
• Short to medium-range multimode fiber links (up to 550 m)

Key specifications

• Product Type: SFP Transceiver Module
• Quantity: 10 Modules
• Data Rate: 1 Gigabit Ethernet (1000BASE-SX)
• Wavelength: 850 nm
• Fiber Type: Multimode Fiber (MMF)
• Connector Type: LC Duplex
• Max Distance: 550 m (OM3), 275 m (OM1)
• Form Factor: SFP
• Hot-Pluggable: Yes
• DDM/DOM Support: Yes
• Compatibility: LANCOM SFP-enabled devices
• Standards: IEEE 802.3z 1000BASE-SX, SFP MSA
• Power Supply: 3.3 V
• Power Consumption: <1 W (typical per module)
• Operating Temperature: 0°C to 70°C
• Storage Temperature: -40°C to 85°C
• Humidity: 5% to 95% (non-condensing)

Recommendations

For optimal performance, use with OM3 or OM4 multimode fiber cables and ensure compatibility with your LANCOM device's SFP slot. This bulk pack is ideal for network expansions or new installations requiring multiple fiber connections.
