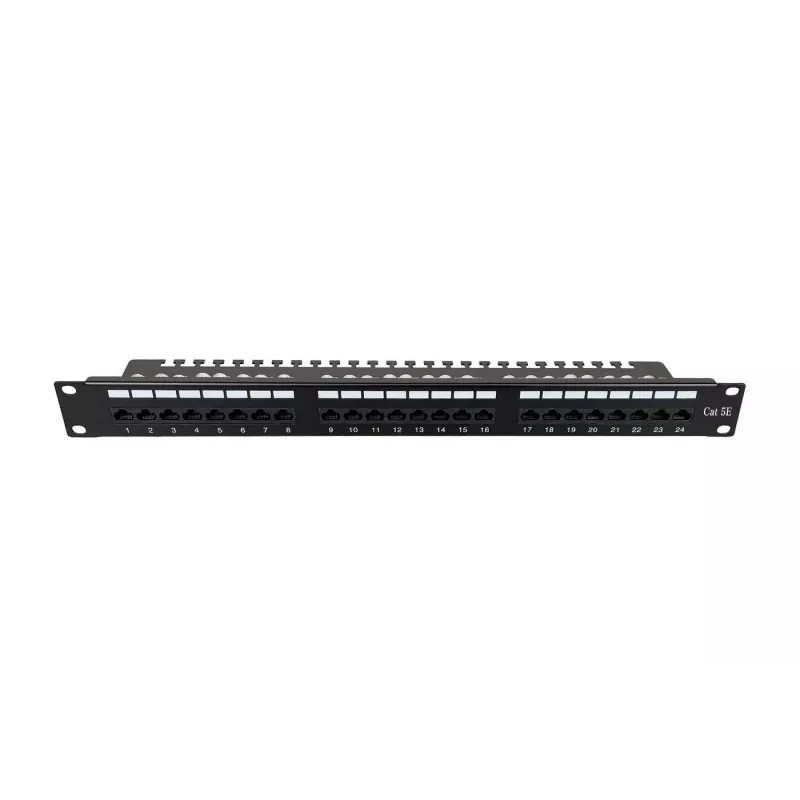

LANVIEW Cat5e 1U 24-port UTP patch panel - LVR-CAT5E-UTP-LSA

Experience seamless network organisation with the LANVIEW Cat5e 1U 24-Port UTP Patch Panel – a robust, high-density solution engineered for clear cable management in 19-inch racks. Supporting Gigabit Ethernet speeds up to 1000 Mbps, this unshielded patch panel ensures reliable performance for Cat5e cabling systems, making it an essential component for structured cabling and data centre deployments.

Overview

The LANVIEW Cat5e 1U 24-Port Patch Panel provides a clean, centralised point for terminating and routing network cables. With its 24 RJ45 front ports and 110-type IDC rear terminations, it simplifies patching and maintenance while reducing cable clutter. The panel is constructed from durable SPCC steel and finished in a sleek black colour, offering both strength and a professional appearance in any server rack.

What stands out

• High-density 24-port design in a compact 1U form factor
• RJ45 female ports on the front for quick patching
• 110-type IDC punch-down blocks on the rear for secure terminations
• Colour-coded wiring diagrams for TIA/EIA 568A and 568B standards
• Supports solid and stranded cables from 22 to 26 AWG
• Compatible with standard 19-inch racks, including mounting screws

Technical details

• Data transfer rate: Up to 1000 Mbps (Gigabit Ethernet)
• Networking standards: Cat5e
• Cable shielding: UTP (Unshielded Twisted Pair)
• Connectors: 24 x RJ45 (female) front, 24 x 110-type IDC rear
• AWG wire size: 22-26 AWG
• Operating temperature: -10°C to 60°C
• Operating relative humidity: 10% - 90% RH (non-condensing)
• Certifications: RoHS, CE
• Packaging content: cable ties, mounting screws

Our verdict

The LANVIEW Cat5e 1U 24-Port UTP Patch Panel delivers exactly what a network professional needs: reliable connectivity, straightforward termination, and solid rack-mount construction. Its Gigabit capability and broad cable compatibility make it a versatile and dependable choice for both new installations and upgrades.
