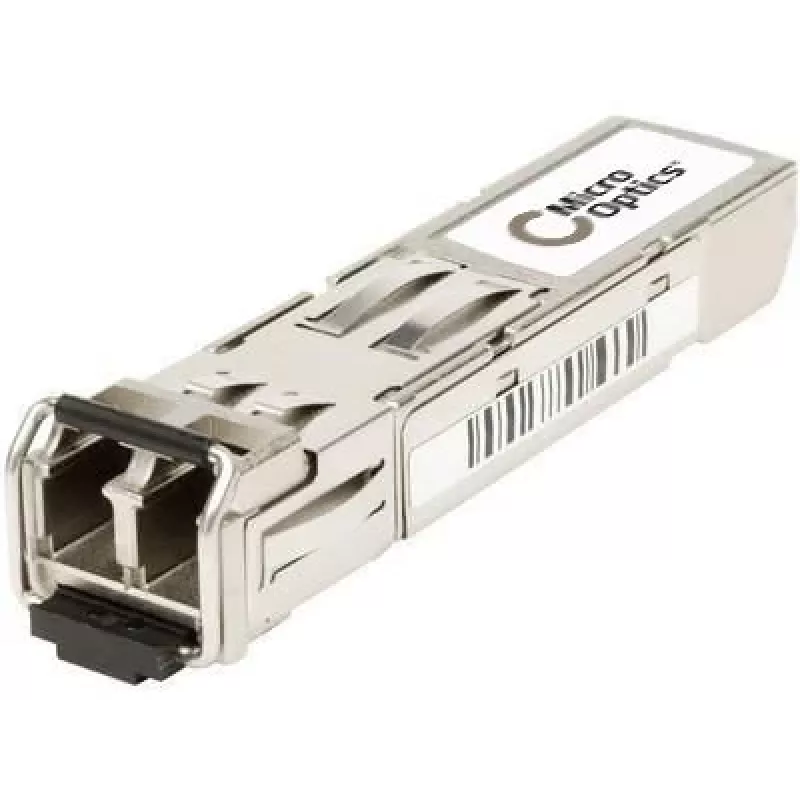

LANVIEW Huawei 02315204 kompatibilný 10G SFP+ transceiver, 10GBASE-LR, 1310nm, 10km, LC Duplex, Singlemode

Data centres and enterprise networks often face the challenge of extending high-speed 10 Gigabit Ethernet links over long distances without sacrificing reliability. The LANVIEW Huawei 02315204 Compatible SFP+ transceiver solves this by delivering 10GBASE-LR performance over single-mode fibre for up to 10 kilometres, ensuring seamless integration with Huawei equipment.

Who is it for

Network engineers, IT managers, and system integrators who need a cost-effective, hot-swappable optical module for Huawei switches, routers, and servers. It is ideal for data centre interconnects, campus backbones, and enterprise distribution layers where long-reach 10G connectivity is required.

Main features

• Fully compatible with Huawei 02315204 original transceivers, ensuring plug-and-play operation without configuration changes.
• Supports 10GBASE-LR standard with a data rate of 10 Gbps and a wavelength of 1310 nm using a DFB laser.
• Reaches up to 10 km over OS2 single-mode fibre with a duplex LC connector.
• Digital Diagnostic Monitoring (DDM/DOM) provides real-time monitoring of temperature, optical power, voltage, and laser bias current.
• Hot-swappable SFP+ form factor allows installation and removal without powering down the network device.
• Low power consumption of less than 1.0 W, reducing energy costs and heat generation.
• Compliant with MSA and RoHS, ensuring broad interoperability and environmental safety.

Specifications

• Transceiver Type: SFP+
• Data Rate: 10 Gbps
• Wavelength: 1310 nm
• Max Transmission Distance: 10 km
• Fiber Type: Single-Mode Fiber (SMF)
• Connector Type: LC Duplex
• Optical Standard: 10GBASE-LR
• DDM/DOM Support: Yes
• Hot-Swappable: Yes
• Power Consumption: <1.0 W (Typical)
• Operating Temperature Range: 0°C to 70°C (32°F to 158°F)
• Laser Type: DFB (Distributed Feedback) Laser
• Receiver Type: PIN Photodiode
• Supply Voltage: 3.3 V
• Compliance: MSA, RoHS
• Application: 10 Gigabit Ethernet, Data Centers, Enterprise Networks

Tips

Always use single-mode fibre (OS2) with this transceiver to achieve the full 10 km reach. For shorter distances, an attenuator may be required to avoid receiver saturation. Store unused modules with dust caps in place to prevent contamination of the optical ports.
