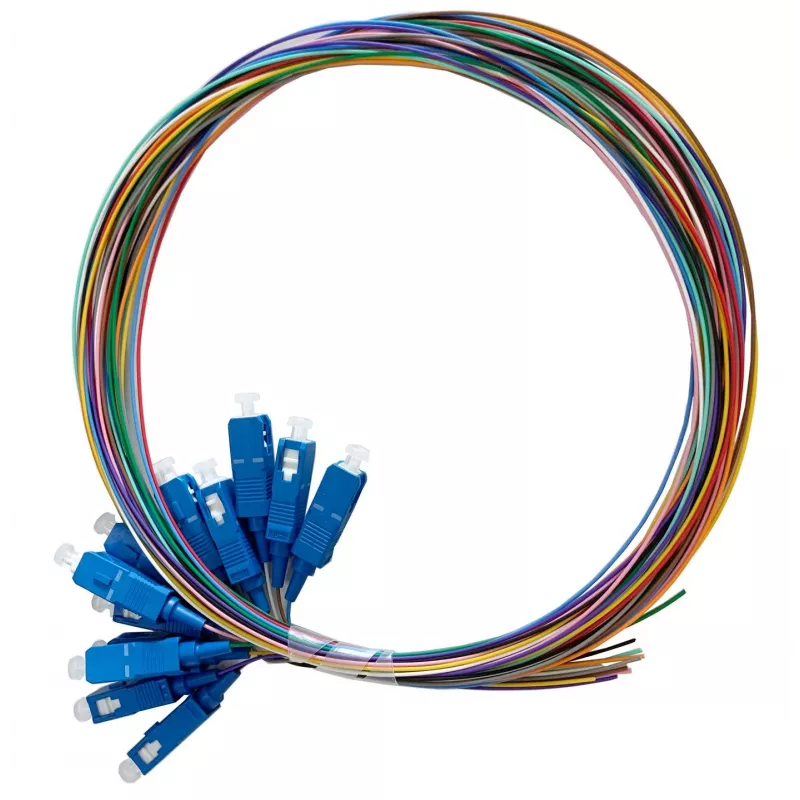

Lanview LVO-PIG-SCUPC-12CORE-OS2-2M

The Lanview LVO-PIG-SCUPC-12CORE-OS2-2M is a 2 meter pigtail cable with 12 individually colored fibers terminated to an SC/UPC connector. Built for single‑mode OS2 fiber networks, this pigtail provides a compact solution for splicing and connecting fiber optic equipment in structured cabling installations.

Advantages

This pigtail features 12 different color-coded cores for easy identification during installation and maintenance. The SC/UPC termination offers low insertion loss and stable optical performance. The 2 m length gives sufficient slack for rack and splice enclosure routing while keeping excess cable manageable.

Suitable for

• Splicing into single-mode OS2 fiber trunks
• Connecting patch panels to optical equipment with SC/UPC ports
• Use in data centers, telecom rooms and network closets

Key specifications

• Model: LVO-PIG-SCUPC-12CORE-OS2-2M
• Connector: Open end to SC/UPC
• Fiber count: 12 cores, color-coded
• Fiber type: Single-mode OS2
• Length: 2 m
• Brand: Lanview
• MPN/EAN: LVO-PIG-SCUPC-12CORE-OS2-2M / 5715328119819

How to use

Route the pigtail from the splice tray or outlet to the equipment and perform fusion or mechanical splicing at the open end into the backbone fiber. Insert the SC/UPC connector into the corresponding SC port on the patch panel or active device. Secure the cable in cable management elements to prevent strain on the splice and connector.

Recommendations

Handle fiber ends with care, keep connector endfaces clean and follow standard fiber optic safety procedures. Use appropriate splice enclosures and strain relief to protect splices and maintain optical performance.
