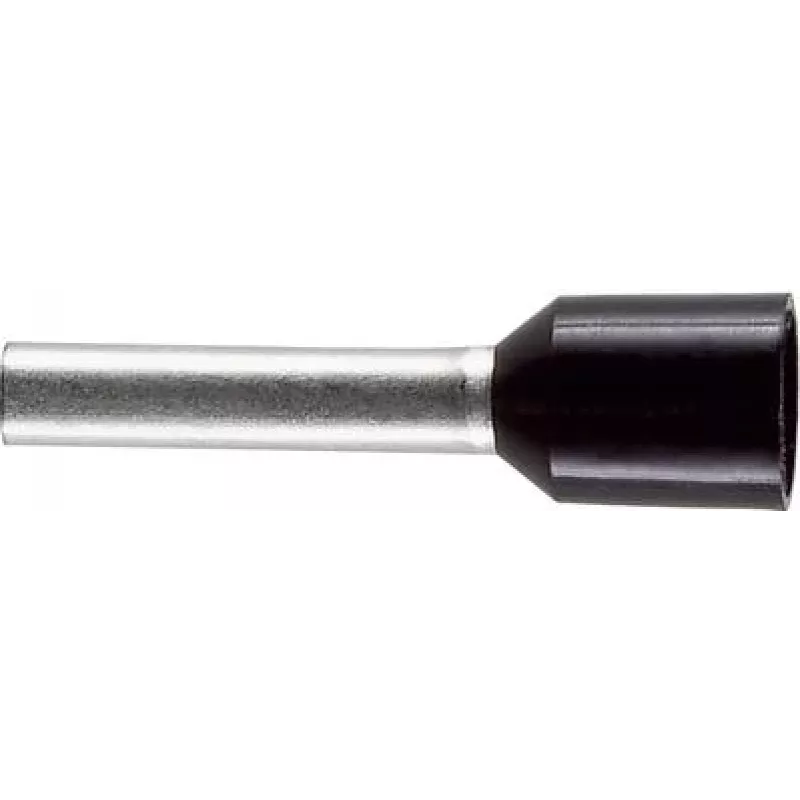

LAPP káblová koncovka 1,5 mm² 10 mm čiastočne izolovaná čierna (500 ks) 61802068

Wire end ferrule for fine-stranded conductors, offering reliable termination with a 1.5 mm² cross-section and a 10 mm metal sleeve length. Partially insulated design in black for secure and efficient wiring.

Advantages

Tin-plated electrolytic copper ensures excellent conductivity and corrosion resistance. Polypropylene insulation provides durability and a secure grip. Halogen-free material enhances safety in fire conditions. RoHS compliant for environmental responsibility.

Suitable for

• Fine-stranded conductors up to 1.5 mm²
• Industrial control panels and terminal connections
• Applications requiring vibration-resistant terminations

Key specifications

• Nominal cross-section: 1.5 mm²
• Ferrule length (metal part): 10 mm
• Insulation colour: Black
• Insulation material: Polypropylene (PP)
• Conductor material: Electrolytic copper, tin-plated
• Temperature range: -5 °C to +105 °C
• Rated voltage: 300 V
• Standard compliance: DIN 46228 Part 4
• Flammability rating: UL 94 V-2
• Packaging unit: 500 pieces

Recommendations

Use with a suitable crimping tool for reliable connections. Ensure the ferrule size matches the conductor cross-section.
