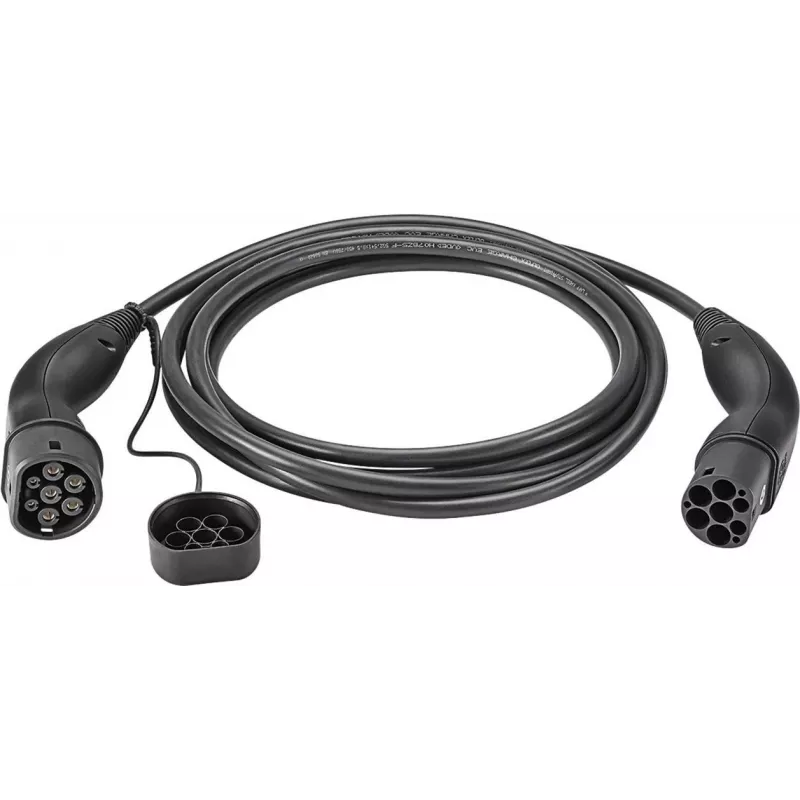

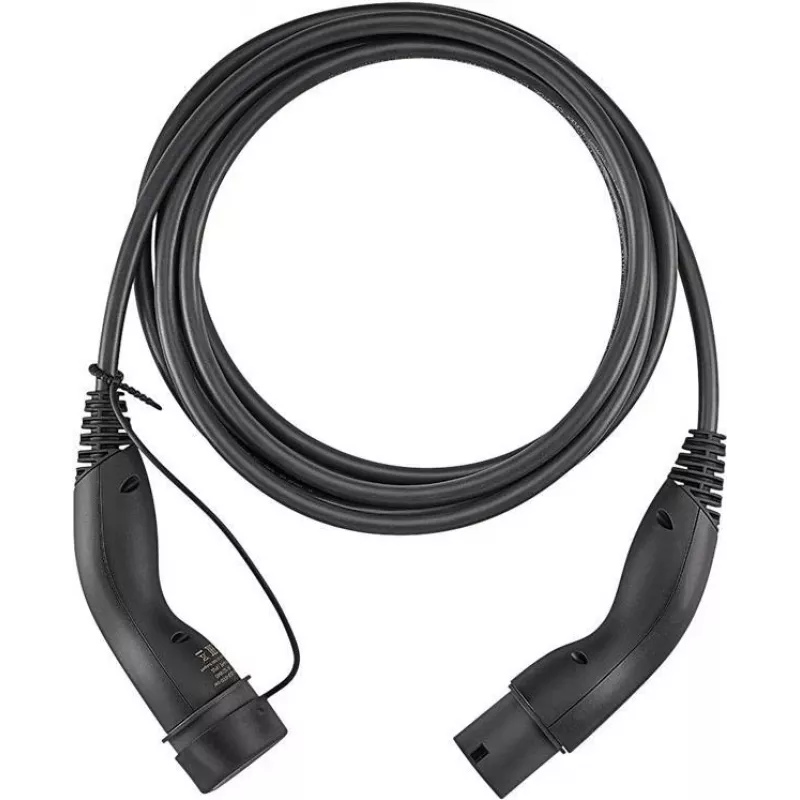

LAPP MOBILITY Type 2 EV nabíjací kábel 22 kW 5 m čierny 61781

Electric vehicle owners often face the challenge of finding a reliable charging cable that can handle high power levels without compromising safety or durability. The LAPP MOBILITY Type 2 charging cable solves this by providing a robust, 22 kW capable connection between your EV and any Type 2 charging station.

Who is it for

This cable is for EV drivers who need a dependable, high-power charging solution for home, workplace, or public charging stations. It is compatible with all Type 2 electric vehicles and charging infrastructure across Europe.

Main features

• Supports up to 22 kW of charging power for fast, efficient charging.
• 5-meter length offers flexibility in parking and charging setups.

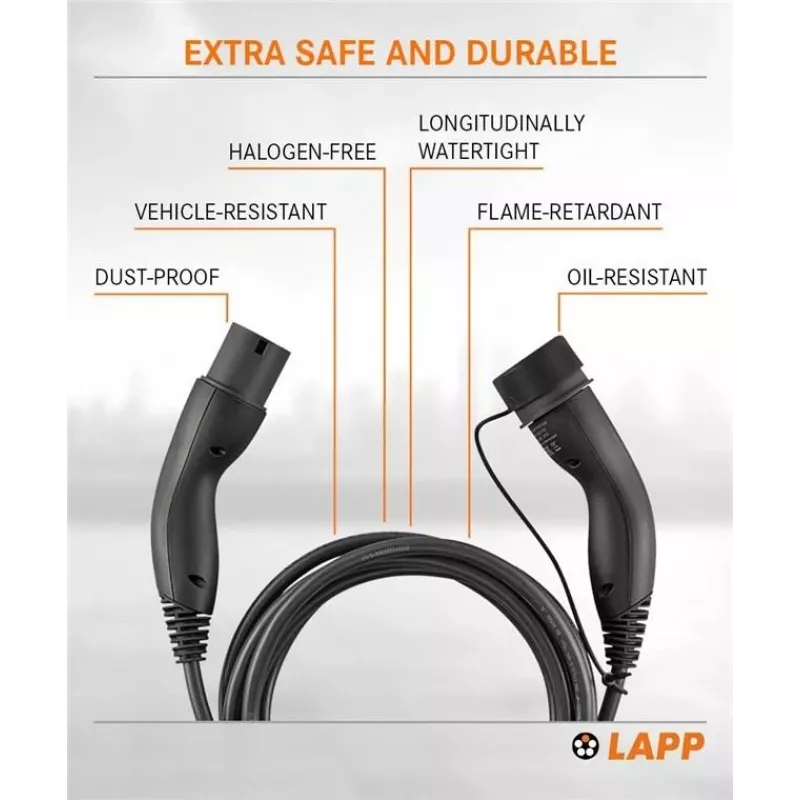

• Durable halogen-free PUR jacket resists oil, UV, and mechanical stress.
• Both connectors are Type 2 (IEC 62196-2), ensuring universal compatibility.
• Rated for 32 A current on a 3-phase supply.

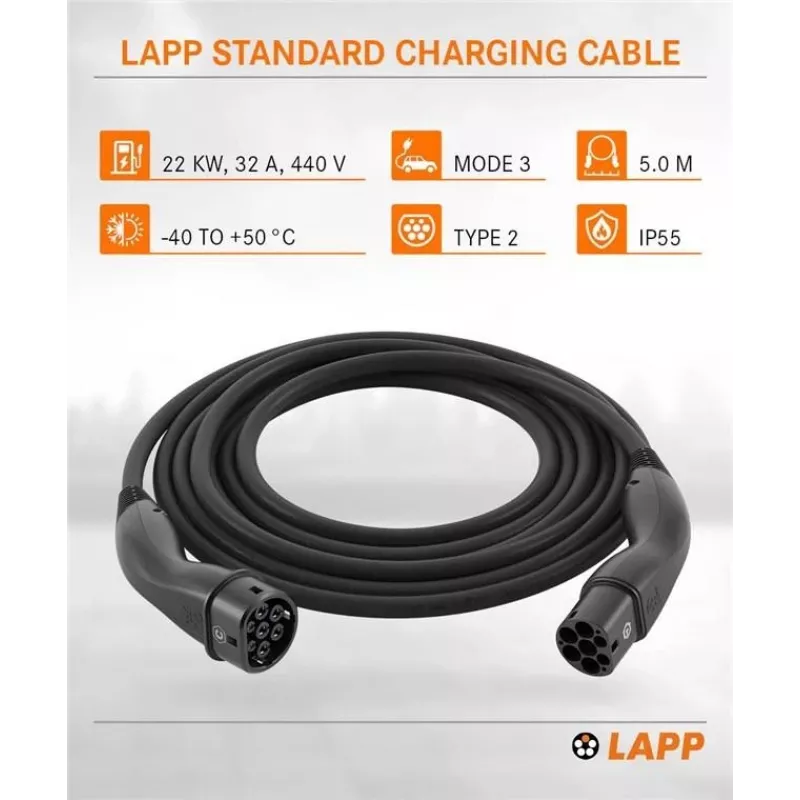

Specifications

• Connector Type (Vehicle Side): Type 2 (IEC 62196-2)
• Connector Type (Charging Station Side): Type 2 (IEC 62196-2)
• Max Charging Power: 22 kW
• Max Current: 32 A
• Phases: 3-phase
• Cable Length: 5 m
• Color: Black
• Operating Voltage: 400 V AC
• Protection Class (Connected): IP44
• Operating Temperature Range: -30°C to +50°C
• Cable Jacket Material: Halogen-free PUR (Polyurethane)
• Conductor Configuration: 5 x 6 mm² + 1 x 0.5 mm²
• Certifications: CE, TÜV Rheinland
• UV Resistance: Yes
• Oil Resistance: Yes

Tips

To maximize cable lifespan, avoid driving over the cable and store it in a dry, cool place when not in use. Regularly inspect the connectors for dirt or damage before charging.
