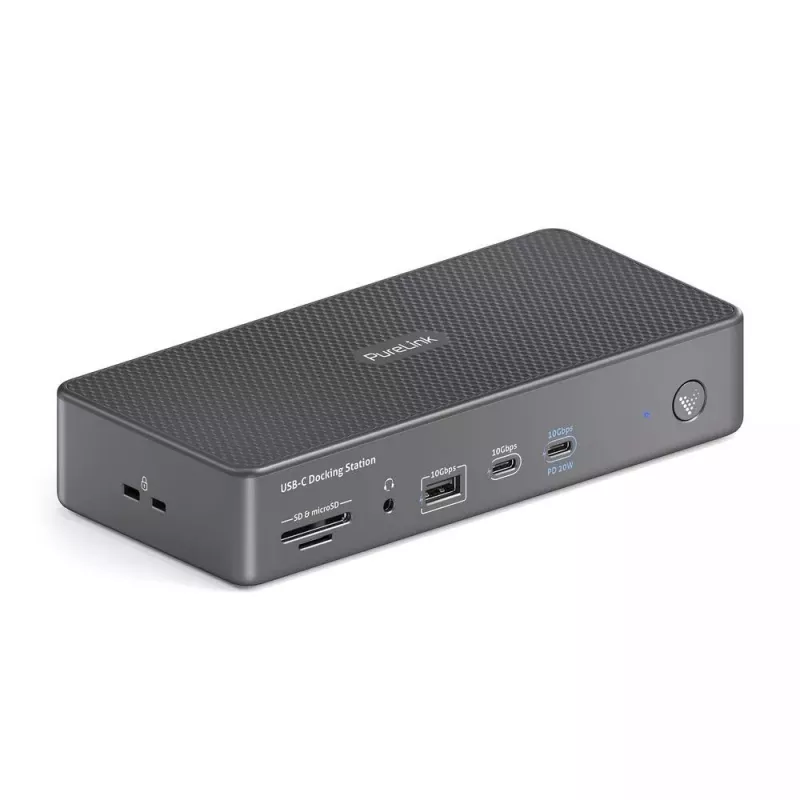

Laptop dock PureLink VL-D220 káblový USB 3.2 Gen 2 Type-C sivá

The PureLink VL-D220 (branded also as Vuelogic Docking Station D220) is a wired USB 3.2 Gen 2 Type-C laptop dock that extends a laptop’s connectivity and charging capabilities. It supports 100W Power Delivery (PD), offers MSD triple-screen output with DisplayPort 1.4 and HDMI 2.1 compatibility, includes a Gigabit Ethernet port, integrated SD and microSD card reader slots, a 3.5 mm audio jack and multiple USB ports for high-speed data transfer.

Advantages

The dock provides up to 100W PD pass-through for charging compatible laptops while supplying power to connected peripherals. Triple-screen support with MST allows mixed use of two HDMI 2.1 and one DisplayPort 1.4 outputs with high-resolution options (single-output maximums with DSC up to 8K; typical 4K at 60Hz or 30Hz depending on output). Multiple USB ports include several high-speed 10 Gbps and 5 Gbps ports plus USB 2.0 ports for legacy devices, enabling simultaneous data transfer and device charging. Integrated Ethernet and card readers centralize connectivity in a compact grey housing.

Suitable for

• Office setups requiring wired LAN and multiple external displays
• Mobile professionals who need fast charging (100W PD) and broad peripheral support
• Content creators and power users connecting cameras, external drives and SD cards
• Users who require mixed HDMI and DisplayPort monitor configurations with MST

Key specifications

• Model: PureLink VL-D220 / Vuelogic D220
• Interface: USB-C 3.2 Gen 2 (Type-C) input
• Power Delivery: up to 100W PD pass-through
• Video outputs: 2× HDMI 2.1, 1× DisplayPort 1.4; MST triple-screen support; max digital resolution up to 7680 × 4320 (DSC-assisted single-output limits apply)
• USB ports: multiple ports including 10 Gbps and 5 Gbps Type-A ports and 2× USB 2.0 (480 Mbps)
• Ethernet: Gigabit Ethernet (RJ-45)
• Card readers: SD and microSD slots
• Audio: 3.5 mm audio output
• Dimensions (W×D×H): 190 × 88 × 37.5 mm
• Weight: 0.61 kg
• Colour: Grey
• Brand / MPN / EAN: PureLink / VL-D220 / 4251364737507

How to use

Connect the dock to your laptop using the supplied USB-C 3.2 Gen 2 cable. If your laptop supports USB-C Power Delivery, the dock can provide up to 100W to charge it while connected. Attach monitors to the HDMI 2.1 and DisplayPort 1.4 outputs; enable MST in your operating system or graphics driver to use triple-screen configurations. Plug peripherals into the appropriate USB ports and insert SD or microSD cards into the reader slots. Use the RJ-45 port for wired network access and the 3.5 mm jack for headphones or speakers.

Recommendations

For optimal multi-monitor performance, ensure your laptop’s USB-C port supports DisplayPort Alternate Mode and sufficient bandwidth. When using high-resolution outputs (4K/8K with DSC), check graphics driver settings and system limitations. Use the 10 Gbps ports for fast external SSDs and the USB 2.0 ports for keyboards or mice. Keep firmware and drivers up to date for best compatibility.
