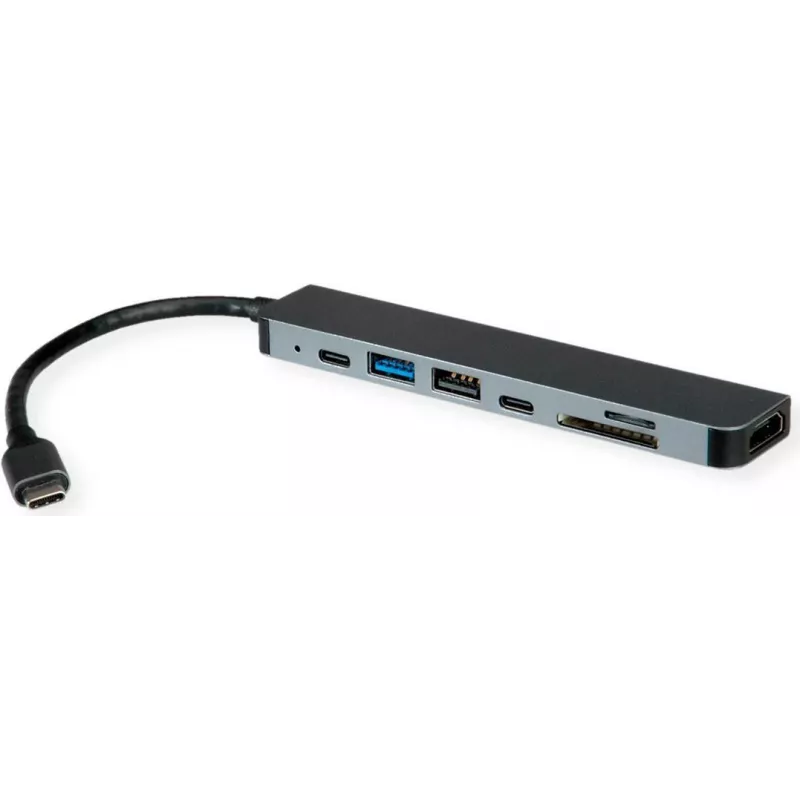

Laptop dock ROLINE 12021122 USB 3.2 Gen 1 Type-C sivá

The ROLINE 12021122 USB 3.2 Gen 1 Type-C laptop dock is a compact wired docking solution designed to expand connectivity for laptops and compatible devices. It offers a USB-C connection with USB Power Delivery up to 60 W and supports a maximum digital display resolution of 3840 x 2160 pixels. The dock combines multiple interfaces in a slim grey enclosure with dimensions of approximately 28 mm × 128 mm × 10 mm and a lightweight profile for easy portability.

Advantages

This dock provides a simple way to add external display output, memory card access and additional USB ports without changing the host device. Integrated HDMI output supports high-resolution displays while USB 3.2 Gen 1 connectivity enables faster data transfer for compatible peripherals. The MicroSD and SD card slots allow direct reading and writing of memory cards, and a USB Power Delivery feature supplies up to 60 W to charge or maintain laptop battery level during use. Its compact grey housing makes it suitable for mobile workflows and limited-desk spaces.

Suitable for

• Connecting an external monitor via HDMI for extended or mirrored displays
• Reading and writing MicroSD and SD memory cards from cameras and mobile devices
• Attaching USB peripherals such as a mouse, keyboard or external storage
• Providing power to a laptop or compatible device using USB Power Delivery

Key specifications

• Interface: USB Type-C (USB 3.2 Gen 1)
• Data ports: 1 × USB 3.2 Gen 1 Type-A, 1 × USB 2.0 Type-A
• Video output: 1 × HDMI supporting up to 3840 × 2160 pixels
• Memory card support: MicroSD and SD slots
• Power delivery: up to 60 W via USB-C
• Dimensions (approx.): 28 mm × 128 mm × 10 mm
• Colour: Grey
• Weight: 0.045 kg

How to use

Plug the dock into a laptop or compatible host using the integrated USB-C cable or port. Connect an external monitor to the HDMI port and select the desired display mode (extend or mirror) in the operating system display settings. Insert a MicroSD or SD card into the corresponding slot to access files, and attach USB peripherals to the available Type-A ports. If required, connect a USB-C power source to provide up to 60 W Power Delivery to the host device while other peripherals are in use.

Recommendations

For optimal display performance, use a high-quality HDMI cable and ensure the host device supports the target display resolution. When using high-power peripherals or charging while transferring large files, connect a reliable USB-C power adapter that provides sufficient wattage. Eject memory cards and USB storage safely via the operating system before removal to avoid data loss.
