LED reflektor Brennenstuhl JARO 3060 P 20W 2300lm 6500K s pohybovým senzorom

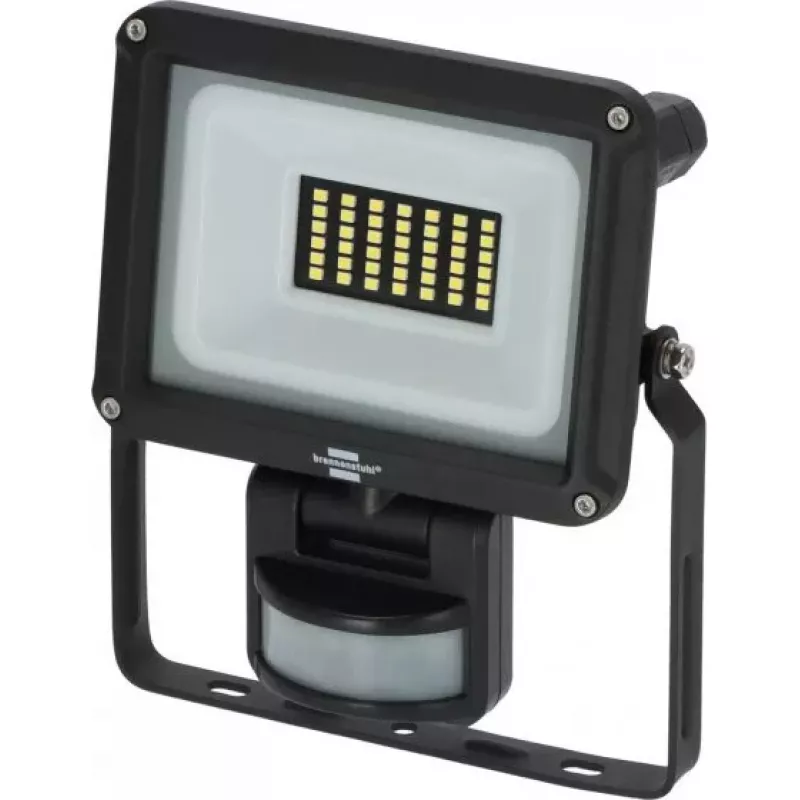

The Brennenstuhl JARO 3060 P LED Spotlight is a 20W wall-mounted floodlight that delivers 2300 lumens at 6500K. Designed for indoor and outdoor use, it features IP65 protection and a safety glass pane for enhanced impact resistance. The integrated motion detector with adjustable twilight switch provides automatic activation within a detection range up to 10 m and a 180° coverage angle. Everlight SMD LEDs offer long service life and wide-area light diffusion suitable for entrance areas, driveways and carports.

Advantages

The floodlight combines low energy consumption with high luminous output and robust protection against dust and water (IP65). A built-in safety glass increases mechanical resistance, while the infrared motion detector enables automatic, hands-free operation. Adjustable settings for detection sensitivity, twilight threshold and light duration allow flexible configuration. The Everlight SMD LEDs provide reliable, long-lasting illumination and even light distribution for large surfaces.

Suitable for (tasks / use cases)

• Illuminating entrances and porches
• Lighting driveways and carports
• Security and perimeter lighting around residential buildings
• Outdoor wall-mounted site or pathway lighting

Key specifications

• Power: 20 W
• Luminous flux: 2300 lm
• Colour temperature: 6500 K (cool daylight)
• Protection rating: IP65 (dustproof and jet-proof)
• Motion detector: infrared, detection range up to 10 m, 180° coverage
• Adjustable light duration: approx. 10 s to 5 min
• Mounting: wall
• Manufacturer: Brennenstuhl, MPN: 1171250242, EAN: 4007123684960

How to use

Mount the floodlight on a suitable exterior wall following the manufacturer’s mounting instructions and ensure the power is isolated during installation. Aim and secure the fixture at the desired height and orientation, then adjust the motion detector horizontally and vertically to cover the required area. Set the twilight switch threshold to the preferred ambient light level and choose the required light duration between about 10 seconds and 5 minutes. After connection to the 230 V supply, the luminaire will operate automatically when motion is detected within range.

Recommendations

For reliable motion detection and even illumination, mount the unit at a height and angle that avoids direct exposure to street lamps or other strong light sources. Regularly check the seals and glass pane for damage and clean the optical surfaces as needed to maintain optimal performance.
