Legamaster AL OPS počítač AL-i5-1235U barebone Wi-Fi 6 Ethernet 1000 Mbit/s

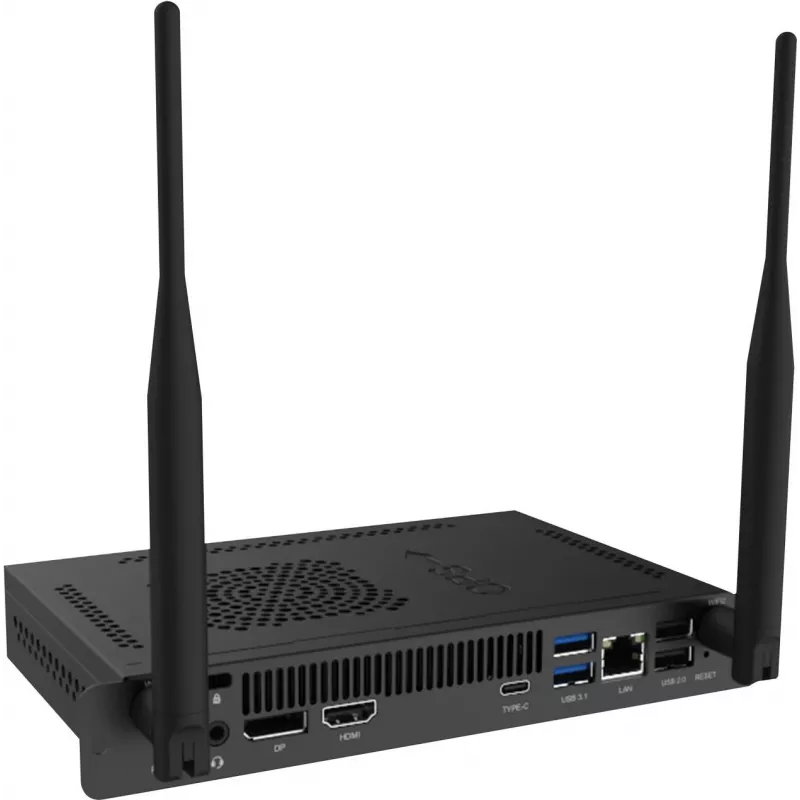

The Legamaster AL OPS computer AL-i5-1235U barebone is an OPS-format compact module built around a 12th generation Intel® Core™ processor. It supports dual-channel DDR4 3200 MHz memory, M.2 SSD storage, Wi‑Fi 6 (802.11ax) and Bluetooth 5.2, and provides both Gigabit Ethernet and high-resolution display output up to 4K@60Hz and 5K@60Hz for ultra-wide 21:9 screens. With small dimensions (180 mm × 119 mm × 30 mm), it is intended for integration into displays and digital signage systems where a standardized OPS form factor is required.

Advantages

The OPS barebone design enables tool-free integration into compatible displays and interactive panels while saving space. Modern connectivity options such as Wi‑Fi 6 and Gigabit Ethernet allow flexible network deployment, and support for M.2 SSD and dual-channel DDR4 memory delivers responsive system performance. Support for 4K and 5K output ensures compatibility with high-resolution professional screens.

Suitable for

• Digital signage and information displays
• Interactive whiteboards and classroom displays
• Conference room and corporate presentation systems
• Thin-client and embedded PC applications where OPS format is required

Key specifications

• Processor generation: 12th generation Intel® Core™
• Memory: Dual-channel DDR4 3200 MHz support
• Storage interface: M.2 SSD slot
• Wireless: 802.11ax (Wi‑Fi 6) and Bluetooth 5.2
• Wired network: Gigabit Ethernet (1000 Mbit/s)
• Video output: up to 4K@60Hz; 5K@60Hz supported for 21:9 displays
• Form factor: Standard OPS module with compact dimensions (180 × 119 × 30 mm)

How to use

Install the AL OPS computer into a compatible OPS slot on the display or interactive panel following the display manufacturer’s instructions. Populate memory modules and an M.2 SSD as required, connect network and peripheral cables if needed, and power the host display to start the module. Configure operating system and drivers appropriate for the installed Intel platform to enable full functionality of wireless, networking and display features.

Recommendations

For reliable operation use certified OPS-compatible displays and keep BIOS and drivers up to date. Choose DDR4 3200 MHz SODIMM modules in matched pairs for optimal dual-channel performance and use an M.2 SSD with sufficient endurance for continuous signage workloads.
