Legrand Plexo NEW 1-násobné puzdro 069601L antracit

With an IP55 protection rating and IK07 impact resistance, this Legrand Plexo NEW 1-gang surface-mounted enclosure is built to withstand dust, water jets, and mechanical shocks in demanding environments. The anthracite thermoplastic body is halogen-free, UV-resistant, and self-extinguishing, making it a safe and durable choice for both indoor and outdoor installations.

Overview

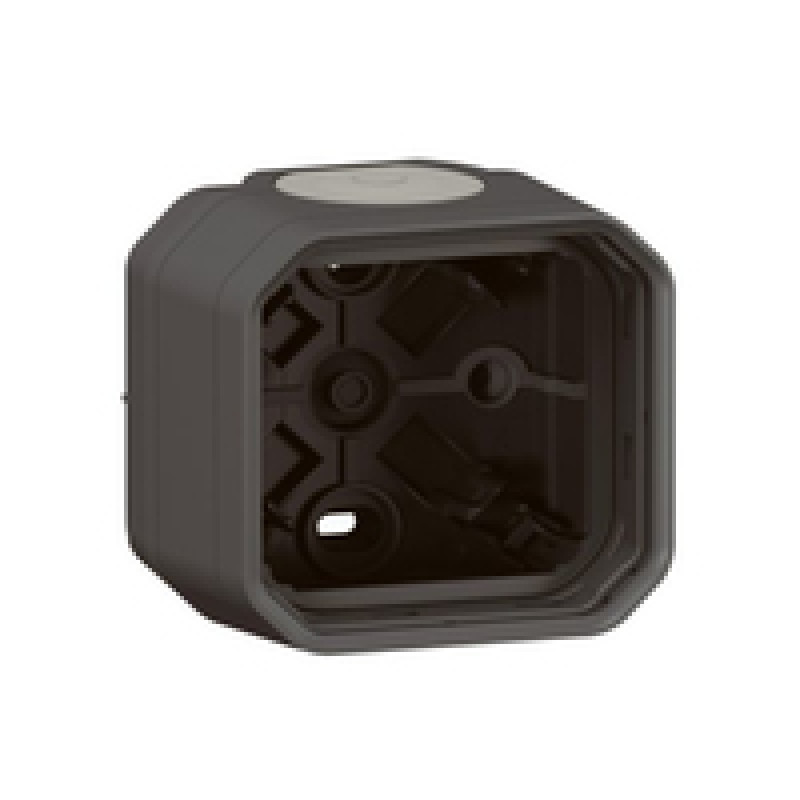

The Legrand Plexo NEW 069601L is a single-gang empty housing designed for surface mounting. It provides a robust and weatherproof base for installing switches, sockets, or push-buttons. The enclosure features a screw-on cover for secure closure and knock-out cable entries for flexible wiring. Its matt anthracite finish blends seamlessly into modern architectural settings.

What stands out

• IP55 rated – protected against dust and low-pressure water jets from any direction.
• IK07 impact resistance – withstands impacts up to 2 joules, ideal for high-traffic areas.
• Halogen-free and self-extinguishing – reduces toxic smoke and fire propagation risk.
• UV-resistant – maintains colour and integrity even under prolonged sun exposure.
• Wide operating temperature range: -25°C to +40°C.
• Complies with IEC 60670-1 and IEC 60670-22 standards.

Technical details

• Series: Plexo
• Type: Empty housing (enclosure only)
• Mounting: Surface-mounted
• Number of gangs: 1
• Material: Thermoplastic
• Colour: Anthracite
• Finish: Matt
• Cover type: Screw-on
• Cable entry: Knock-out entries
• Glow wire test: 750 °C
• Operating temperature: -25°C to +40°C
• Compliance: IEC 60670-1, IEC 60670-22

Our verdict

A rugged and reliable enclosure for professional electrical installations, offering excellent protection and safety features in a sleek anthracite design.
