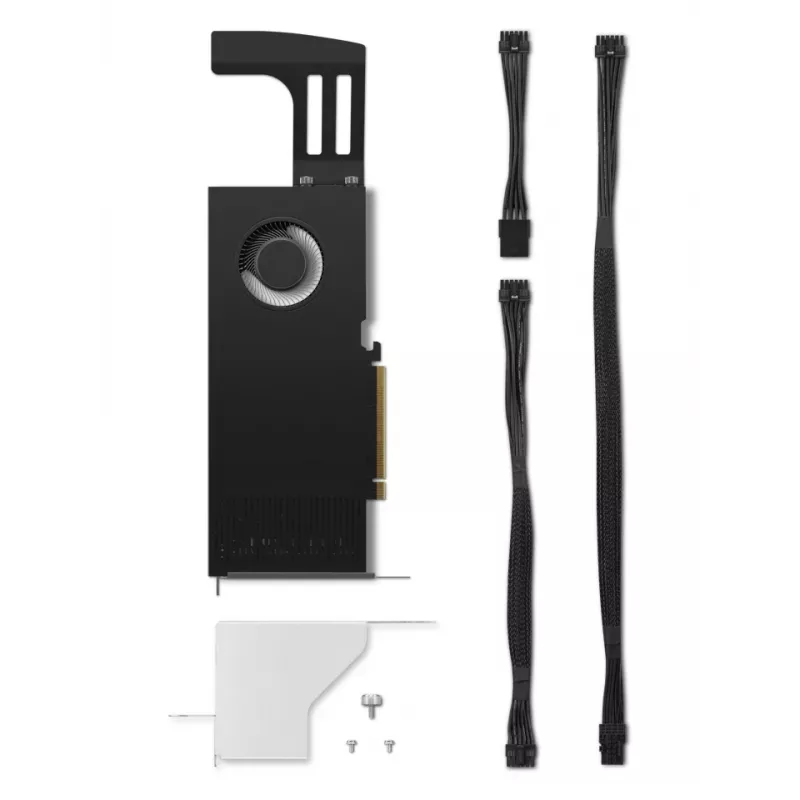

Grafická karta NVIDIA RTX 4000 Ada 20 GB GDDR6

The Graphics Card NVIDIA RTX 4000 Ada 20 GB GDDR6 is a single-slot, 9.5-inch PCI Express Gen4 professional GPU based on NVIDIA's Ada Lovelace architecture. It provides hardware-accelerated ray tracing, advanced AI features, and improved shading and simulation capabilities for creative and professional workflows. The card is actively cooled with a single fan and supports up to 130 W maximum graphics power via a single CEM5 16-pin connector. With 20 GB of GDDR6 memory and ECC protection on a 160-bit memory bus, it is designed to handle large datasets and graphics-intensive applications while supporting modern APIs such as DirectX 12.0 and OpenGL 4.6.

Advantages

The RTX 4000 Ada offers a large 20 GB GDDR6 memory with ECC for improved data integrity, a compact single-slot form factor for flexible system integration, and Gen4 PCIe x16 interface for high bandwidth. Active cooling with one fan maintains performance under sustained loads, while Ada Lovelace architecture brings hardware ray tracing and AI-accelerated features for professional rendering, simulation, and content creation. The card supports resolutions up to 7680 x 4320 and is compatible with current graphics APIs.

Suitable for

• Professional 3D modeling and rendering
• GPU-accelerated simulation and analysis
• High-resolution video editing and color grading
• CAD, CAM and engineering design workflows
• Workstations requiring ECC-protected large framebuffers

Key specifications

• Graphics processor: RTX 4000 Ada (Ada Lovelace architecture)
• Memory: 20 GB GDDR6 with ECC
• Memory bus: 160 bit
• Interface: PCI Express x16 4.0
• Form factor: single-slot, 9.5 inch
• Max graphics power: 130 W (single CEM5 16-pin connector)
• Max resolution: 7680 x 4320
• Supported APIs: DirectX 12.0, OpenGL 4.6
• Weight: 0.974 kg

How to use

Install the card into a PCI Express x16 Gen4 slot on a compatible workstation motherboard and secure it in the chassis. Connect the single CEM5 16-pin power connector from the system power supply and ensure the PSU can deliver the required 130 W for the GPU. Install or update NVIDIA drivers appropriate for the RTX 4000 Ada and configure software settings for your professional applications. Use ECC-enabled workflows and monitor GPU temperatures to ensure stable operation during extended workloads.

Recommendations

For optimal reliability in professional environments, pair the RTX 4000 Ada with a certified workstation platform, a power supply that meets the GPU power requirements, and up-to-date drivers. Enable ECC in applications that support it when working with sensitive data or large datasets.
