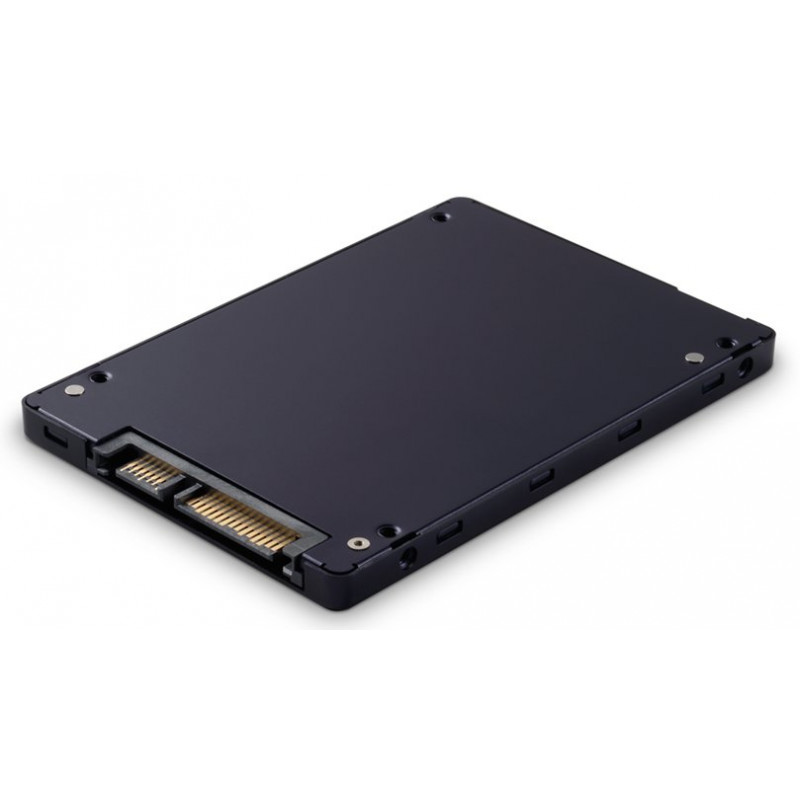

Lenovo ThinkSystem 2,5 palca 5200 960GB Entry SATA SSD

Server storage bottlenecks can cripple application performance and frustrate users. The Lenovo ThinkSystem 2.5" 5200 960GB Entry SATA SSD tackles this by delivering fast, reliable solid-state storage for Lenovo ThinkSystem servers. Built with 3D TLC NAND and a SATA 6Gb/s interface, it accelerates read-intensive workloads such as boot, web serving, and virtualization.

Who is it for

This drive is ideal for IT administrators and data center managers who need a cost-effective upgrade from traditional hard drives. It suits businesses running Lenovo ThinkSystem servers that require better I/O performance, lower latency, and higher reliability for entry-level enterprise applications.

Main features

• 960 GB capacity in a 2.5-inch form factor
• SATA 6Gb/s interface for broad compatibility
• Sequential read speeds up to 540 MB/s and write speeds up to 500 MB/s
• Random read performance up to 95,000 IOPS and write up to 33,000 IOPS
• High endurance rated at 8760 TBW (1.7 drive writes per day for 5 years)
• Hot-swap support for easy serviceability
• Power loss protection and end-to-end data path protection
• Mean time between failures (MTBF) of 2,000,000 hours

Specifications

• Capacity: 960 GB
• Form factor: 2.5-inch
• Interface: SATA 6Gb/s (SATA III)
• NAND flash: 3D TLC
• Sequential read: up to 540 MB/s
• Sequential write: up to 500 MB/s
• Random read (4KB): up to 95,000 IOPS
• Random write (4KB): up to 33,000 IOPS
• Endurance: 8760 TBW
• MTBF: 2,000,000 hours
• Power consumption (active): approximately 4.5 W
• Operating temperature: 0°C to 70°C
• Data protection: power loss protection, end-to-end data path protection
• Compatibility: Lenovo ThinkSystem servers

Tips

To maximize performance, install this SSD in a drive bay that supports SATA 6Gb/s and ensure your server firmware is up to date. For mixed workloads, consider using it as a boot or caching drive alongside higher-performance NVMe storage. Always follow Lenovo's hot-swap procedures to avoid data loss.
