LevelOne 5-portový Gigabit priemyselný switch, DIN lišta, -30 °C až 65 °C

The LevelOne IGP-0501 is a 5-port Gigabit industrial Ethernet switch designed for mission-critical and harsh environments. It provides four Gigabit RJ-45 ports with PoE (Power over Ethernet) support and one Gigabit SFP slot for fiber connectivity. The switch supports IEEE 802.3af and IEEE 802.3at standards, delivers up to 30 W per PoE port, and accepts a DC input voltage in the 48–57 V range. The durable metal housing and DIN-rail/wall-mountable design suit installations where temperature ranges and space constraints are a factor.

Advantages

The IGP-0501 integrates PoE Power Sourcing Equipment functionality to supply power to compatible devices directly over Ethernet, reducing separate power cabling and the number of required UPS units. The inclusion of a Gigabit SFP port allows flexible uplink choices via pluggable transceivers. Visible status LEDs simplify monitoring of link and port activity. The switch supports standard Gigabit Ethernet protocols and industrial operating temperatures, making it suitable for reliable network deployment in harsh conditions.

Suitable for

• IP cameras and video surveillance systems
• Industrial automation and control networks
• Access points and wireless backhaul in outdoor or factory settings
• Small aggregation points requiring fiber uplink

Key specifications

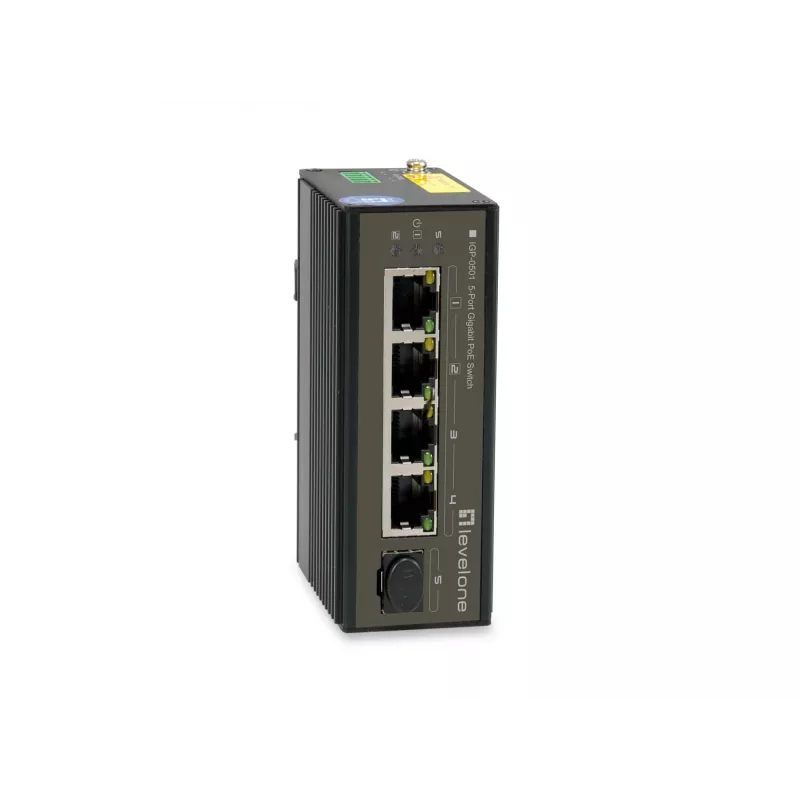

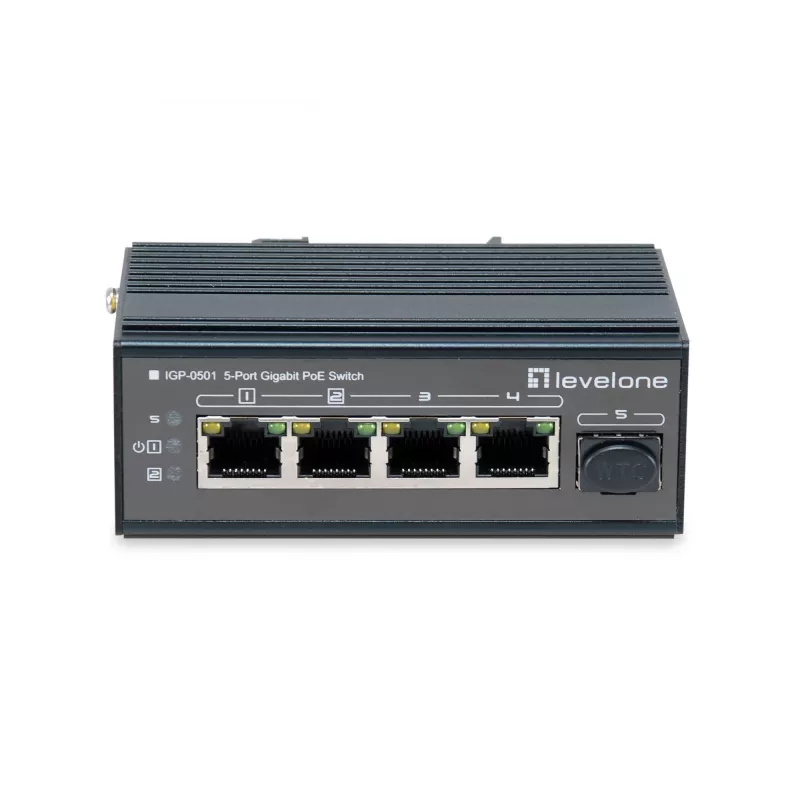

• Ports: 4 × Gigabit RJ-45 (10/100/1000) with PoE, 1 × Gigabit SFP
• PoE standard: IEEE 802.3af and IEEE 802.3at (up to 30 W per port)

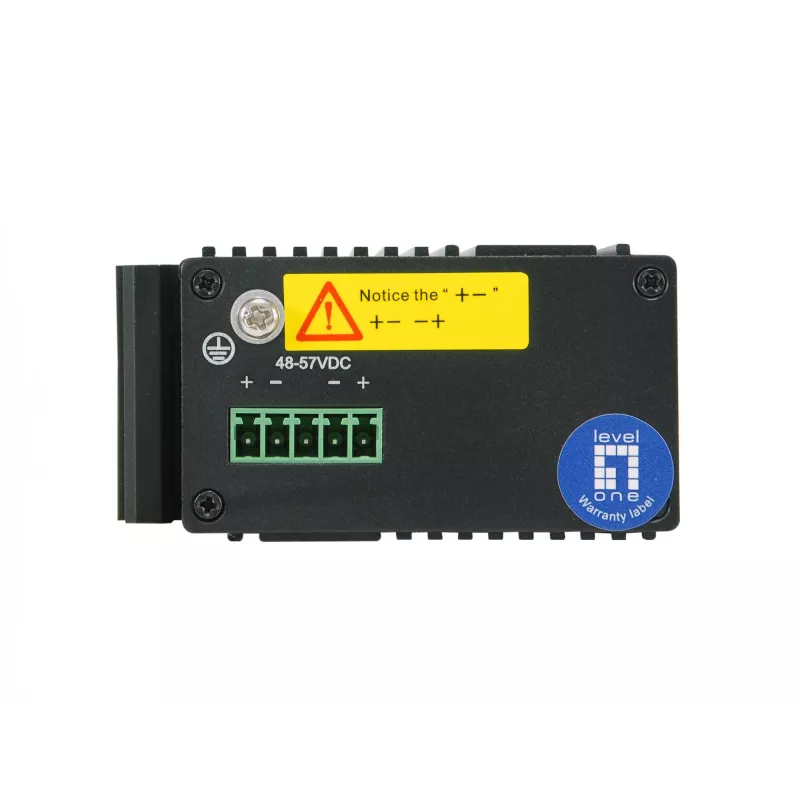

• Input voltage: DC 48–57 V
• Networking standards: IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3x
• Operating temperature: suitable for industrial environments (refer to manufacturer data)
• Weight: 0.35 kg
• Color: Black

How to use

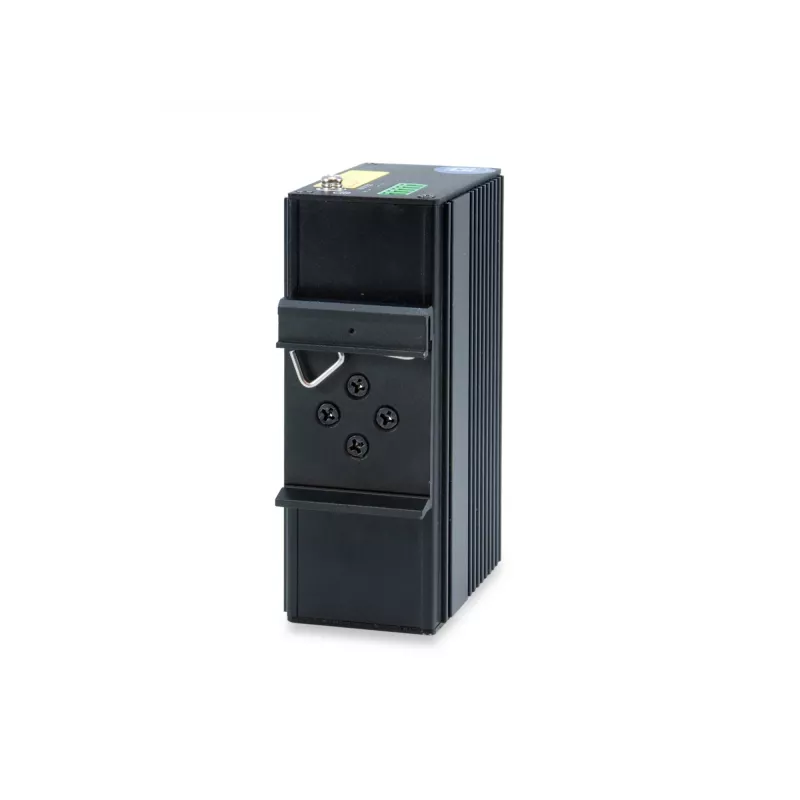

Mount the switch on a DIN rail or secure it to a wall or cabinet using the supplied mounting hardware. Connect the DC power input within the specified 48–57 V range. Attach network devices to the RJ-45 ports and, if required, insert a compatible SFP transceiver into the SFP slot for fiber uplink. PoE-capable devices will receive power automatically when connected to PoE ports, up to the port power budget. Monitor port link/activity LEDs to verify connectivity and status.

Recommendations

Use Category-rated Ethernet cables (Cat5e or higher) for Gigabit performance, choose compatible SFP modules that match the remote uplink media and wavelength, and ensure the total PoE power budget meets connected devices’ requirements to avoid overload.
