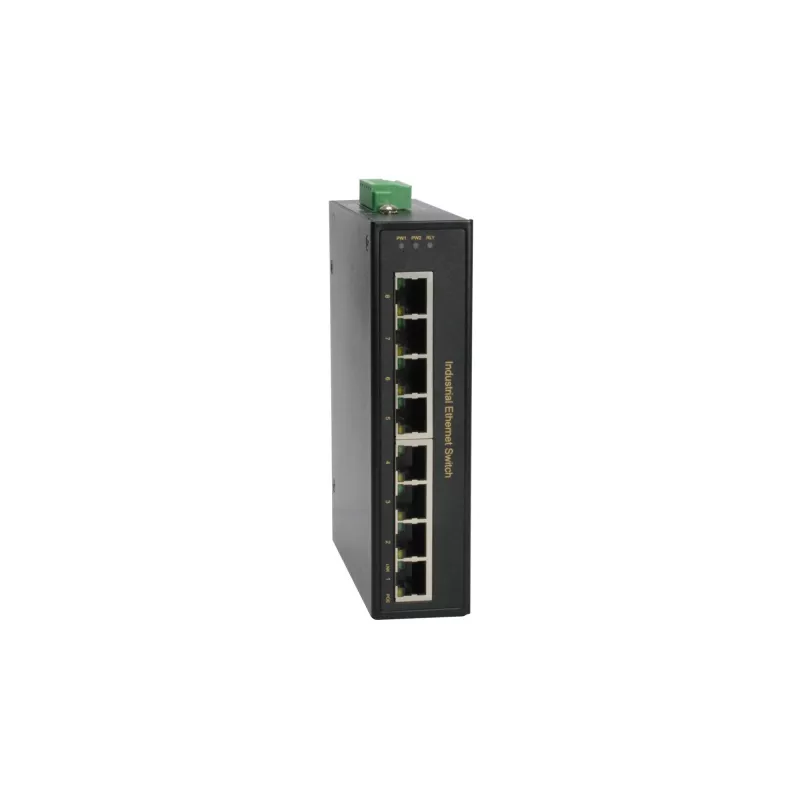

LevelOne 8-portový Fast Ethernet priemyselný PoE switch, 4 PoE výstupy, 802.3at/af PoE, 126W, -40°C až 75°C

The LevelOne IFP-0801 is an industrial 8-port 10/100 Mbps high-power PoE switch with four ports capable of supplying up to 30 W each. Designed for 48–56 VDC input, it is intended for IP surveillance, traffic monitoring and other applications requiring reliable PoE power in harsh environments. The compact metal housing and multiple mounting options allow installation in vehicles such as buses and trucks or in fixed industrial and telecommunications setups.

Advantages

The switch supports IEEE 802.3at on PoE ports to power higher-load devices, operates across a wide temperature range from 40°C to 75°C, and provides flexible mounting on DIN-rail, wall or desktop. Its IP30 metal case and redundant power inputs with both terminal block and DC jack increase reliability for security, transportation and telco deployments.

Key specifications

• Ports: 8 x 10/100 Mbps ports, auto-negotiation, auto MDI/MDIX
• PoE: 4 PoE PSE ports, up to 30 W per port, IEEE 802.3at compliant
• Input voltage: 48–56 VDC
• Operating temperature: -40°C to 75°C
• Housing: IP30 metal case
• Mounting: DIN-rail, wall or desktop

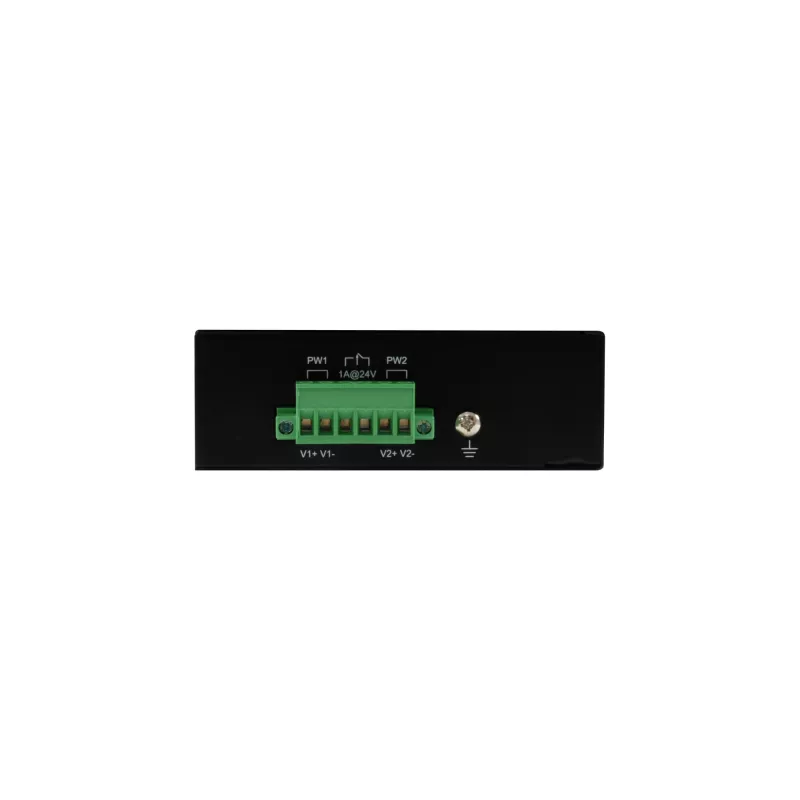

• Power inputs: redundant inputs via terminal block and DC jack

How to use

Connect a 48–56 VDC power source to the terminal block or DC jack and mount the switch using the chosen method (DIN-rail, wall or desktop). Attach IP cameras, traffic sensors or other network devices to the 10/100 Mbps ports; PoE-capable devices connected to the four PSE ports will receive up to 30 W each when using IEEE 802.3at-compatible equipment. The switch performs auto-negotiation and auto MDI/MDIX for straightforward link setup.

Recommendations

Verify that connected devices support IEEE 802.3at to utilize 30 W PoE and ensure the power source can supply sufficient current for all powered devices. For vehicle installations, confirm secure mounting and vibration isolation according to vehicle specifications.
