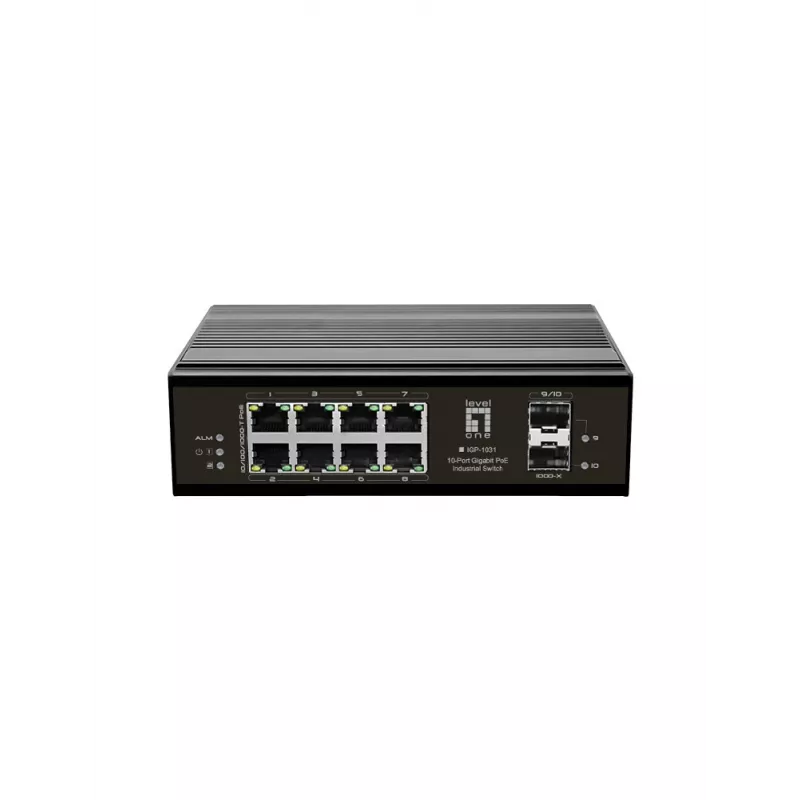

LevelOne IGP-1031 sieťový switch Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) čierna

The LevelOne IGP-1031 Gigabit Ethernet PoE switch delivers eight Gigabit RJ-45 ports with Power over Ethernet and two Gigabit SFP slots for fiber connectivity. Designed for industrial applications, the switch supports IEEE standards (including 802.1ab, 802.1af and 802.3at), provides a MAC address table of 8,000 entries and accepts a 48–57 V DC input. Housed in a black, DIN-rail mountable enclosure with visible status LEDs, the IGP-1031 is intended to power and connect devices such as IP cameras and wireless access points while offering high-speed network performance.

Advantages

The LevelOne IGP-1031 integrates PoE Power Sourcing Equipment (PSE) capability compliant with IEEE 802.3af/at, delivering up to 30 W per port, which simplifies installation by reducing separate power wiring and UPS requirements. Two Gigabit SFP slots provide flexible fiber uplink options via pluggable transceivers. The rugged DIN-rail form factor and clear port LEDs enable straightforward mounting and on-site status monitoring for mission-critical industrial deployments.

Suitable for

• Connecting and powering IP cameras in surveillance systems
• Supplying PoE to wireless access points and VoIP phones
• Industrial or cabinet-mounted network installations requiring fiber uplinks
• Small to medium PoE networks needing Gigabit switching

Key specifications

• Ports: 8 × Gigabit RJ-45 (10/100/1000) with PoE, 2 × Gigabit SFP slots
• PoE standard: IEEE 802.3af/at, up to 30 W per port
• MAC address table: 8,000 entries
• Input voltage: DC 48–57 V
• Networking standards: IEEE 802.1ab, IEEE 802.1af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
• Mounting: DIN-rail
• Colour: Black
• Weight: 1 kg

How to use

Mount the IGP-1031 on a DIN-rail inside the equipment cabinet and connect a suitable 48–57 V DC power source to the DC input. Insert required SFP transceivers into the SFP slots if fiber uplinks are needed. Connect PoE-enabled devices to the RJ-45 ports; the switch will provide power automatically according to IEEE 802.3af/at. Monitor port link and activity using the front panel status LEDs to verify connections and diagnose link issues.

Recommendations

Use appropriate PoE budgeting when connecting multiple high-power devices to ensure the total power draw does not exceed the switch’s available PoE budget. For outdoor or harsh environments, install the switch within a suitable protective cabinet and use compatible SFP modules certified for the required fiber type and distance.
