LevelOne POI-3014 PoE adaptér Fast Ethernet, Gigabit Ethernet 52 V

The LevelOne POI-3014 PoE adapter is a Power over Ethernet injector that provides up to 30 W of DC power over existing Ethernet cabling while carrying data at Fast and Gigabit Ethernet speeds (10/100/1000 Mbit/s). Compliant with IEEE 802.3 standards and operating at 52 V, the compact POI-3014 (145.7 x 64.4 x 43.4 mm) is designed to add remote power to network devices without replacing non‑PoE switches.

Advantages

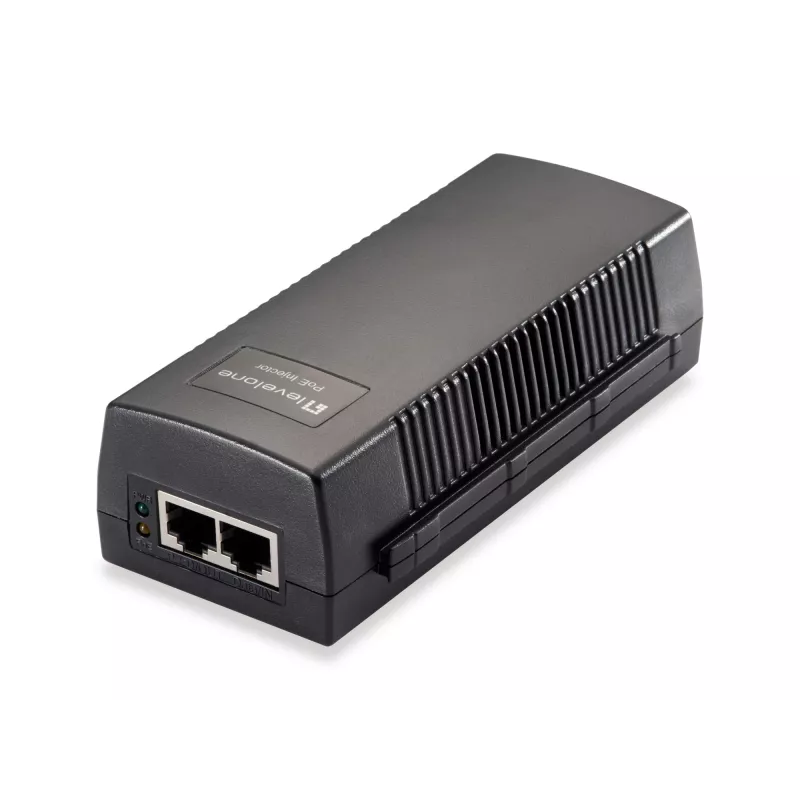

The POI-3014 merges DC power and network data into a single Ethernet link, enabling power delivery up to 100 m from the switch and eliminating the need to install additional power outlets near Powered Devices. Its compact black housing includes LED indicators for PoE and power status, supports Fast and Gigabit Ethernet rates, and conforms to IEEE 802.3 standards for compatibility with a wide range of network equipment.

Suitable for

• Powering PoE network cameras
• Supplying power to wireless access points via PoE splitter
• Extending power and data to remote PDs up to 100 m
• Adding PoE capability to existing non‑PoE switches

Key specifications

• Model: LevelOne POI-3014
• Data rates: 10/100/1000 Mbit/s (Fast and Gigabit Ethernet)
• PoE voltage: 52 V
• Maximum power to PD: up to 30 W (per injector)
• Maximum cable distance: 100 m
• Ports: 2 × Ethernet (RJ‑45)
• Standards: IEEE 802.3 compliant

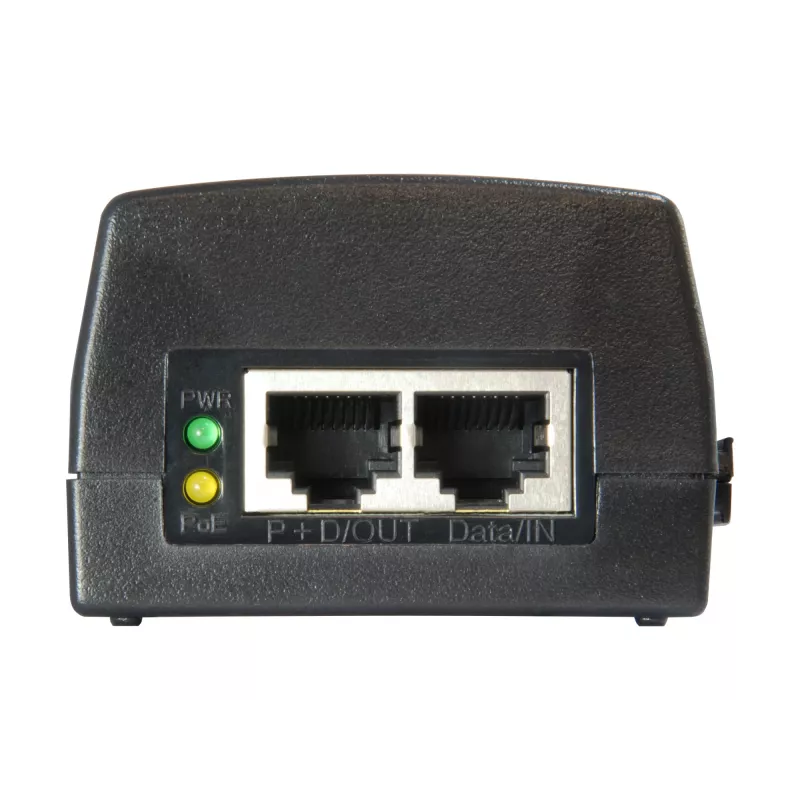

• Indicators: PoE and power LEDs
• Dimensions: 145.7 × 64.4 × 43.4 mm
• Colour: Black
• Weight: 0.35 kg

How to use

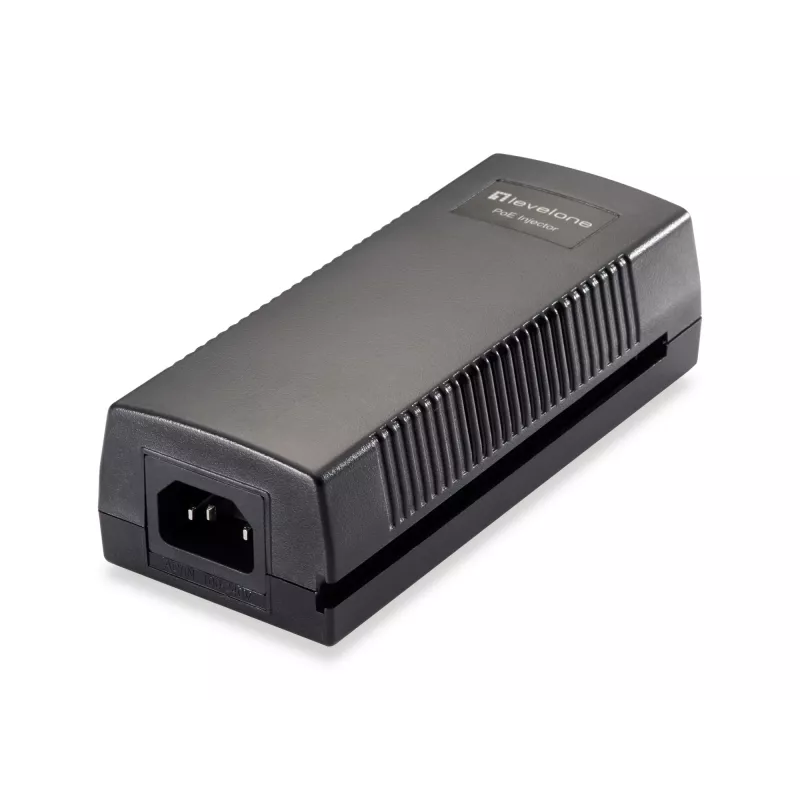

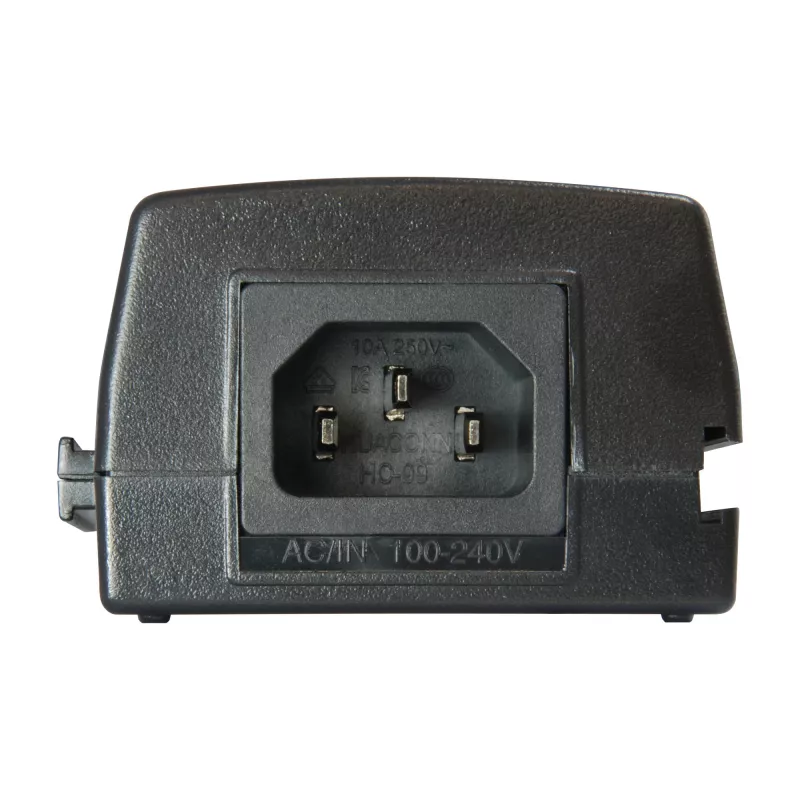

Connect the POI-3014 injector between a non‑PoE switch and the Powered Device using standard Ethernet cables: plug the switch uplink into the data input port of the injector and connect the injector output port to the PD (for example a PoE camera). Ensure the injector is connected to a suitable AC power source so it can supply the specified 52 V DC to the PD. If powering non‑PoE devices, add a PoE splitter at the PD end to separate power and data into two cables.

Recommendations

Install the POI-3014 within 100 m of the switch to maintain Ethernet reliability, verify compatibility with your PDs and IEEE 802.3 PoE requirements, and use quality CAT5e or better cabling to support Gigabit speeds and stable power delivery.
