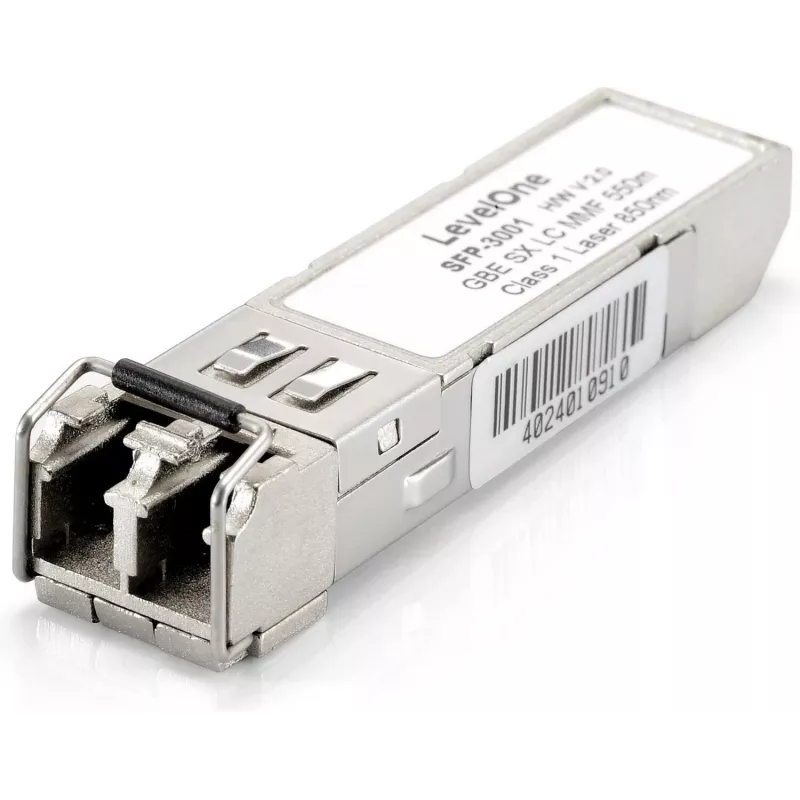

LevelOne SFP Transceiver 1.25Gbps MM Duplex LC 850nm 550m

The LevelOne SFP Transceiver is a high-performance, hot-pluggable Small Form-Factor Pluggable (SFP) module designed for Gigabit Ethernet applications. It supports data rates up to 1.25 Gbps over multi-mode fiber (MMF) with a duplex LC connector, operating at a wavelength of 850 nm and reaching distances up to 550 meters. This transceiver is IEEE 802.3z and SFP MSA compliant, ensuring broad compatibility with networking equipment.

Advantages

This SFP transceiver offers reliable, high-speed connectivity for enterprise networks, data centers, and telecommunications. With Digital Diagnostic Monitoring (DDM/DOM) support, it enables real-time monitoring of optical parameters for proactive network management. Its hot-pluggable design allows for easy installation and replacement without disrupting network operations. The metal housing provides excellent EMI shielding, reducing interference.

Suitable for

• Gigabit Ethernet connections in LANs and SANs
• Fiber optic backbone links in enterprise networks
• Data center interconnects
• Telecommunications and ISP infrastructure

Key specifications

• Form Factor: SFP
• Data Rate: 1.25 Gbps
• Fiber Type: Multi-Mode Fiber (MMF)
• Wavelength: 850 nm
• Max Distance: 550 m
• Connector: Duplex LC
• DDM/DOM: Yes
• Hot-Pluggable: Yes
• Power Consumption: < 1 W
• Operating Temperature: 0°C to 70°C

Recommendations

For optimal performance, pair this transceiver with OM2 or OM3 multi-mode fiber cables. Ensure your switch or router supports SFP modules and is configured for the appropriate wavelength and distance. This module is ideal for short-to-medium range fiber optic connections within buildings or campuses.
