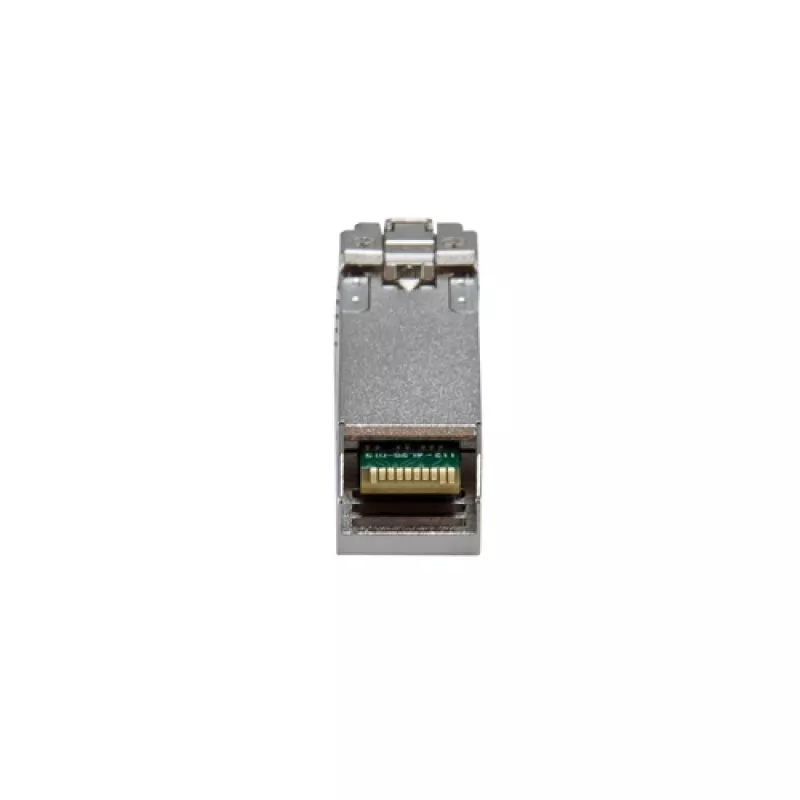

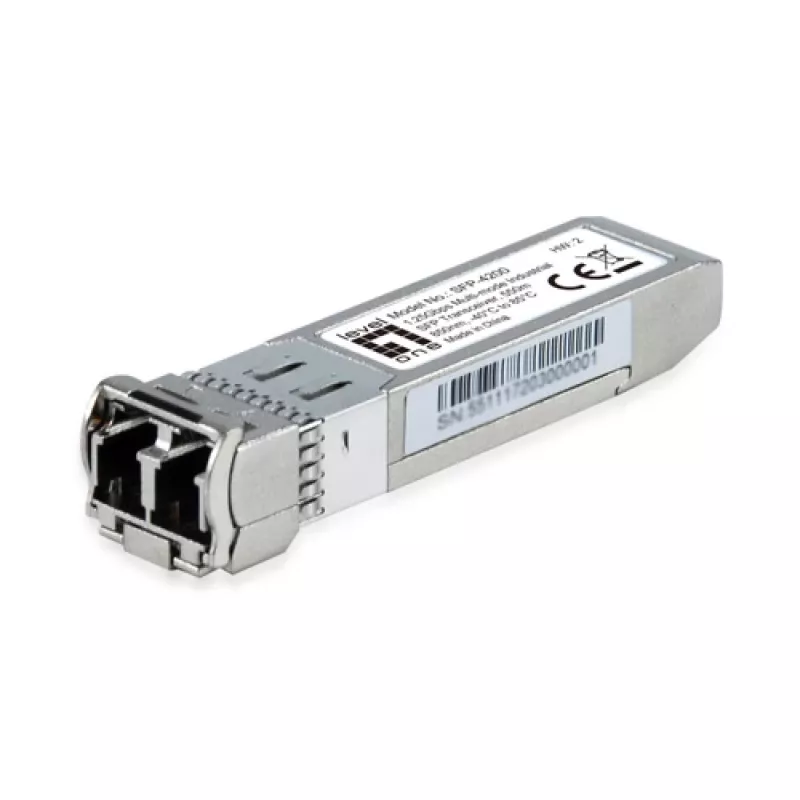

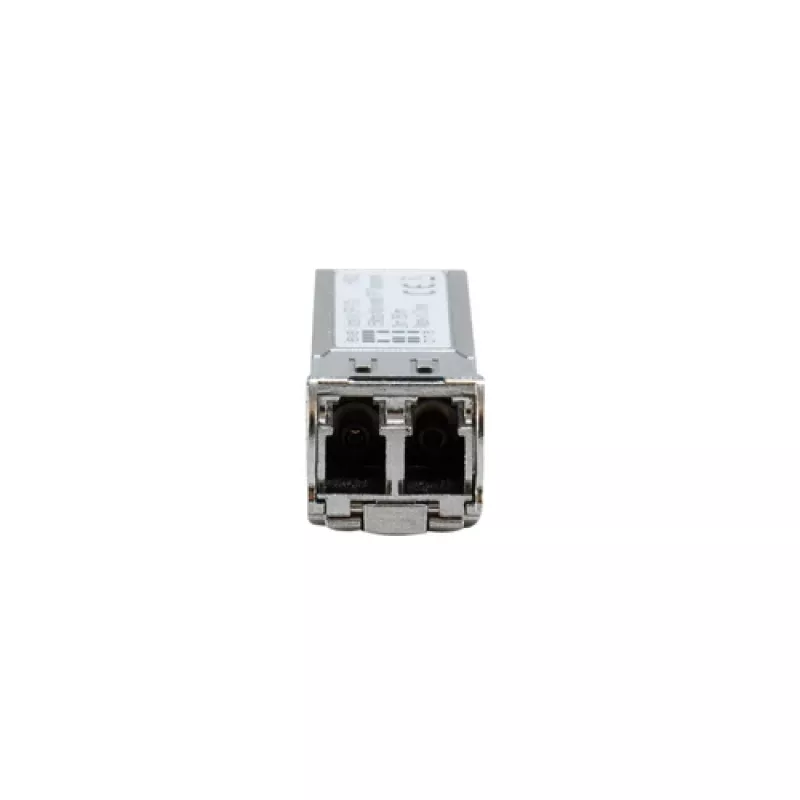

LevelOne SFP transceiver 1.25Gbps MM Duplex LC 850nm 550m

The LevelOne SFP Transceiver is a high-performance, hot-swappable Small Form-Factor Pluggable (SFP) module designed for Gigabit Ethernet applications. It operates at a data rate of 1.25 Gbps over multi-mode fiber (MMF) with a wavelength of 850 nm, supporting transmission distances up to 550 meters. This transceiver features a Duplex LC connector and complies with IEEE 802.3z 1000BASE-SX standards, ensuring reliable and efficient network connectivity.

Advantages

This SFP module offers seamless integration into existing network infrastructure, providing cost-effective and scalable fiber optic connectivity. Its hot-swappable design allows for easy installation and replacement without disrupting network operations. With Digital Diagnostic Monitoring (DDM) support, real-time monitoring of optical parameters enhances network management and troubleshooting.

Suitable for

• Gigabit Ethernet networks requiring reliable fiber optic connections
• Data centers, enterprise networks, and telecommunications
• Connecting switches, routers, and media converters over multi-mode fiber

Key specifications

• Product Type: SFP Transceiver Module
• Data Rate: 1.25 Gbps
• Fiber Type: Multi-Mode Fiber (MMF)
• Wavelength: 850 nm
• Max Transmission Distance: 550 m
• Connector Type: Duplex LC
• Form Factor: SFP
• Standard Compliance: IEEE 802.3z 1000BASE-SX
• Hot-Swappable: Yes
• Digital Diagnostic Monitoring (DDM): Yes
• Power Supply Voltage: 3.3 V
• Operating Temperature: 0°C to 70°C
• Transmitter Type: VCSEL
• Receiver Type: PIN Diode
• Duplex Mode: Full Duplex
• Certifications: CE, FCC, RoHS

Recommendations

For optimal performance, pair this transceiver with compatible LevelOne switches or other IEEE 802.3z compliant devices. Ensure the use of appropriate multi-mode fiber patch cables with LC connectors.
