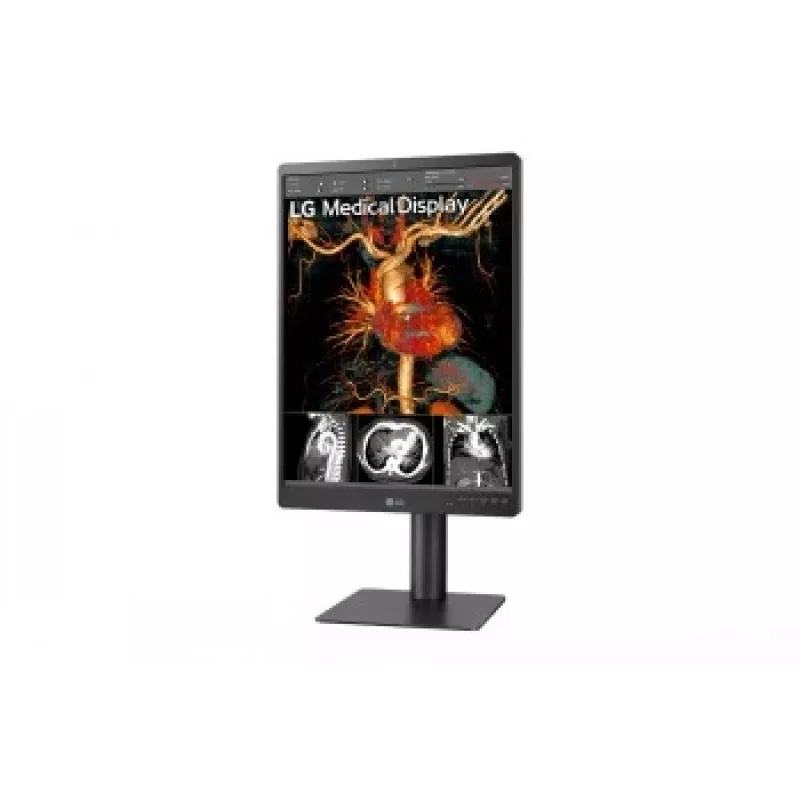

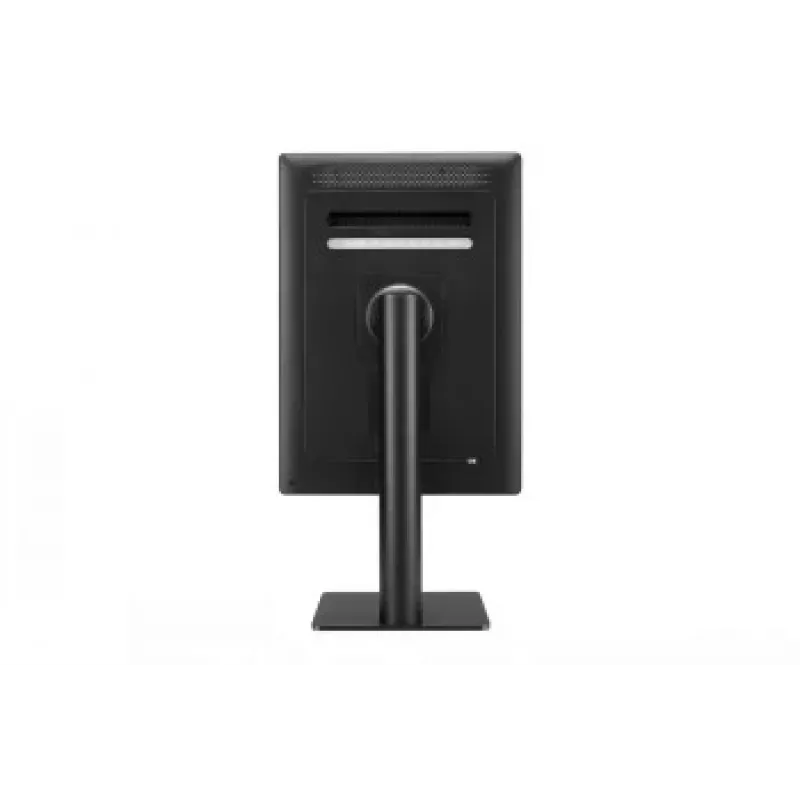

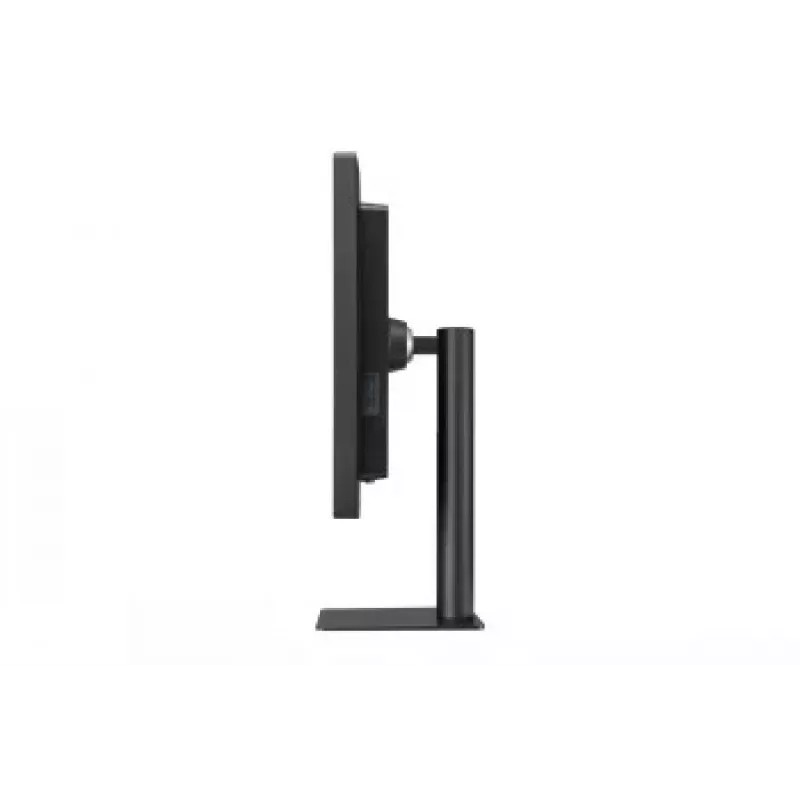

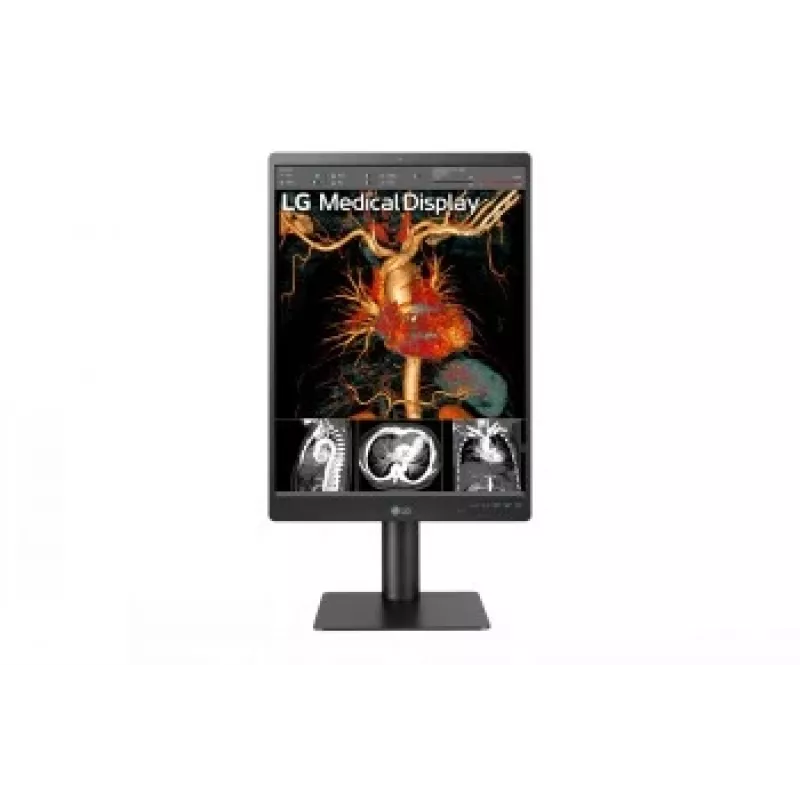

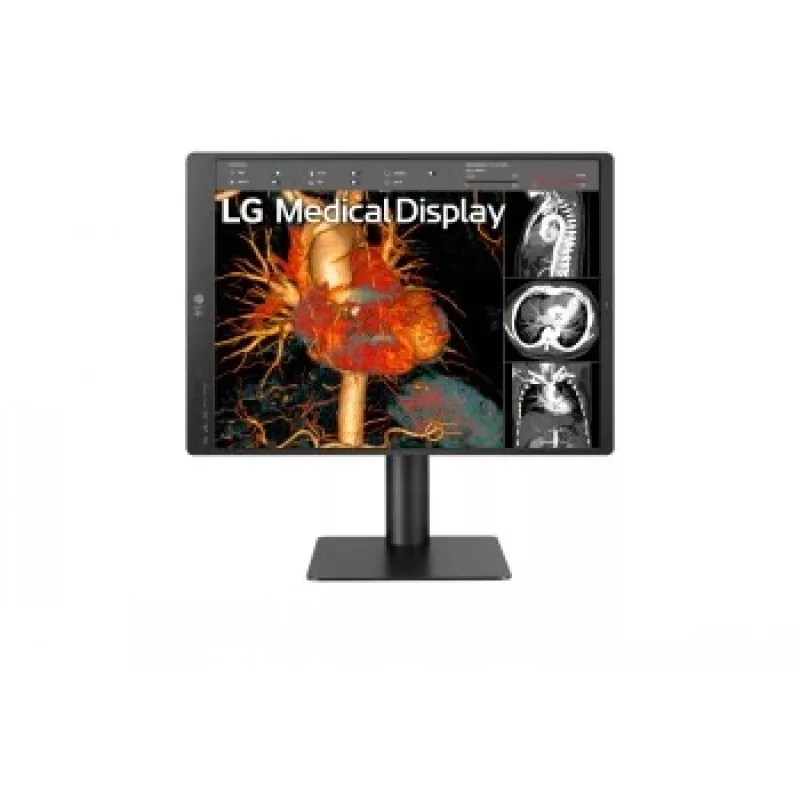

LG 21.3 palcov 3MP IPS diagnostický monitor 21HQ513D-M

The LG 21HQ513D-M is a high-performance 21.3-inch diagnostic monitor designed for medical imaging professionals. With a 3MP resolution (1536 x 2048) and IPS panel technology, it delivers exceptional image clarity and color accuracy, meeting the rigorous demands of PACS, RIS, and other clinical applications. The monitor features DICOM Part 14 compliance with hardware calibration, ensuring consistent grayscale reproduction for accurate diagnosis.

Advantages

This monitor offers superior brightness (1000 cd/m²) and contrast ratio (1500:1) for clear visualization of subtle details in X-rays, CT scans, and MRIs. The 10-bit color depth (1.07 billion colors) provides smooth gradations, while the auto luminance sensor and presence sensor enhance workflow efficiency and energy savings. The ergonomic stand with height adjust, tilt, swivel, and pivot allows comfortable viewing from any angle.

Suitable for

• Radiology departments
• Hospitals and clinics
• Telemedicine and remote diagnosis
• Medical imaging workstations

Key specifications

• Display Size: 21.3 inches
• Resolution: 1536 x 2048 (3MP)
• Panel Type: IPS
• Aspect Ratio: 3:4
• Brightness: 1000 cd/m² (Typical)
• Contrast Ratio: 1500:1 (Typical)
• Response Time: 25ms (GtG)
• Viewing Angle: 178° (H) / 178° (V)
• Color Depth: 10-bit (1.07 Billion Colors)
• DICOM Part 14 Compliance: Yes (Hardware Calibration)
• Video Input Ports: 1x DisplayPort, 1x HDMI
• USB Hub: 1x USB 2.0 Upstream, 2x USB 2.0 Downstream
• Ergonomics: Height Adjust (110mm), Tilt (-5°~20°), Swivel (0°~355°), Pivot (Bi-directional)
• Special Features: Auto Luminance Sensor, Presence Sensor, Backlight Stabilization, PBP/PIP
• Medical Certifications: CE, FDA Class I, cTUVus
• VESA Mount Compatibility: 100 x 100 mm
• Power Consumption (Typical): 28W

Recommendations

For optimal diagnostic performance, pair this monitor with a calibrated graphics card and use in a controlled lighting environment. Regular calibration is recommended to maintain DICOM compliance.
