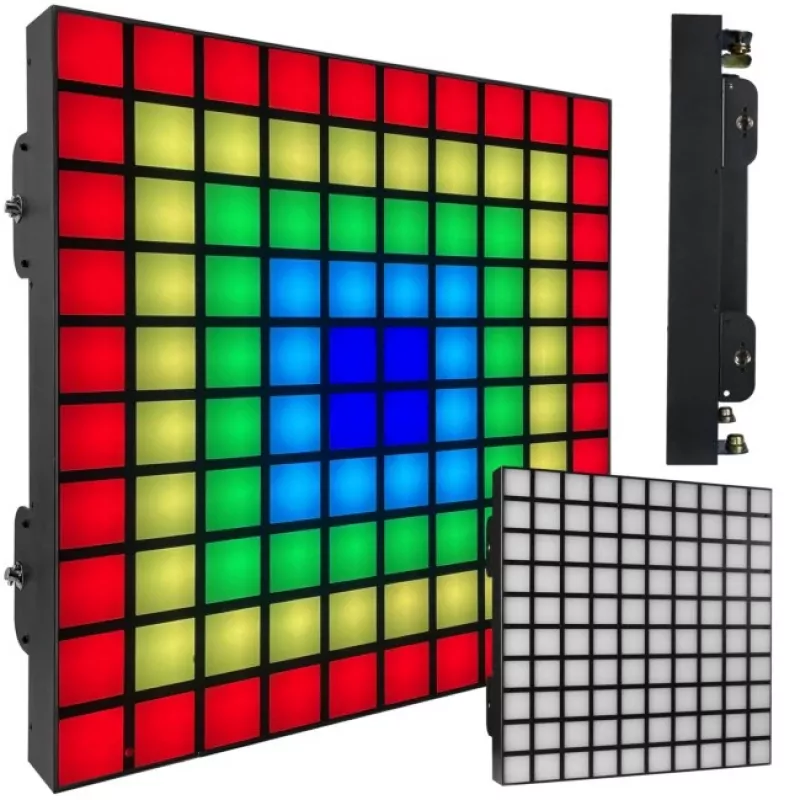

LIGHT4ME MATRIX PANEL 1010 RGB svetelný efekt

The LIGHT4ME MATRIX PANEL 1010 is a versatile RGB lighting effect fixture featuring a 10x10 matrix of 100x 3W RGB 3-in-1 LEDs. Ideal for stage, event, and architectural lighting, it offers multiple control options including DMX512, auto, sound-active, and master/slave modes. With a pixel pitch of 50 mm and a beam angle of 20°, it delivers stunning visual effects.

Advantages

High refresh rate of 3000 Hz ensures flicker-free operation. Electronic dimming (0-100%) and strobe (0-20 Hz) provide dynamic control. Durable metal housing with IP20 rating for indoor use. Long LED lifespan of over 50,000 hours reduces maintenance.

Suitable for

• Stage and theater lighting
• Nightclubs and entertainment venues
• Architectural accent lighting
• Event and party decoration

Key specifications

• Light Source: 100x 3W RGB 3-in-1 LEDs
• Pixel Configuration: 10x10 Matrix
• Pixel Pitch: 50 mm
• Control Protocol: DMX512, Auto, Sound-Active, Master/Slave
• DMX Channels: 3, 4, 5, 6, 10, 15, 30, 35, 300, 305 (selectable)
• DMX Connectors: 3-pin XLR In/Out, 5-pin XLR In/Out
• Power Connector: PowerCON In/Out
• Power Consumption: Max. 150W
• Beam Angle: 20°
• Refresh Rate: 3000 Hz
• Dimmer: 0-100% Electronic Dimming
• Strobe: 0-20 Hz
• Display: LCD Control Display
• Housing Material: Metal
• Mounting: 2x Omega Brackets
• Operating Temperature: -10°C to 40°C
• IP Rating: IP20 (Indoor Use)
• LED Lifespan: >50,000 hours
• Input Voltage: 100-240V AC, 50/60Hz
• Color Mixing: RGB Full Color Mixing

Recommendations

For optimal performance, use with a compatible DMX controller and ensure proper ventilation. Ideal for creating eye-catching pixel mapping effects.
