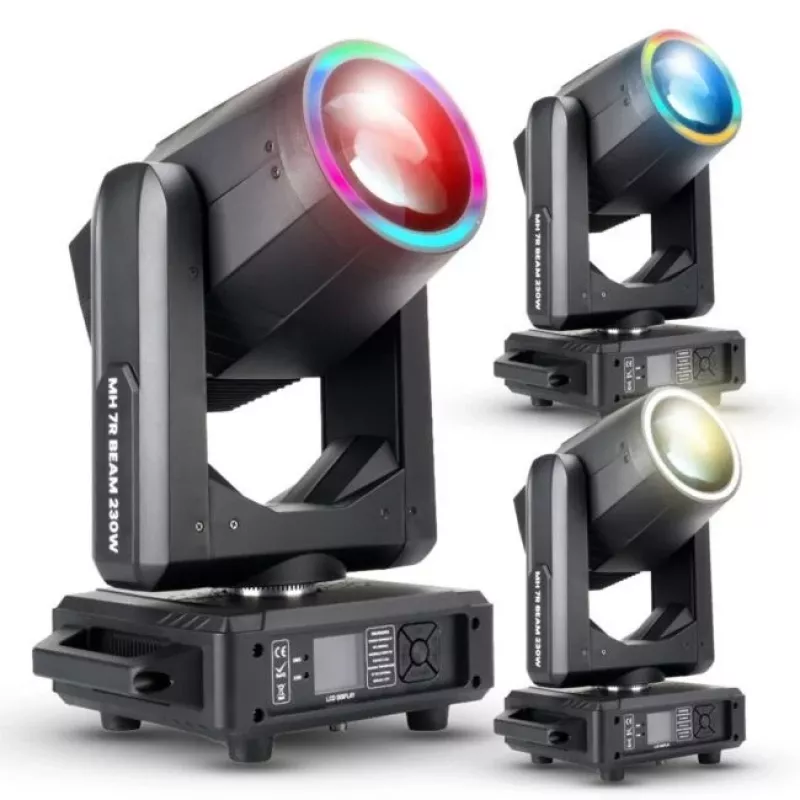

LIGHT4ME MH 7R BEAM 230W Moving Head Beam svetlo

Professional lighting designers and event production teams often struggle to find a compact yet powerful beam fixture that delivers razor-sharp aerial effects, intense output, and reliable performance without breaking the budget. The LIGHT4ME MH 7R BEAM 230W moving head solves this by combining a high-output 230W 7R discharge lamp with precision optics, fast movements, and a full suite of creative tools in a road-ready package.

Who is it for

This fixture is ideal for mobile DJs, clubs, touring bands, rental houses, and stage productions that demand punchy, long-throw beams and dynamic effects. Whether you're lighting a small venue or a mid-sized concert, the MH 7R BEAM delivers the intensity and speed needed to create memorable light shows.

Main features

• 230W 7R discharge lamp (Philips MSD Platinum 7R equivalent) with approximately 2000 hours of lamp life
• Ultra-narrow 0-3.8° beam angle for concentrated, long-throw aerial effects
• 14 dichroic colours plus open, with variable speed colour wheel
• 17 fixed gobos plus open for versatile beam shaping
• 8-facet rotating prism for spectacular split-beam effects
• Motorized linear focus for crisp gobo projection at any distance
• Frost filter for softening the beam when needed
• 0-100% linear electronic dimmer and 1-13 Hz strobe
• 540° pan and 270° tilt with 8/16-bit resolution for smooth, precise movement
• Multiple control modes: DMX512 (16 channels), auto, sound active, master/slave
• LCD graphic display for easy menu navigation and addressing
• PowerCon input

Specifications

• Light Source: 230W 7R Lamp (e.g., Philips MSD Platinum 7R equivalent)
• Lamp Life: Approx. 2000 hours
• Beam Angle: 0-3.8°
• Color Wheel: 14 dichroic colors + open
• Gobo Wheel: 17 fixed gobos + open
• Prism: 8-facet rotating prism
• Frost Filter: Yes
• Focus: Motorized linear focus
• Dimmer: 0-100% linear electronic dimmer
• Strobe: 1-13 flashes per second
• Pan Movement: 540° (8/16-bit)
• Tilt Movement: 270° (8/16-bit)
• Control Modes: DMX512, Auto, Sound Active, Master/Slave
• DMX Channels: 16 channels
• Display: LCD graphic display
• Power Consumption: Max. 350W
• Power Supply: AC 100-240V, 50/60Hz
• DMX Connectors: 3-pin XLR In/Out
• Power Connector: PowerCon In
• IP Rating: IP20

Tips

To maximize lamp life, avoid frequent on/off cycles and allow proper cooling. Use a DMX terminator at the end of long signal chains to prevent erratic behavior. For best beam visibility, use haze or fog to reveal the aerial effects.
