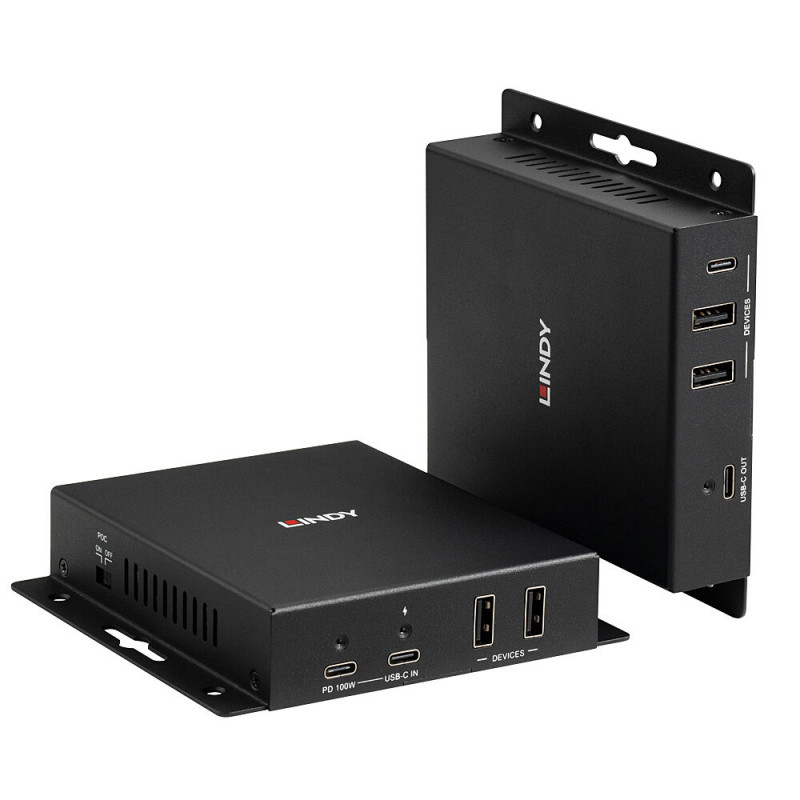

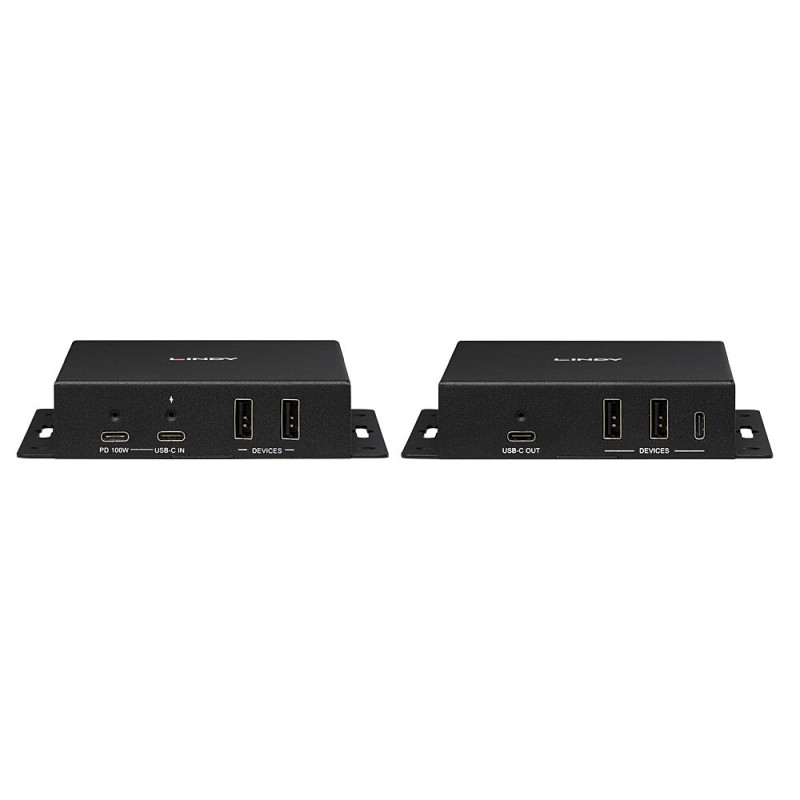

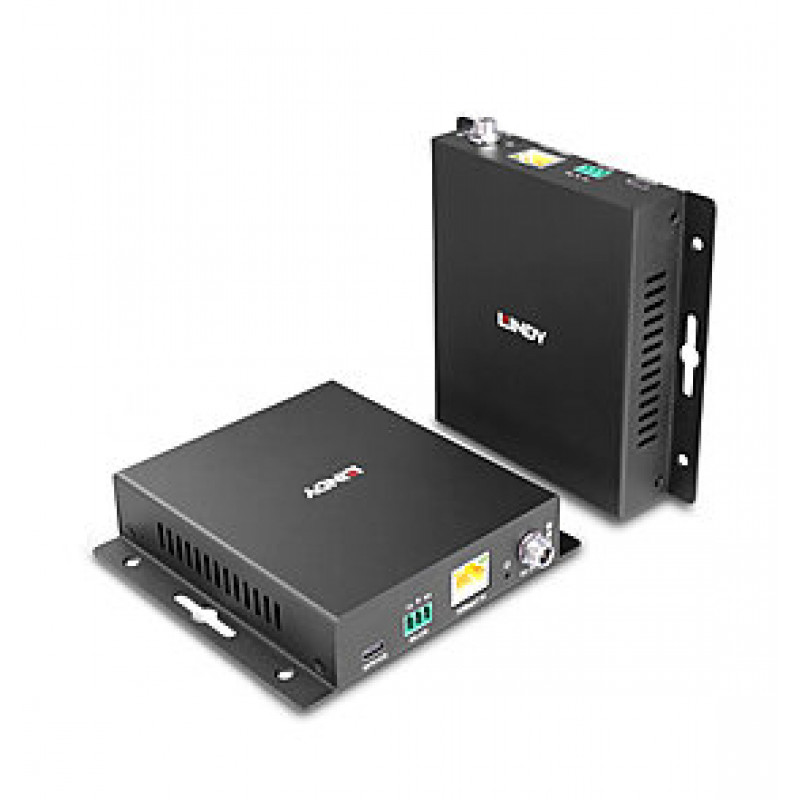

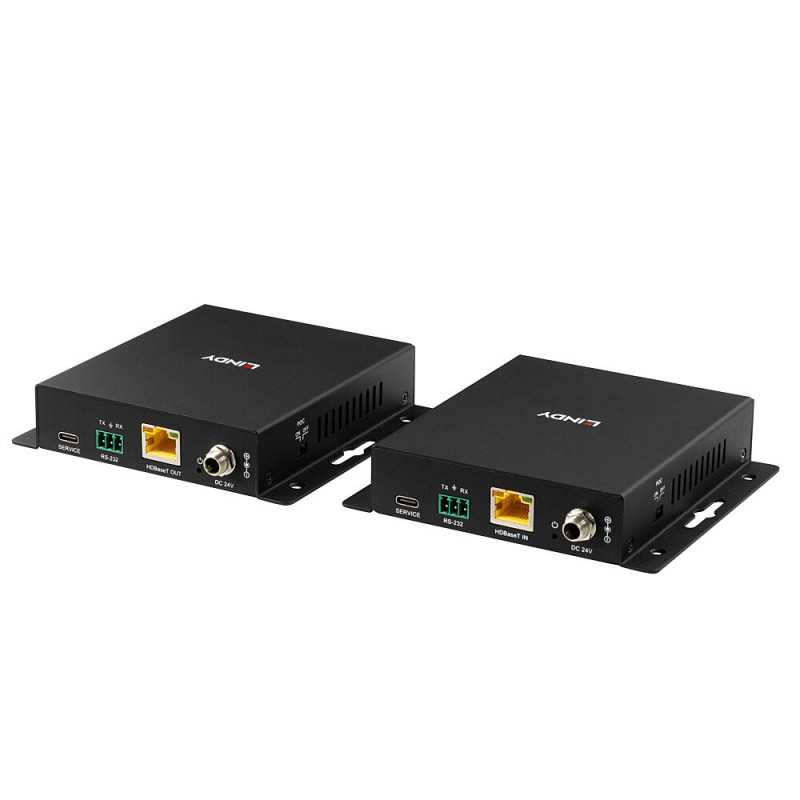

Lindy 100m Cat.6A Type-C 4K60 video a dátový HDBaseT 3.0 extender (39347)

Extending 4K60 video and USB 2.0 data over 100 meters can be a challenge in professional AV installations. The Lindy 100m Cat.6A Type C 4K60 Video and Data HDBaseT 3.0 Extender solves this by transmitting uncompressed 4K UHD video, USB 2.0, Gigabit Ethernet, and RS-232 control over a single Cat.6A/7 cable.

Who is it for

This extender kit is ideal for corporate meeting rooms, classrooms, and digital signage where a USB-C source (laptop, tablet, phone) needs to be connected to a remote HDMI display and USB peripherals, without compromising on video quality or data speed.

Main features

• Transmits 4K UHD 3840x2160@60Hz 4:4:4 up to 100m over Cat.6A/7
• USB-C input with DisplayPort Alt Mode on transmitter
• HDMI 2.0 output on receiver
• USB 2.0 extension for keyboard, mouse, storage, and other peripherals
• Gigabit Ethernet pass-through and RS-232 control
• HDCP 2.2/1.4 compliant, supports 18Gbps bandwidth
• Power over HDBaseT (PoH) – only one power supply needed at transmitter

Specifications

• HDBaseT Standard: HDBaseT 3.0
• Maximum Resolution: 4K UHD 3840x2160@60Hz 4:4:4
• Maximum Extension Distance: 100m (328ft)
• Required Cable: Cat.6A / Cat.7 U/FTP or F/FTP
• Transmitter Input: 1x USB-C (DisplayPort Alt Mode)
• Receiver Output: 1x HDMI 2.0
• USB Data Standard: USB 2.0
• USB Ports (Transmitter): 1x USB-C (Host), 1x USB Type B (Device)
• USB Ports (Receiver): 2x USB Type A (Peripherals)
• Ethernet Pass-through: Gigabit Ethernet (1000Mbps)
• Control Interface: RS-232
• HDCP Support: HDCP 2.2 / 1.4
• Power Over HDBaseT (PoH): Yes
• Video Bandwidth: 18Gbps
• Colour Space Support: RGB, YCbCr 4:4:4, 4:2:2, 4:2:0
• Housing Material: Metal
• Power Supply: 24V DC 1A (included)
• Product Type: HDBaseT Extender Kit
• Audio Support: Embedded HDMI Audio

Tips

For best performance, use shielded Cat.6A or Cat.7 cable with proper grounding. Ensure both units are powered (PoH allows single power supply at transmitter). The USB-C port on the transmitter supports DisplayPort Alt Mode; check your source device compatibility.
