Lindy 500m optický DVI-D Single Link extender

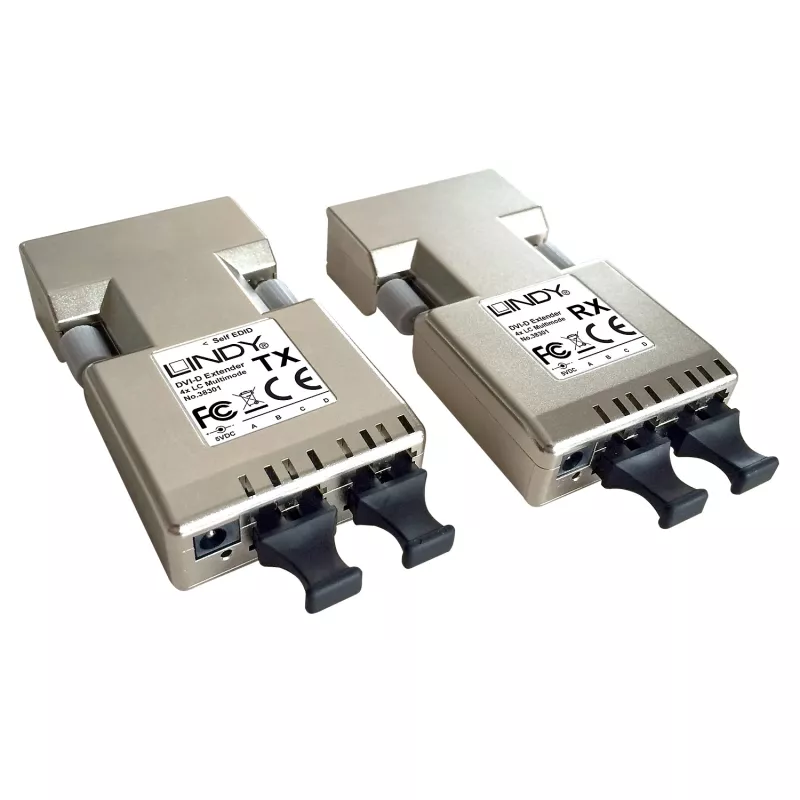

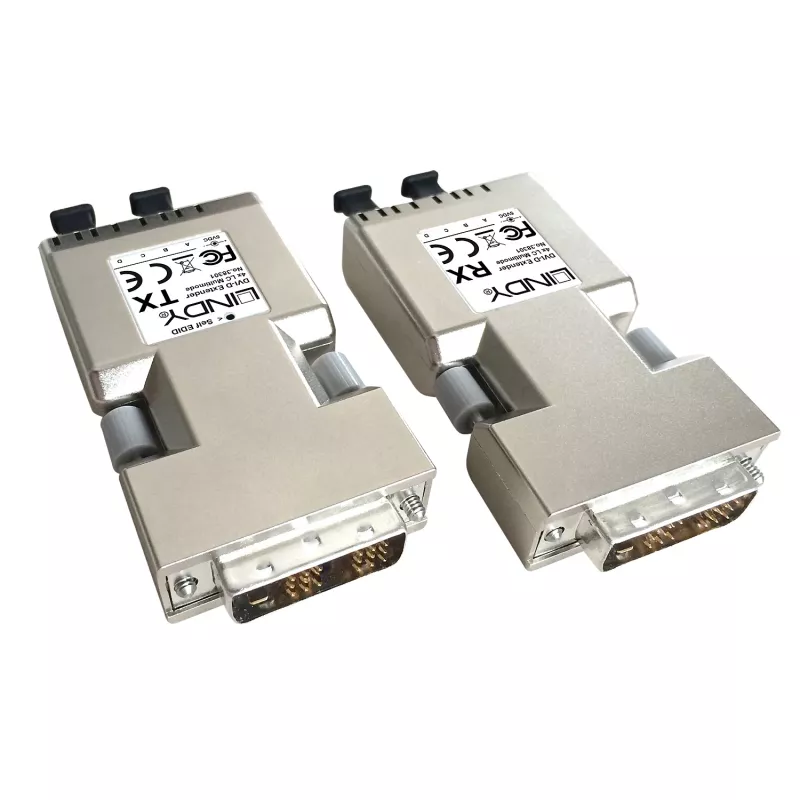

The Lindy 500m Fibre Optic DVI-D Single Link Extender is a compact transmitter and receiver pair designed to send uncompressed DVI-D single link video over standard LC duplex multimode fibre cable up to 500 m. The kit connects directly to a DVI-D source and a DVI-D display, maintaining a maximum resolution of 1920 x 1200 and delivering digital video without signal degradation when used with compatible multimode fibre (50/125 µm). The units are finished in a metallic colour and are intended for professional AV installations where long-distance, high-quality digital transmission is required.

Advantages

The extender transmits DVI-D signals without compression or quality loss, supports distances up to 500 m over standard LC duplex multimode fibre and comprises separate transmitter and receiver modules for straightforward point-to-point connections. It is compact, easy to install and preserves the original digital signal to maintain full single link DVI image quality at resolutions up to 1920 x 1200.

Suitable for

• Long-distance DVI-D video distribution in conference rooms and auditoriums
• Professional AV installations in education, corporate and broadcast environments
• Digital signage and control room displays requiring reliable cable runs up to 500 m

Key specifications

• Type: AV transmitter & receiver
• Maximum resolution: 1920 x 1200
• Maximum transfer distance: 500 m (over LC duplex multimode 50/125 µm fibre)
• Cable types supported: Fibre (LC duplex multimode)
• Product colour: Metallic
• Model / MPN: 38301
• EAN: 4002888383011

How to use

Connect the transmitter module to the DVI-D video source and the receiver module to the DVI-D display using the devices’ DVI-D connectors. Link the transmitter and receiver using two LC duplex multimode fibre cables (50/125 µm) of appropriate length, up to 500 m. Power both modules according to the supplied power adapters or system requirements, then verify the display resolution is set to a supported maximum of 1920 x 1200.

Recommendations

For reliable operation, use standard LC duplex multimode 50/125 µm fibre cables of suitable quality and avoid sharp bends or mechanical stress on the fibre. Ensure both DVI-D source and display support single link resolutions used, and test the full run at the intended resolution before permanent installation.
