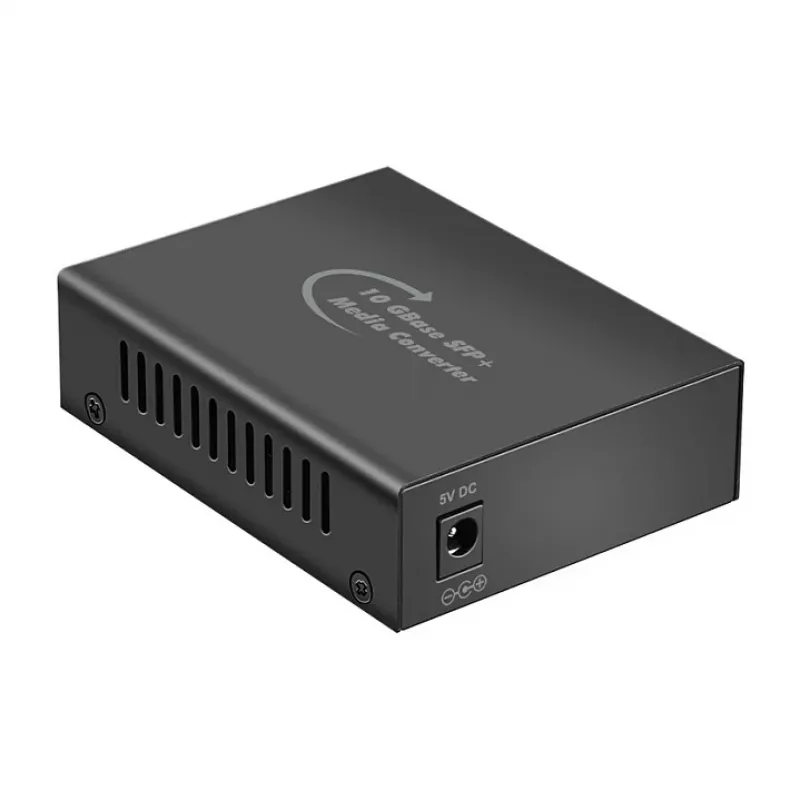

LogiLink 10 Gigabit mediálny konvertor RJ45 na 10G SFP+ (NMC003)

For high-density 10G copper-to-fibre transitions without a switch upgrade, the LogiLink NMC003 media converter bridges a 10GBASE-T RJ45 port and a 10GBASE-R SFP+ slot in a compact metal housing. It accepts any standard 10G SFP+ transceiver, so you can match the fibre type and reach to the existing infrastructure instead of being locked into a fixed optical module.

Highlights

• Converts 10GBASE-T copper to 10GBASE-R fibre via an open SFP+ slot
• Supports Cat.6a/Cat.7 copper links up to 30 m and SFP+ modules for SR, LR, ER, ZR, BiDi, CWDM or DWDM
• Jumbo frames up to 16K bytes and full-duplex operation for lossless large transfers
• Auto MDI/MDIX and plug-and-play design eliminate configuration steps
• External 12 V/1 A power adapter included; maximum consumption only 4.5 W

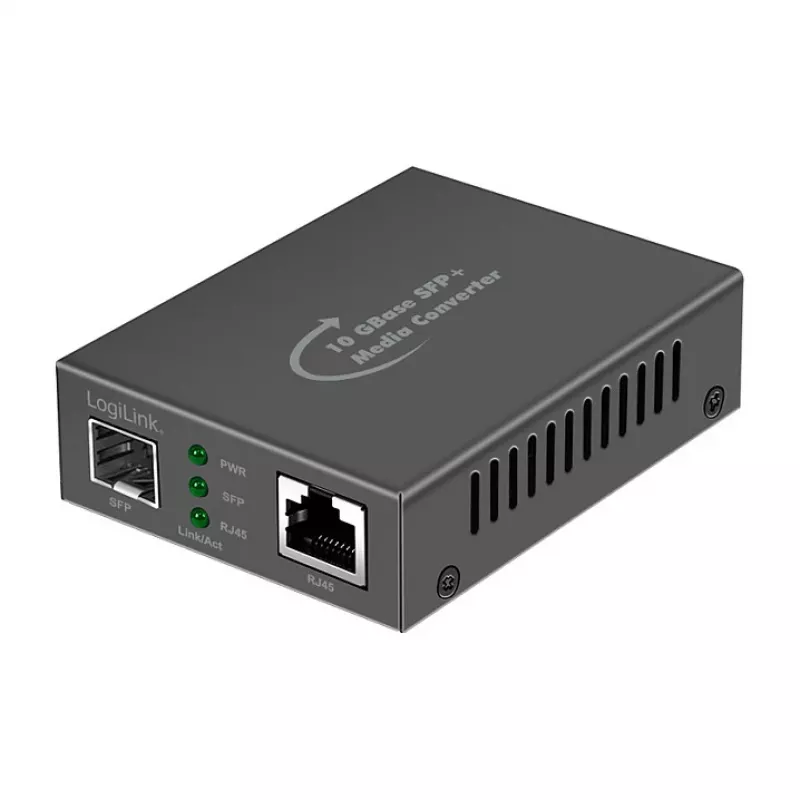

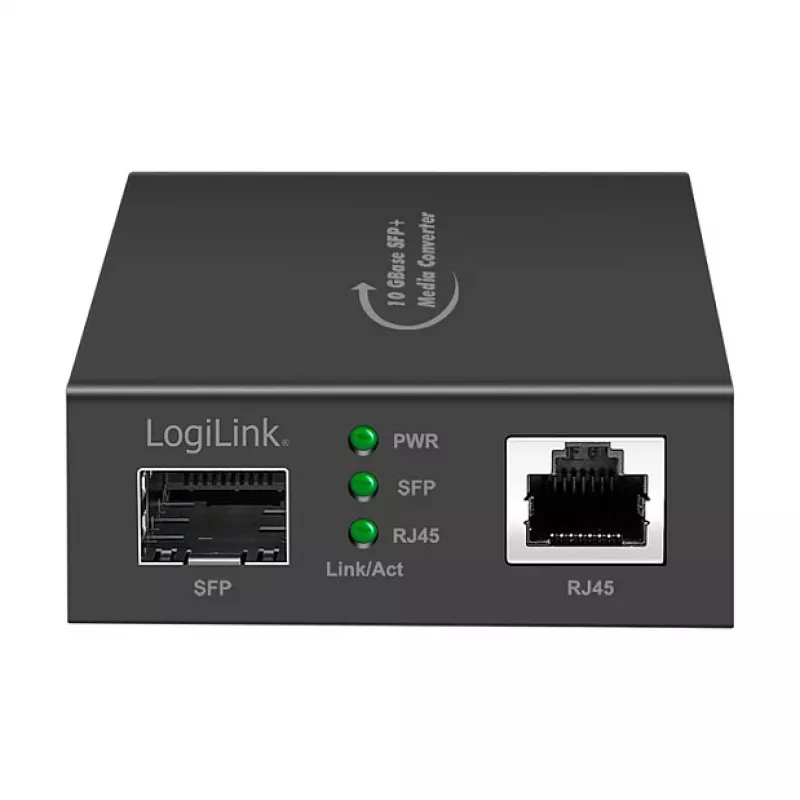

• LED indicators for power, SFP+ link/activity and RJ45 link/activity

In daily use

Place the converter next to a 10G NAS, workstation or aggregation switch, connect a Cat.6a/7 patch cable to the RJ45 port, insert the appropriate 10G SFP+ module, and the link comes up automatically. The metal case dissipates heat reliably in wiring closets, and the low 4.5 W draw keeps operating costs minimal even in 24/7 installations.

Full specifications

• Standards: IEEE 802.3ae (10GBASE-R), IEEE 802.3an (10GBASE-T)
• Ports: 1x 10GBASE-T RJ45, 1x 10GBASE-R SFP+ (module not included)
• Copper distance: up to 30 m with Cat.6a/7
• Fibre distance: depends on SFP+ module (SR, LR, ER, ZR, BiDi, CWDM, DWDM)
• Jumbo frame: up to 16K bytes
• Indicators: PWR, SFP+ Link/ACT, RJ45 Link/ACT
• Power: external DC 12 V/1 A adapter, max 4.5 W
• Housing: metal
• Operating temperature: 0 °C to 50 °C
• Storage temperature: -20 °C to 70 °C
• Operating humidity: 5 % to 90 % RH (non-condensing)
• Certifications: CE, FCC, RoHS

Final note

The NMC003 gives you a flexible, low-power 10G media conversion point that adapts to your fibre plant through interchangeable SFP+ optics, making it a practical choice for enterprise edge links, campus extensions and data centre cross-connects.
