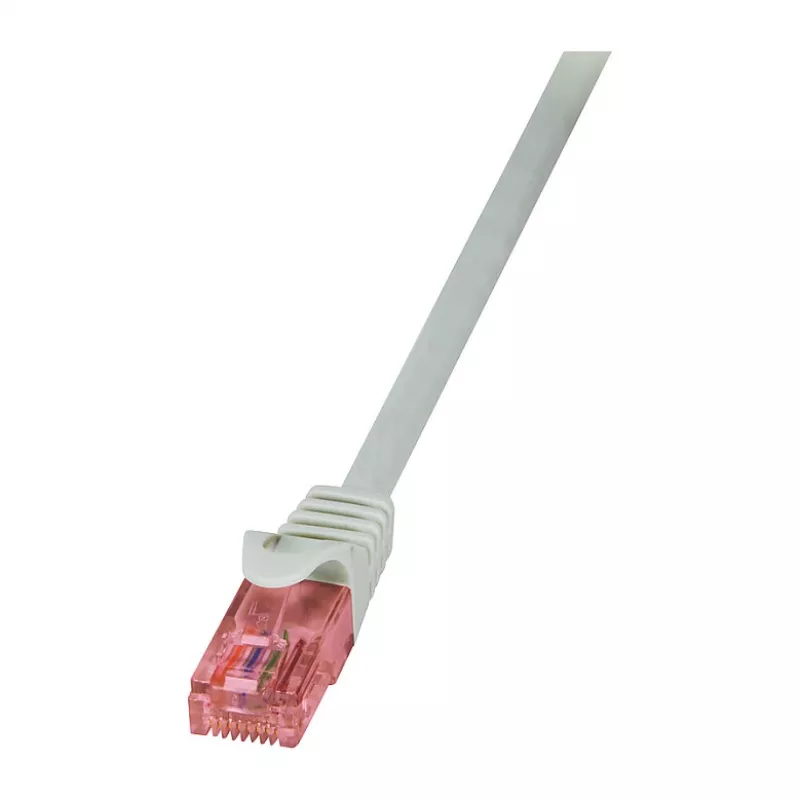

LogiLink Cat.6 U/UTP bare copper patch kábel, 20m, sivý, LSZH, Snagless, Gigabit Ethernet

Long cable runs often suffer from signal degradation, crosstalk, and unreliable connections—especially in offices or homes where networking equipment is spaced far apart. This 20-metre Cat.6 patch cable eliminates those worries, delivering stable Gigabit Ethernet performance over extended distances. Built with bare copper conductors and a snagless, gold-plated connector design, it ensures a clean, dependable link between your router, switch, patch panel, or workstation.

Who is it for

IT professionals, network installers, and home users who need a robust, long-reach Ethernet connection without sacrificing speed or reliability. Ideal for structured cabling in offices, server rooms, or any environment where a 20m run is required.

Main features

• Cat.6 performance: supports frequencies up to 250 MHz and data rates up to 1 Gbps, perfect for Gigabit Ethernet.
• U/UTP unshielded twisted pair construction with 4 pairs of AWG 24/7 stranded bare copper for excellent conductivity and flexibility.
• LSZH (Low Smoke Zero Halogen) jacket: emits low smoke and no toxic halogens in case of fire, making it safe for enclosed spaces.
• Snagless molded boots protect the locking tab from damage during installation and repeated plugging/unplugging.
• Gold-plated contacts (50µm) resist corrosion and ensure reliable, low-loss connections over time.
• Wired to TIA/EIA 568B standard for compatibility with all Ethernet devices.

Specifications

• Cable category: Cat.6
• Shielding: U/UTP (unshielded)
• Length: 20 m
• Colour: Grey
• Conductor material: Bare copper (BC)
• Conductor gauge: AWG 24/7 (stranded)
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Connectors: RJ45 male to RJ45 male
• Connector plating: Gold (50µm)
• Wiring standard: TIA/EIA 568B
• Frequency: up to 250 MHz
• Data transfer rate: up to 1000 Mbps (1 Gbps)
• Outer diameter: approx. 6.0 mm
• Compliance: RoHS, REACH, ISO/IEC 11801, EN 50173

Tips

For best performance, avoid sharp bends and keep the cable away from sources of electromagnetic interference. When routing through walls or conduits, use a cable puller to prevent damage to the connectors. This cable is ideal for permanent installations where a longer, reliable link is needed.
