LOGILINK Cat.6A nástenná zásuvka 2xRJ45 STP, vertikálna, signálna biela

For high-density network installations where performance and durability are non-negotiable, the LOGILINK Cat.6A Wall Outlet delivers 10 Gigabit Ethernet connectivity in a compact, flush-mount design. Its fully shielded housing and gold-plated contacts ensure reliable signal integrity even in electrically noisy environments. The vertical port orientation and integrated dust shutters make it ideal for offices, conference rooms, and industrial settings where uptime is critical.

Highlights

• Dual RJ45 ports support 10GBASE-T with 500 MHz bandwidth
• STP shielding with central grounding connection for EMI protection
• Tool-free LSA (Krone) IDC terminals for fast, secure termination
• Supports PoE, PoE+, and 4PPoE up to IEEE 802.3bt
• Pure white (RAL 9010) ABS housing blends into any décor
• Integrated dust protection shutters keep contacts clean

In daily use

Installation is straightforward: the outlet fits standard flush-mount boxes and accepts solid wire AWG 22-24. Color-coded TIA-568A/B wiring guides eliminate guesswork, and the central grounding point simplifies shielded cabling. Once installed, the vertical ports allow easy cable routing from above or below, while the shutters prevent dust ingress when not in use. The robust ABS plastic withstands frequent plugging and unplugging, making it suitable for both permanent links and movable workstations.

Full specifications

• Category: 6A (ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2)
• Connectors: 2 x RJ45 female, shielded
• Mounting: Flush-mount (wall box)
• Termination: LSA (Krone) IDC, tool-free

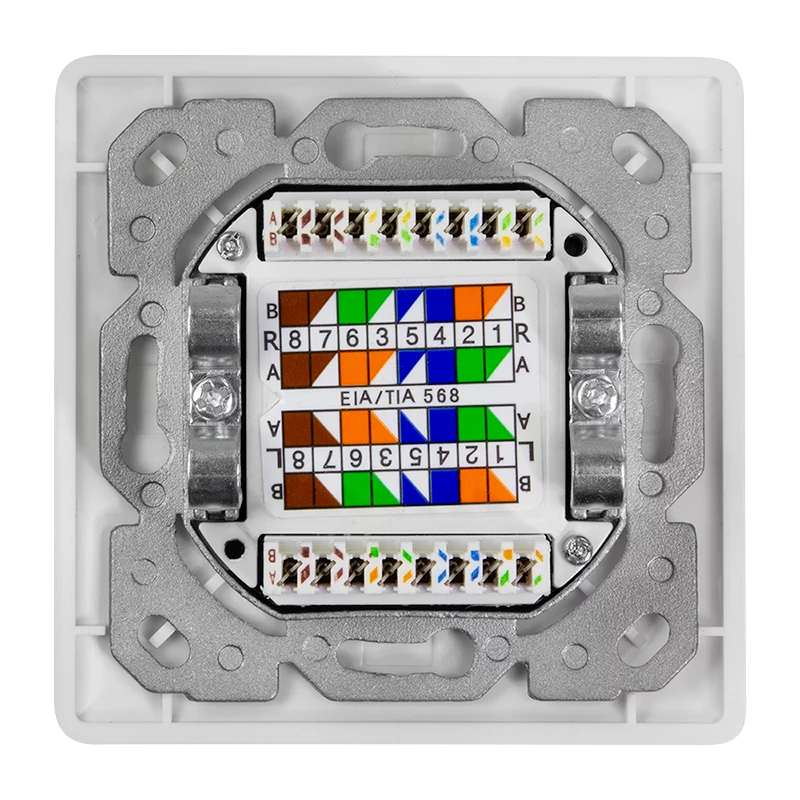

• Wiring scheme: TIA-568A/B color coded
• Housing: ABS plastic, pure white (RAL 9010)
• Port orientation: Vertical
• PoE support: PoE, PoE+, 4PPoE (IEEE 802.3af/at/bt)
• Contact plating: Gold-plated (50µ")
• Wire compatibility: Solid wire AWG 22-24
• Operating temperature: -10°C to +50°C
• Dust protection: Integrated shutters
• Grounding: Central grounding connection

Final note

The LOGILINK NP0127 is a reliable, future-proof choice for any structured cabling project requiring Cat.6A performance in a compact, aesthetically pleasing form factor.
