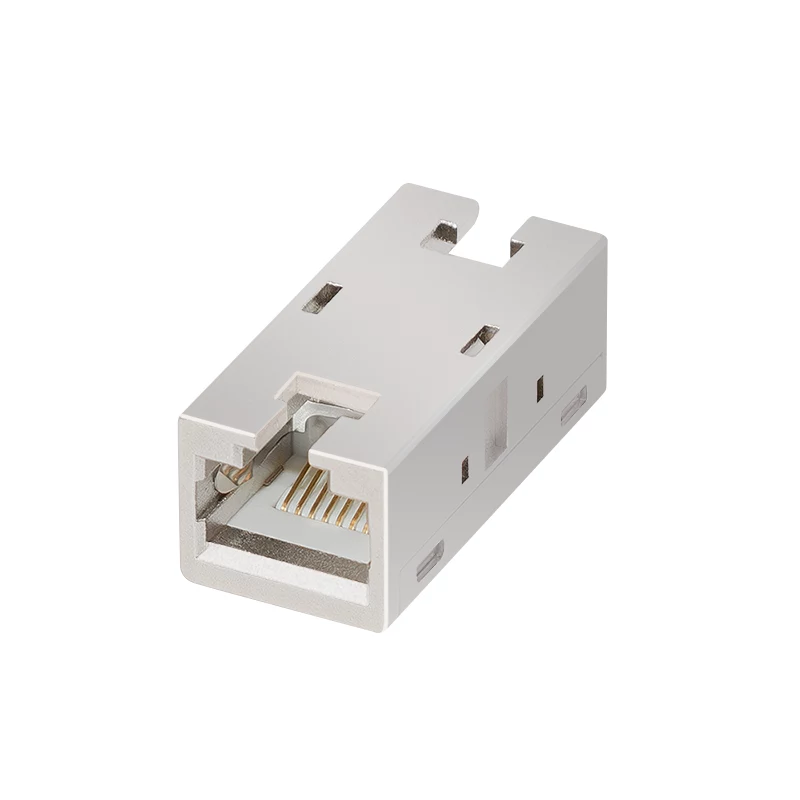

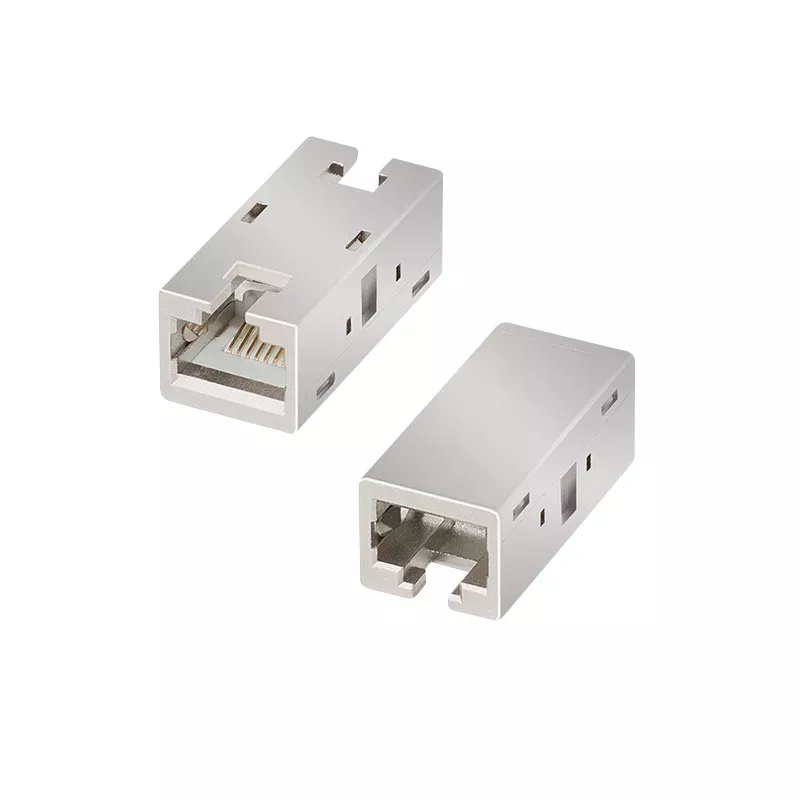

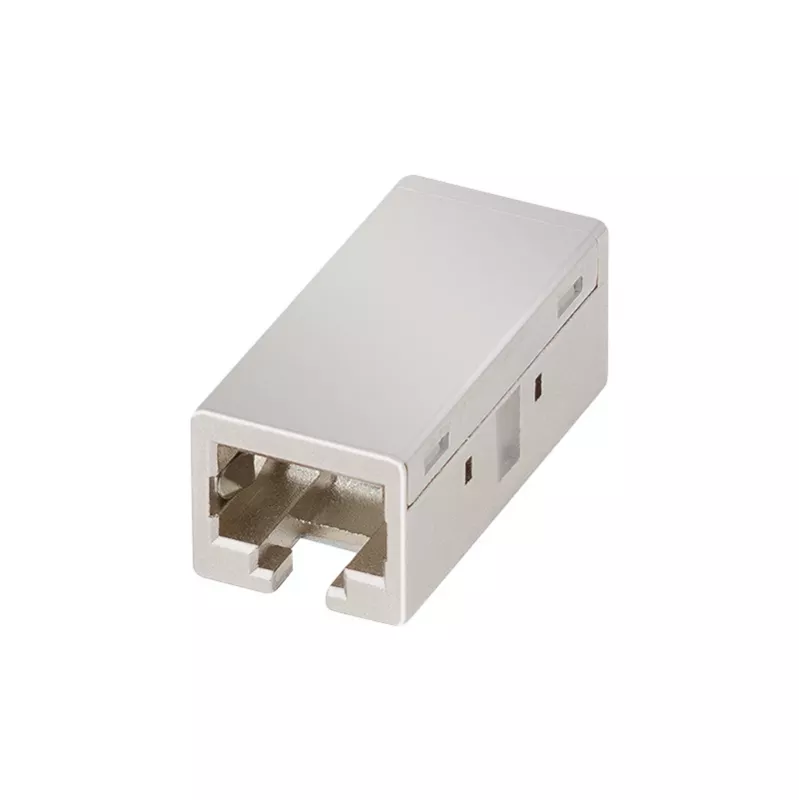

LogiLink Cat.6A tienený RJ45 inline spojka, kovové puzdro, priemyselná kvalita

In a busy factory, a maintenance technician needs to extend a network run to a newly installed IP camera. The LogiLink NP0067 Cat.6A shielded RJ45 inline coupler makes this quick and reliable. Its zinc-alloy metal housing and gold-plated contacts ensure 10 Gigabit Ethernet performance up to 500 MHz, even in demanding industrial environments.

Key specifications

• Connector type: RJ45 female to RJ45 female
• Category: Cat.6A (Category 6A)
• Shielding: Shielded (FTP/STP compatible)
• Data transfer rate: Up to 10 Gbps (10GBASE-T)
• Bandwidth: Up to 500 MHz
• Housing material: Zinc alloy metal
• Contact plating: Gold-plated (50 µm)
• PoE support: PoE, PoE+, UPoE, 4PPoE
• Standards: TIA/EIA-568-C.2, ISO/IEC 11801
• Operating temperature: -20°C to 70°C
• Quantity: 1 piece

Why choose it

This coupler is built for industrial use, with a rugged metal housing that withstands vibration, dust, and temperature extremes. It maintains full Cat.6A performance, ensuring your high-speed network remains stable when extending cable runs. Gold-plated contacts resist corrosion and provide low contact resistance for long-term reliability.

Ideal use cases

• Extending network connections in factories, warehouses, and outdoor enclosures
• Data centers and server rooms where space is limited and cable management is critical
• Office networks requiring a quick, reliable inline connection without re-crimping
• PoE applications such as IP cameras, wireless access points, and VoIP phones

Good to know

The coupler is fully shielded and compatible with both FTP and STP cabling systems. It supports high-power PoE standards, making it suitable for devices that require more power over Ethernet. The metal housing provides excellent EMI/RFI protection and durability in harsh conditions.
