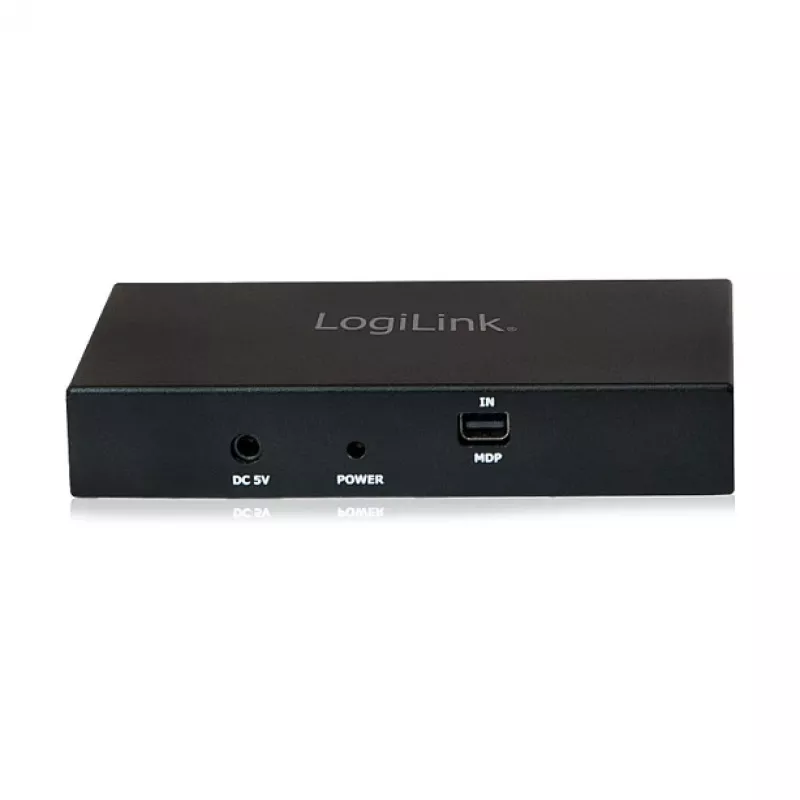

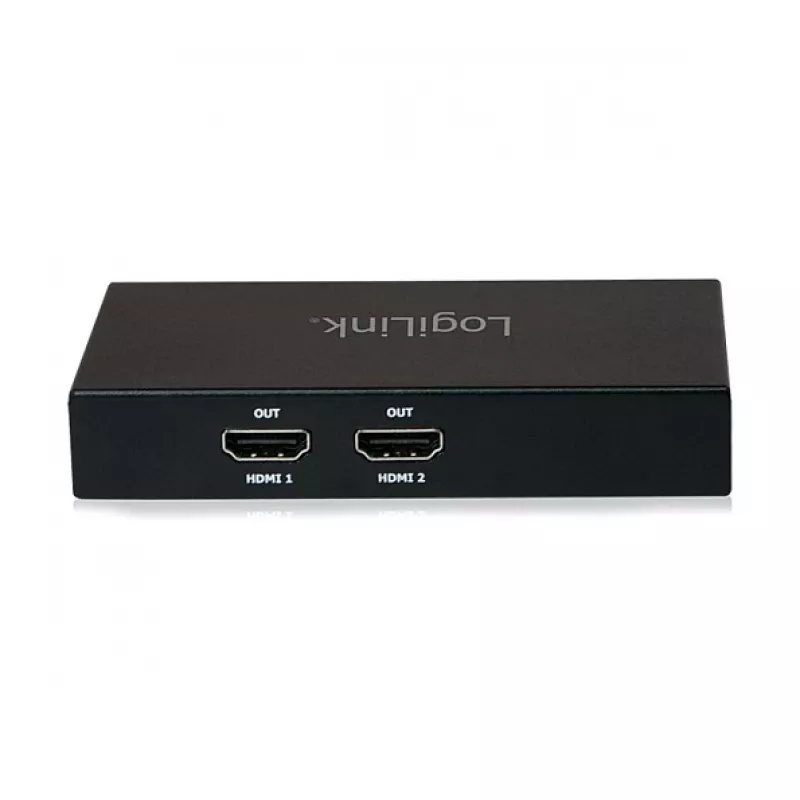

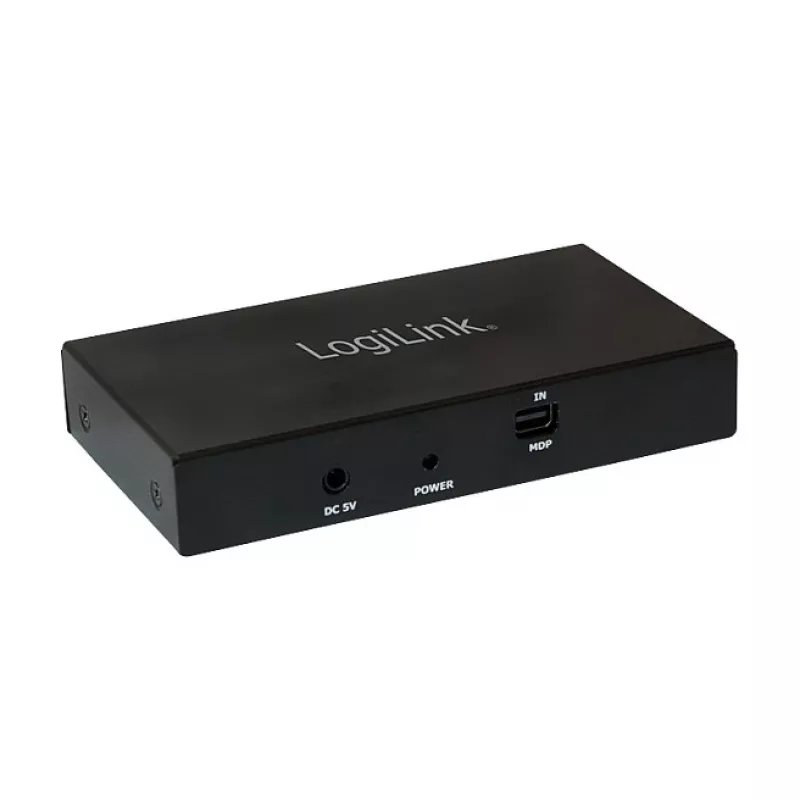

LogiLink DisplayPort rozbočovač 1x2 Mini DP na 2x HDMI 4K 30Hz HDCP

Drive two HDMI displays from a single Mini DisplayPort source with the LogiLink CV0094 splitter. Supporting 4K UHD at 30Hz, this compact aluminum hub delivers crisp visuals and 7.1-channel audio to each screen simultaneously.

Overview

Built around DisplayPort 1.2 Multi-Stream Transport (MST), the CV0094 duplicates or extends your desktop across two HDMI monitors or TVs. It accepts a Mini DisplayPort input and outputs to two HDMI 1.4 ports, making it ideal for workstations, digital signage, and home theater setups. HDCP 1.3 compliance ensures protected content plays smoothly, while USB power (5V/1A) provides reliable operation without an external power brick.

What stands out

• 4K UHD (3840 x 2160) at 30Hz on both outputs
• MST and SST modes for mirroring or extending displays
• 7.1-channel LPCM, DTS, and Dolby Digital audio pass-through
• Aluminum alloy housing for durability and heat dissipation
• Driverless plug-and-play on Windows, macOS, and Linux

Technical details

• Input: 1x Mini DisplayPort 1.2 (female)
• Outputs: 2x HDMI 1.4 (female)
• Maximum resolution: 3840 x 2160 @ 30Hz
• HDCP version: 1.3
• Input bandwidth: up to 21.6 Gbps
• Output bandwidth: up to 10.2 Gbps per port
• Power: USB powered (5V/1A via Micro USB)
• Power consumption: <2W
• Operating temperature: 0°C to 70°C
• Storage temperature: -10°C to 80°C
• Relative humidity: 5% to 90% RH (non-condensing)
• Compliance: CE, FCC, RoHS

Our verdict

The LogiLink CV0094 is a reliable and compact solution for anyone needing dual HDMI outputs from a Mini DisplayPort source. Its 4K support and robust audio capabilities make it a standout choice for multi-monitor productivity or immersive entertainment.
