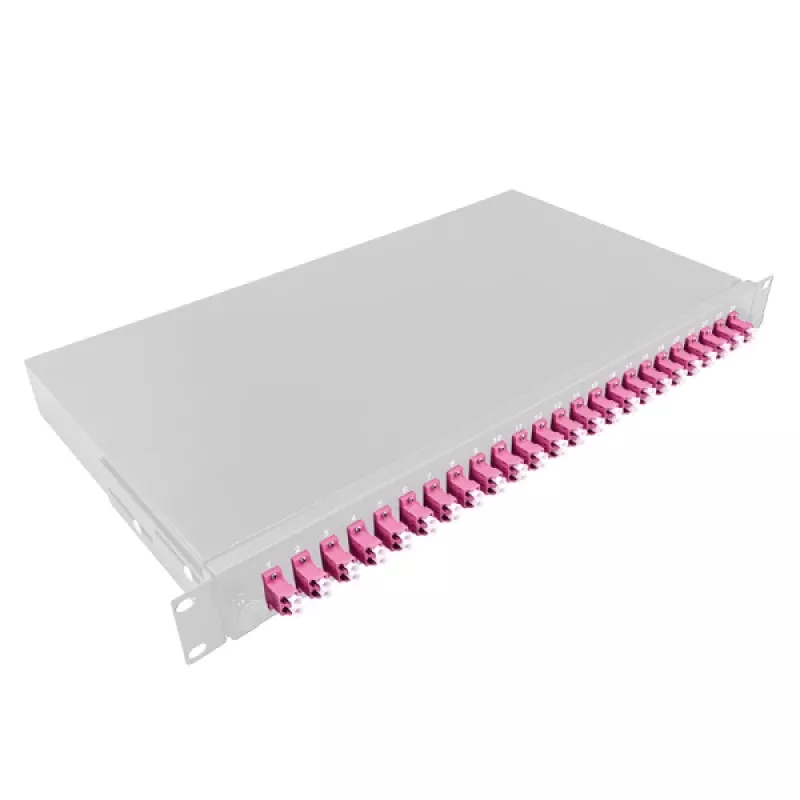

LogiLink F24LC4G 24-portový LC Duplex optický patch panel, 1U 19 palcová rack montáž, sivá oceľ

In a busy data center, every rack unit counts. The LogiLink F24LC4G packs 24 LC duplex ports into a slim 1U panel, giving you 48 fiber connections in a compact, rack-mountable steel chassis. Its grey RAL 7035 finish blends into standard 19-inch racks, while the sliding front panel and integrated cable management keep your fiber runs tidy and accessible.

Key specifications

• 24 LC duplex ports (48 fibers) with ceramic sleeve adapters
• 1U height, fits standard 19-inch racks
• Durable steel construction, grey RAL 7035
• Sliding/removable front panel for easy access
• Integrated splice tray and cable management
• Rear cable entry, IP20 protection
• Operating temperature: -20°C to 70°C
• Compliant with RoHS and REACH

Why choose it

This patch panel is built for reliability in high-density fiber environments. The steel housing protects connections from physical stress, and the sliding front panel simplifies maintenance without disturbing adjacent cables. The integrated splice tray stores excess fiber safely, reducing clutter and signal loss risks.

Ideal use cases

• Data center fiber distribution
• Server room cross-connects
• Network cabinet termination
• Enterprise backbone patching

Good to know

Included accessories: splice cassettes, cable ties, and mounting screws. The panel supports LC duplex connectors with ceramic sleeves for low insertion loss. It operates reliably from -20°C to 70°C, making it suitable for most indoor rack environments.
