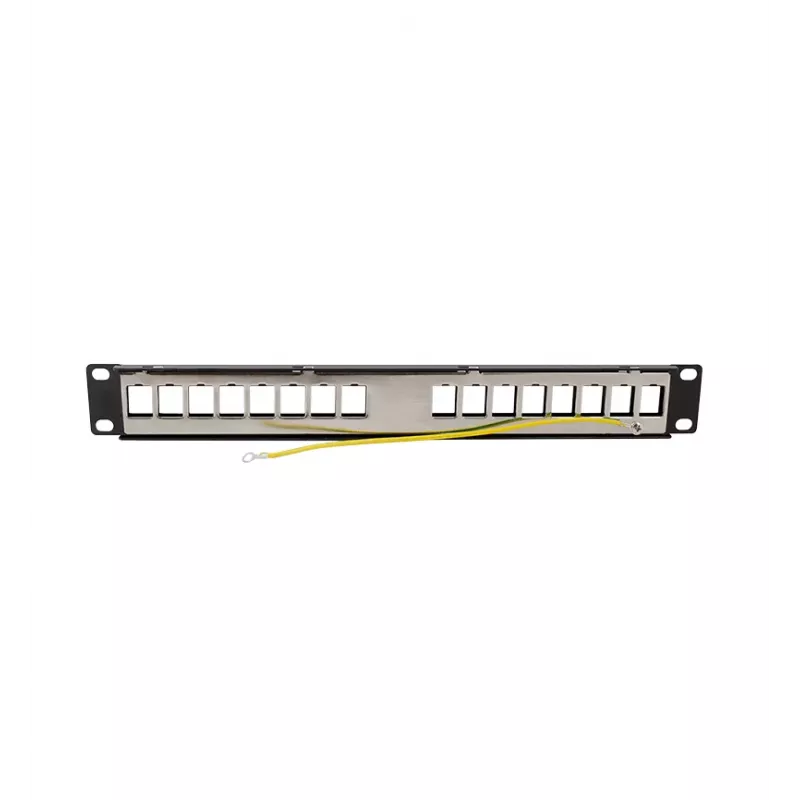

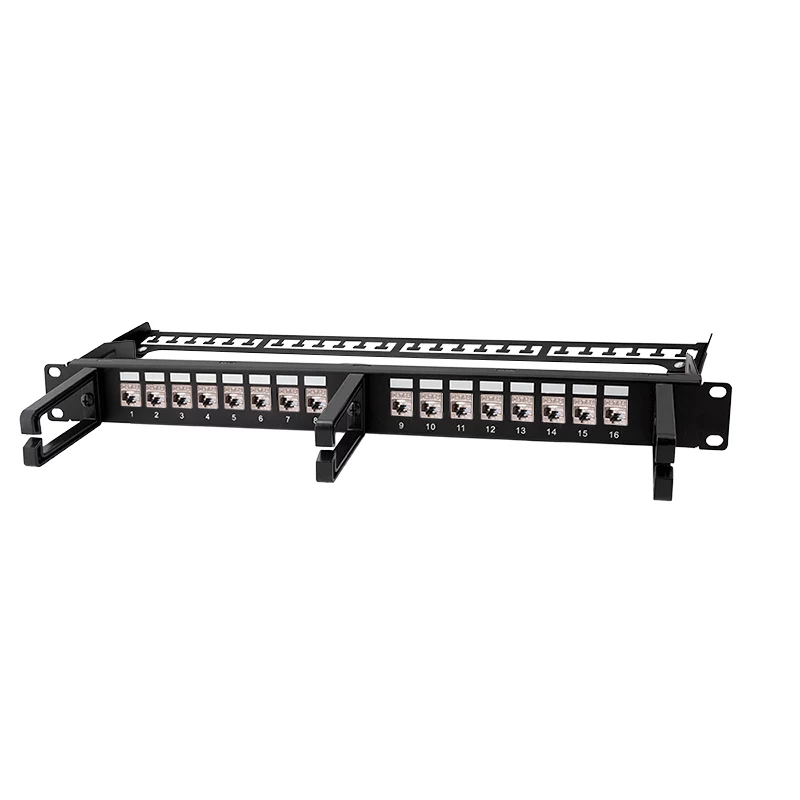

LOGILINK modulárny 16-port Cat.6A Keystone patch panel, 19/1U, s 3 káblovými krúžkami, čierny

In a busy server room, network administrators often struggle with cable clutter and the need for flexible, high-performance connectivity. The LOGILINK NK5005 modular patch panel solves this by providing a 16-port Cat.6A keystone panel in a compact 1U 19-inch rack-mount form. Its front-loading design allows you to snap in standard RJ45 keystone jacks of your choice (Cat.5e, Cat.6, or Cat.6A), giving you the freedom to mix and match according to your network requirements. Three integrated cable rings keep your cabling organized, reducing strain and ensuring a tidy rack.

Key specifications

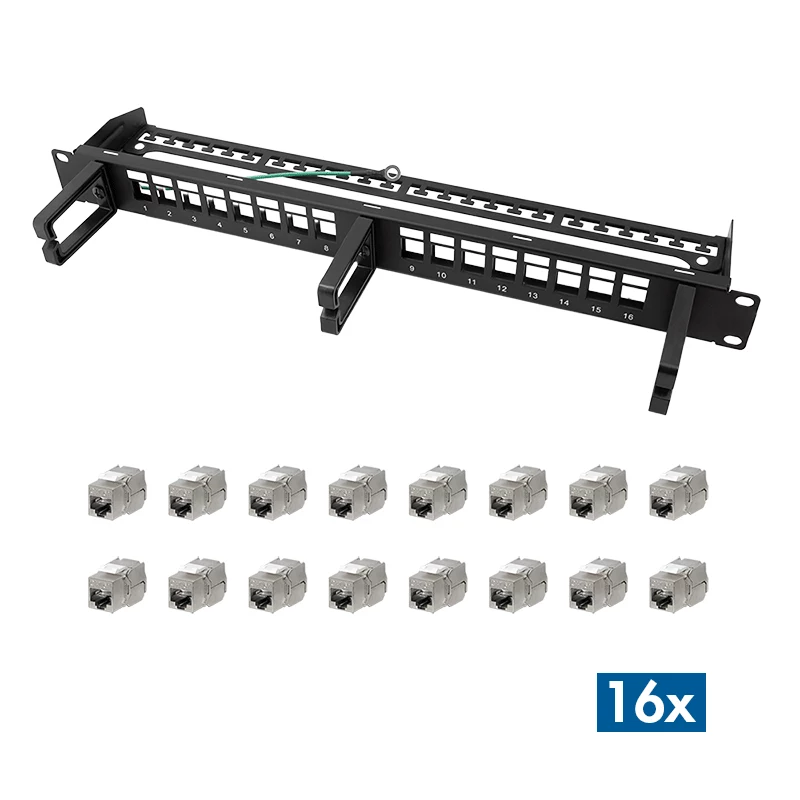

• 16 modular keystone ports, compatible with standard RJ45 keystone jacks (Cat.5e, Cat.6, Cat.6A)
• 19-inch rack-mount, 1U height
• Unshielded design, ideal for shielded or unshielded keystone modules
• Durable SPCC cold rolled steel construction with black RAL 9005 finish

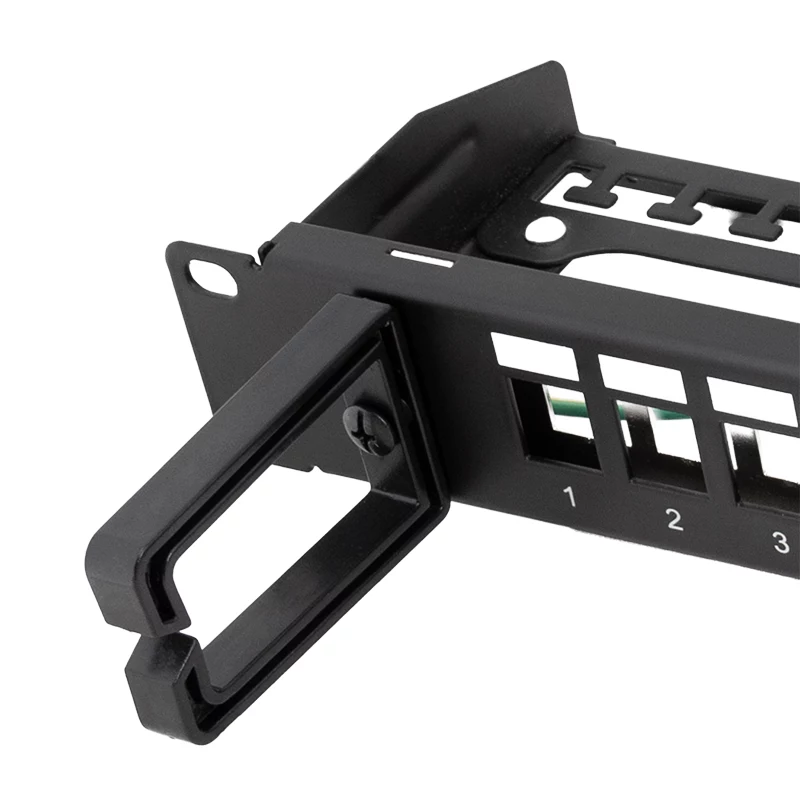

• Integrated cable management: 3 cable rings for neat routing
• Labeling fields for easy port identification
• Front-loading keystone installation for quick setup
• Compliant with ISO/IEC 11801, EN 50173, TIA/EIA 568-C.2
• Operating temperature: -20°C to +70°C; humidity: 10% - 90% RH non-condensing

Why choose it

This patch panel offers exceptional versatility and build quality. The modular design allows you to use your preferred keystone jacks, future-proofing your network for upgrades to higher categories. The robust steel frame withstands the rigors of data centers and enterprise installations, while the black finish blends seamlessly with other rack equipment. The included cable rings simplify cable management, saving time during installation and maintenance.

Ideal use cases

• Data centers requiring high-density, customizable patching
• Enterprise network closets where mix of cable categories may be needed
• Structured cabling systems in office buildings
• Server rooms needing efficient cable organization

Good to know

The panel is unshielded, but it accepts both shielded and unshielded keystone jacks, so you can adapt to your grounding requirements. It is designed for front-loading, meaning you can install or replace keystone jacks without removing the panel from the rack. The three cable rings are positioned to guide cables neatly to the sides, reducing clutter and improving airflow.
