LogiLink Professional lištový napájací zdroj 240 W 48 V

Deliver 240 W of stable 48 V DC power with up to 90% efficiency from a compact DIN rail unit that accepts 90–264 V AC or 127–370 V DC input, making it a versatile choice for industrial automation and control systems worldwide.

Overview

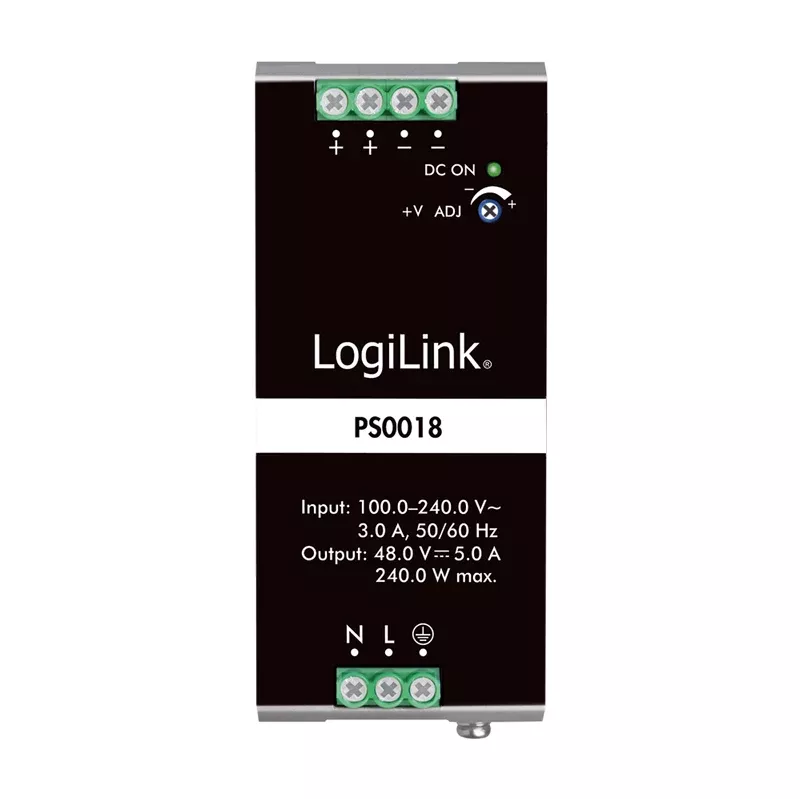

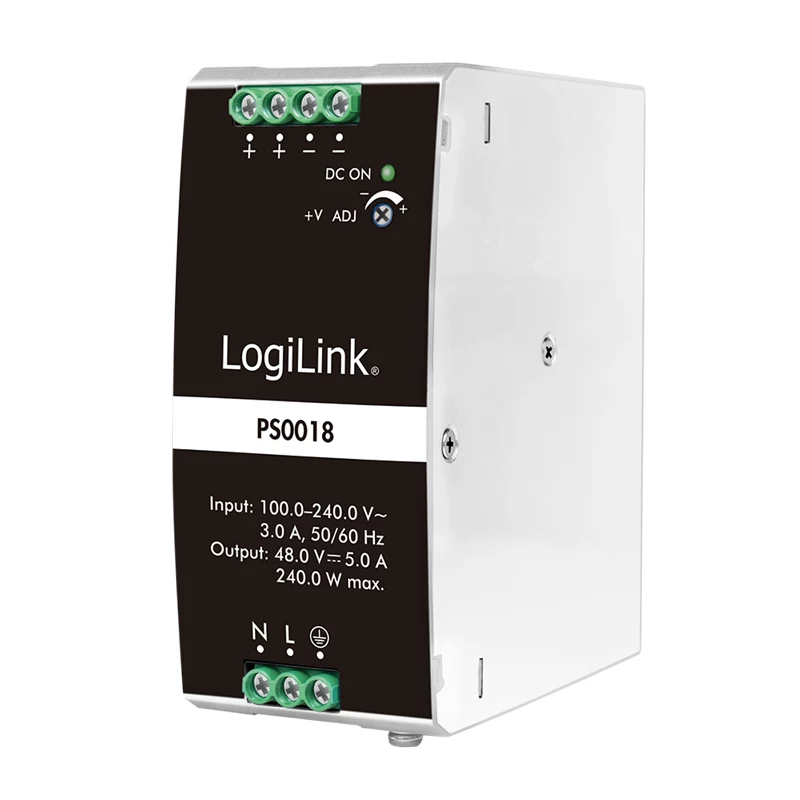

The LogiLink Professional DIN Rail Power Supply PS0018 converts AC mains voltage to a regulated 48 V DC output with a rated current of 5 A. The output voltage is adjustable from 48 to 55 V DC via a front-panel potentiometer, allowing fine-tuning for specific load requirements or voltage drop compensation. Free air convection cooling ensures silent operation without the need for fans, reducing maintenance and potential points of failure.

What stands out

• High power density: 240 W in a compact DIN rail form factor.
• Wide input voltage range for worldwide use and DC input compatibility.
• Adjustable output voltage for flexible system design.
• Comprehensive protection: overload, overvoltage, short circuit, and overtemperature.
• Reliable operation in harsh environments: -20°C to +70°C operating temperature.
• Certified to international standards: CE, RoHS, UL 508, and EMC directives.

Technical details

• Input voltage: 90–264 V AC (127–370 V DC)
• Output voltage: 48 V DC (adjustable 48–55 V DC)
• Rated output current: 5 A
• Efficiency: 90%
• Ripple & Noise: 150 mVp-p
• Isolation voltage: I/P-O/P: 3 kV AC
• MTBF: >100,000 hours
• Operating temperature: -20°C to +70°C
• Cooling: Free air convection

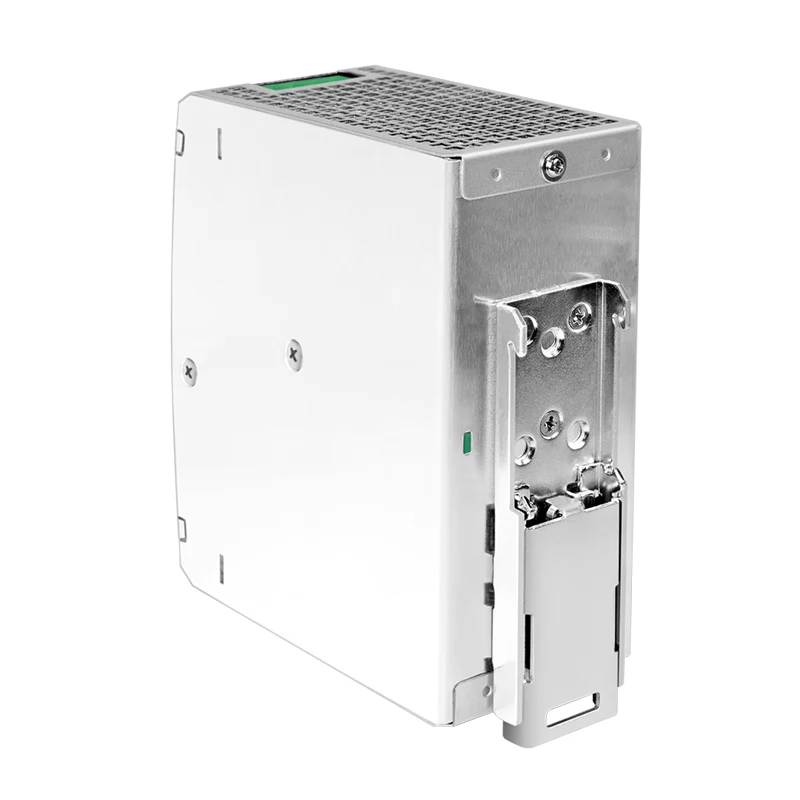

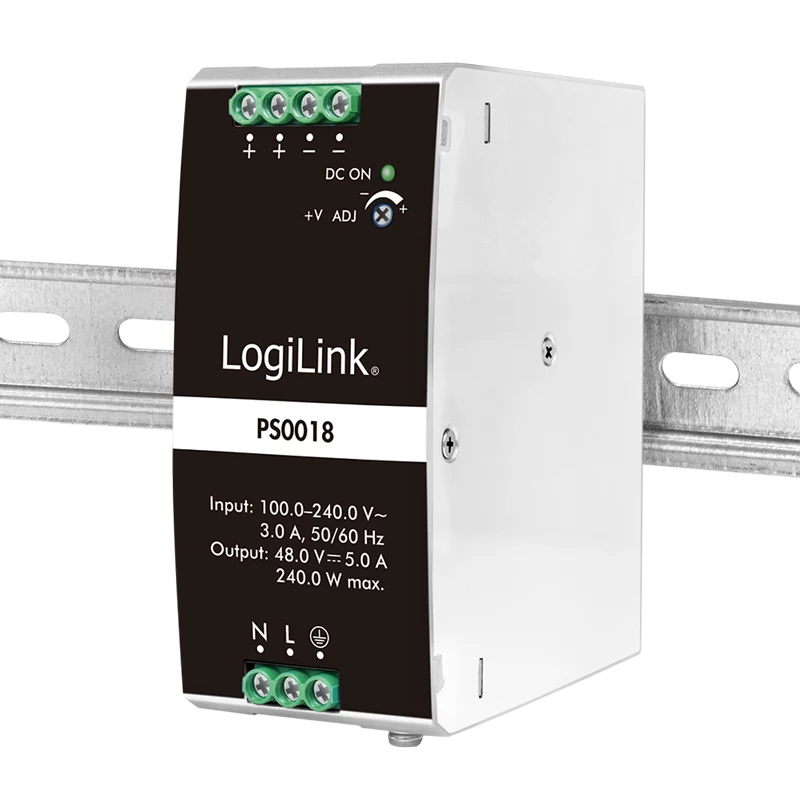

• Mounting: DIN rail TS-35/7.5 or TS-35/15
• Housing: Metal case

Our verdict

With its robust design, wide input range, and adjustable output, the PS0018 is a reliable power solution for demanding industrial environments.
