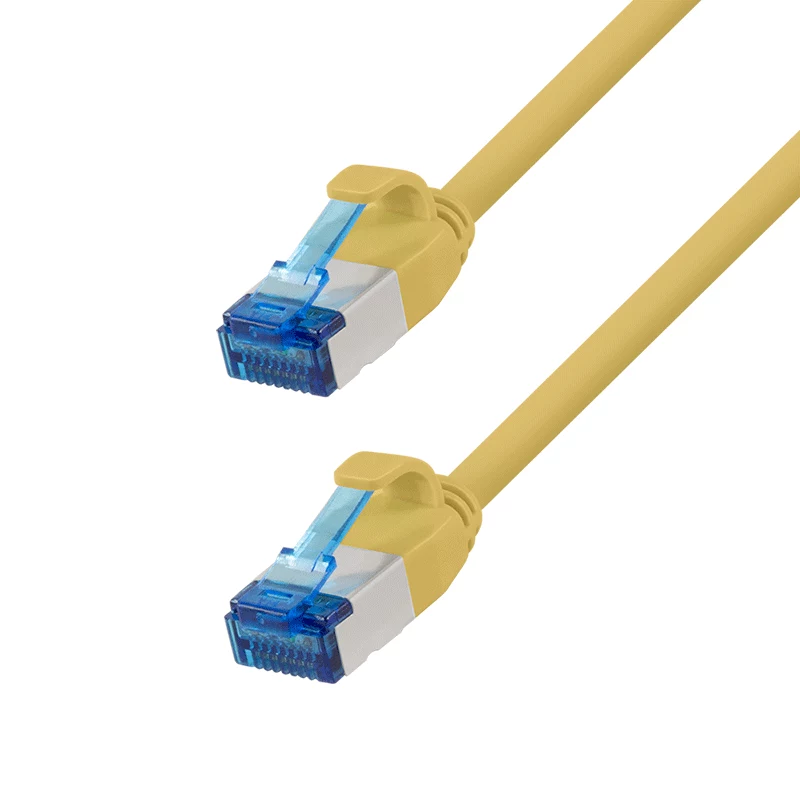

LogiLink SlimLine Cat.6A S/FTP LSZH patch kábel, žltý, 3 m

When rack space is at a premium and airflow matters, this SlimLine patch cable from LogiLink delivers full Cat.6A performance in a remarkably narrow profile. The 3.8 mm outer diameter is roughly half that of a standard Cat.6A cable, allowing twice as many runs through cable managers, conduits, and densely packed patch panels. Each of the four twisted pairs is individually wrapped in metal foil, and an overall braided shield protects against alien crosstalk — essential for 10GBASE-T links in noisy data centres. The yellow LSZH jacket is halogen-free, so it emits very little smoke and no corrosive gases in the event of fire, making it suitable for public buildings and enclosed spaces.

Highlights

• Cat.6A / Class EA performance up to 500 MHz
• S/FTP shielding: PiMF (pairs in metal foil) plus overall braid

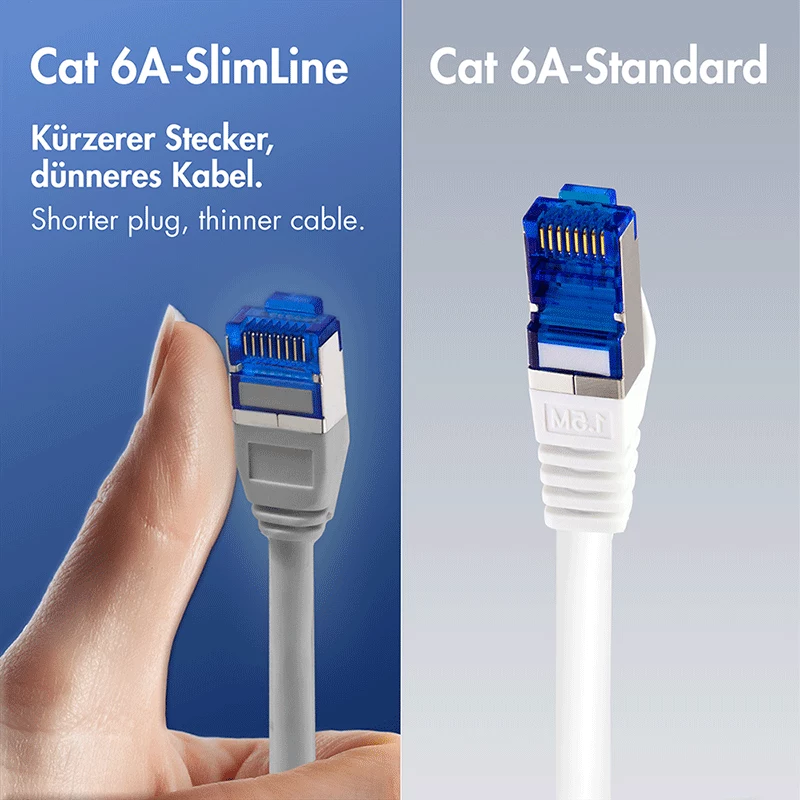

• SlimLine design: only 3.8 mm outer diameter for high-density installations
• Supports 10 Gigabit Ethernet (10GBASE-T)
• LSZH (Low Smoke Zero Halogen) jacket in yellow
• Gold-plated RJ45 connectors (50 µm) with snagless boot
• Stranded copper conductors, AWG 28/7, for flexibility
• Compliant with RoHS and REACH

In daily use

The slim profile is immediately noticeable when routing cables behind desks, through cable trays, or into high-port-count switches. The snagless boot protects the locking tab during frequent moves, and the stranded conductors tolerate repeated bending without breaking. Because the jacket is LSZH, it is a responsible choice for offices, schools, and hospitals where fire safety regulations demand low smoke and zero halogen emissions.

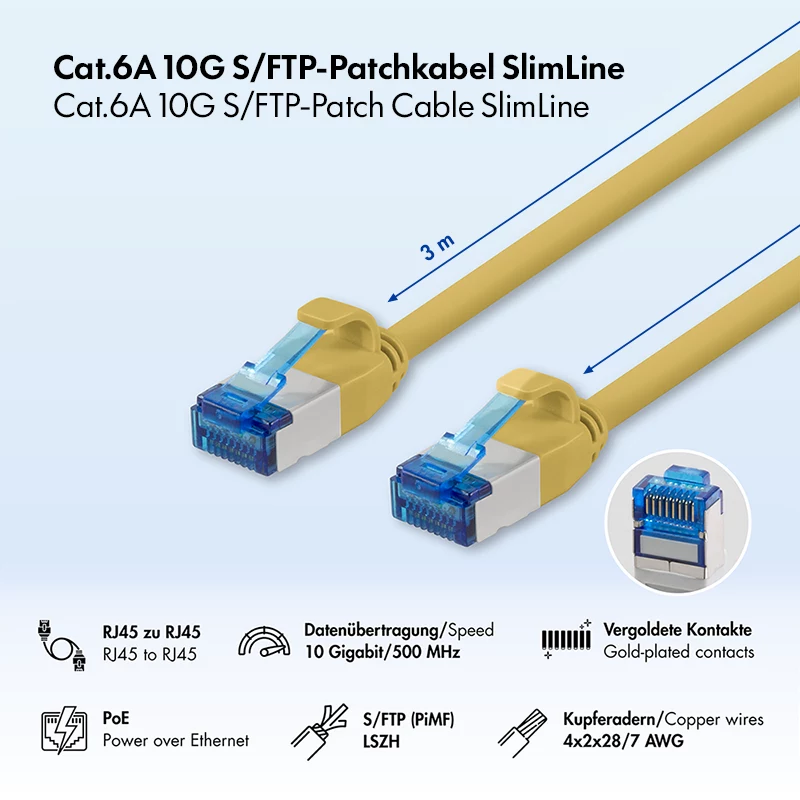

Full specifications

• Cable Type: Patch Cable
• Category: Cat.6A (Class EA)
• Shielding: S/FTP (PiMF - Pairs in Metal Foil, overall braid)
• Connector Type (End 1): RJ45 Male
• Connector Type (End 2): RJ45 Male
• Connector Plating: Gold-plated (50µ)
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Colour: Yellow
• Length: 3.0 meters
• Conductor Material: Copper
• Conductor Gauge: AWG 28/7 (Stranded)
• Bandwidth: Up to 500 MHz
• Data Transfer Rate: Up to 10 Gigabit Ethernet (10GBASE-T)
• Cable Construction: Stranded
• Outer Diameter: Approx. 3.8 mm (SlimLine)
• Wiring Standard: TIA/EIA 568B
• Features: Snagless boot, SlimLine design
• Halogen Free: Yes
• Flame Retardant: Yes
• Compliance: RoHS, REACH

Final note

For installations where every millimetre counts and signal integrity cannot be compromised, the LogiLink SlimLine Cat.6A patch cable offers a rare combination of slimness, shielding, and safety.
