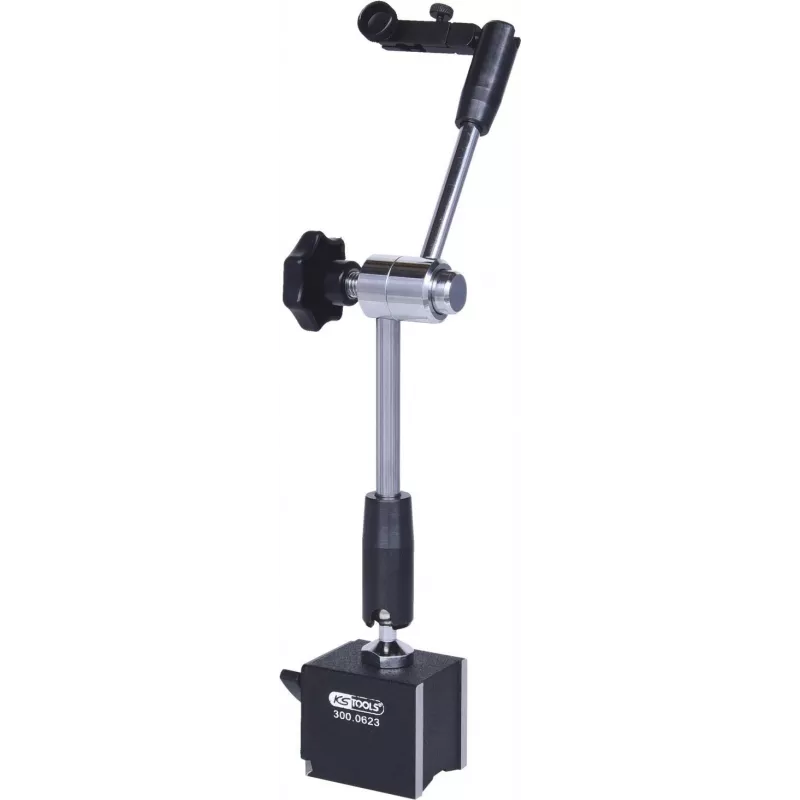

Magnetický merací stojan ks tools 300.0623 s 3 kĺbmi pre meracie hodinky a kalibre

Magnetic measuring stand ks tools 300.0623 with 3 joints for dial indicators and gauges is a stable support designed to hold dial indicators and small gauges in precise positions. The device features a magnetic base that secures the stand to ferrous surfaces and three adjustable joints that allow flexible orientation and fine alignment of the indicator tip. It is suitable for positioning measuring instruments during marking, alignment and inspection tasks in workshops and on production floors.

Advantages

The magnetic base provides a reliable hold on steel surfaces, reducing movement and vibration during measurement. Three adjustable joints enable versatile positioning and allow the user to set the indicator at the required angle and height. The construction is compact and durable for use in tight spaces and frequent workshop applications. The stand supports repeatable, accurate placement of dial indicators and small gauges, improving measurement consistency.

Suitable for

• Setting and holding dial indicators for runout and concentricity checks
• Alignment of machine parts, shafts and fixtures
• Inspection and measurement of workpieces on lathes, milling machines and assembly benches
• Marking reference points and transferring dimensions in metalworking

Key specifications

• Magnetic base for attachment to ferrous surfaces
• Three adjustable joints for multi-axis positioning
• Compact footprint for use in confined work areas
• Stable support for dial indicators and small gauges
• Durable construction suited to workshop use

How to use

Place the magnetic base on a clean, flat ferrous surface and engage the magnet to secure the stand. Adjust the three joints to position the indicator so its tip contacts the measurement point with the correct orientation and preload. Tighten joint clamps or locking mechanisms to lock the configuration. Reposition and fine-tune as required for successive measurements or inspections. When finished, disengage the magnetic base and store the stand to protect joints and moving parts.

Recommendations

Ensure surfaces are free of chips, oil and coatings that reduce magnetic grip. Use gentle, controlled tightening of joints to avoid overloading or misaligning the indicator. For repeatable measurements, set and note a stable reference position before taking series measurements.
