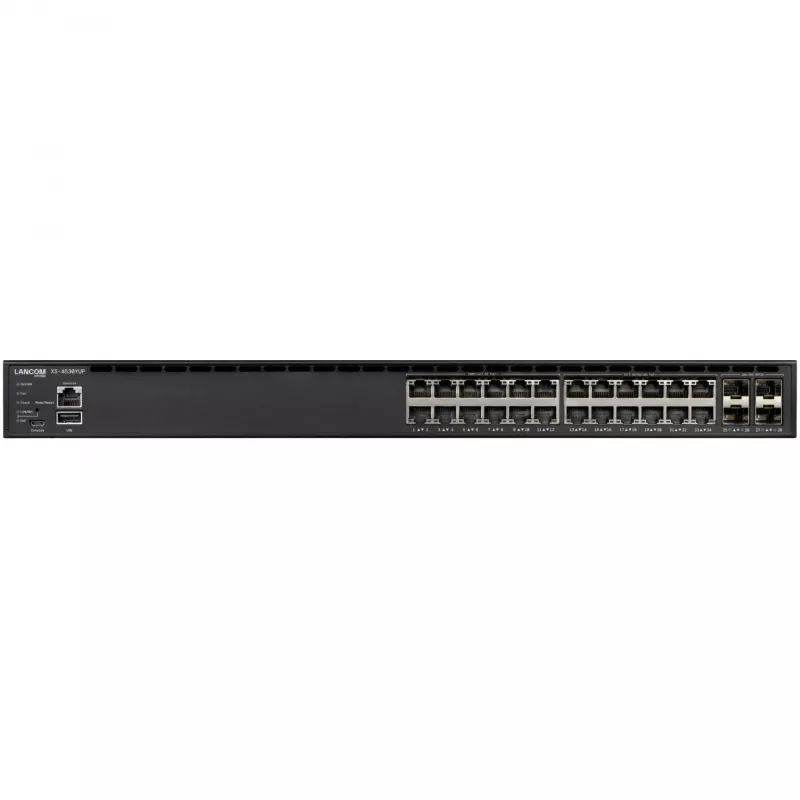

Managed L3 Switch Lancom Systems LANCOM XS-4530YUP — 24 × 10G RJ-45, PoE, 900 Gbit/s, 1U Rack

The LANCOM XS-4530YUP is a managed Layer-3 Ethernet access switch designed for multi-gigabit enterprise and data-centre environments. It provides 24 RJ-45 10G-capable ports that support 100/1000/10000 speeds with Power over Ethernet (PoE) on all ports, a high-performance switching fabric of 900 Gbit/s, and a 1U rack form factor with an RJ-45/micro-USB console port. The switch integrates multi-gigabit uplink options and redundant hardware elements to support continuous operation and high-density, power-hungry edge deployments.

Advantages

The LANCOM XS-4530YUP combines multi-gigabit access with PoE++ on every copper port, giving centralized power delivery to high-performance devices while eliminating the need for separate power supplies. Built-in Layer‑3 routing, policy-based dynamic routing (OSPF/BGP4) and a 32,000-entry MAC table enable efficient traffic separation and high forwarding performance across complex networks. Hardware redundancy (hot-swappable PSU and fans), virtual port channel (VPC) and optional stacking provide high availability and support in-service software updates without interrupting traffic. Management is available through a web GUI, standard CLI or the LANCOM Management Cloud for centralized provisioning and automation.

Suitable for

• Enterprise access layer for offices, campuses and branch aggregation
• High-density Wi‑Fi 6/7 access point deployments requiring multi-gigabit and PoE++
• Data‑center access and aggregation where wirespeed forwarding is required
• Redundant topologies and multi-site stacks requiring non-stop forwarding

Key specifications

• 24 RJ-45 multi-Gigabit Ethernet ports (100/1000/10000) with PoE support
• 12 × 2.5G and 12 × 10G capable multi-Gigabit port distribution
• Uplink ports: 4 × SFP28 (25G) and 2 × QSFP28 (100G), usable for uplink or stacking
• PoE standards: IEEE 802.3af/802.3at and IEEE 802.3bt PD-Type 4 (PoE++), up to 90 W per port
• Total PoE budget up to 1,440 W with both power supplies installed
• Switching capacity/backplane: 900 Gbit/s
• MAC address table capacity: 32,000 entries
• Layer 3 features: static routing, VRRP, DHCP, OSPF (v2/v3), BGP4, policy-based routing
• High-availability features: Virtual Port Channel (VPC/MC-LAG), stacking, hot-swappable PSU and fans
• Management: Web GUI, industry-standard CLI, LANCOM Management Cloud (LMC) with cloud-managed stacking
• Security: IEEE 802.1X port-based access control, ACLs, TACACS+, SSH, SSL, SNMPv3
• Form factor: 1U rack-mountable; product colour: black; weight: 6.2 kg

How to use

Install the LANCOM XS-4530YUP in a standard 19" rack using the supplied slide-in rails. Connect uplink fiber or copper links to the SFP28/QSFP28 and RJ-45 ports as required, and attach PoE-powered devices to the RJ-45 ports. Configure base network parameters using the web-based management GUI or the CLI via the RJ-45/Micro-USB console. For larger or multi-site deployments, register and manage devices through the LANCOM Management Cloud to apply centralized port templates, VLAN assignments and firmware management. When configuring PoE, verify cable categories (CAT6a/CAT7 recommended for 10G performance) and plan the PoE budget to match connected device power requirements.

Recommendations

Use CAT6a or CAT7 cabling for 10G copper links and ensure proper heat management in the rack. For redundancy-sensitive environments, deploy paired switches in a VPC/stack configuration and enable redundant power supplies and fans. Use the LANCOM Management Cloud to automate switch provisioning and to maintain consistent port profiles and VLANs across locations.
