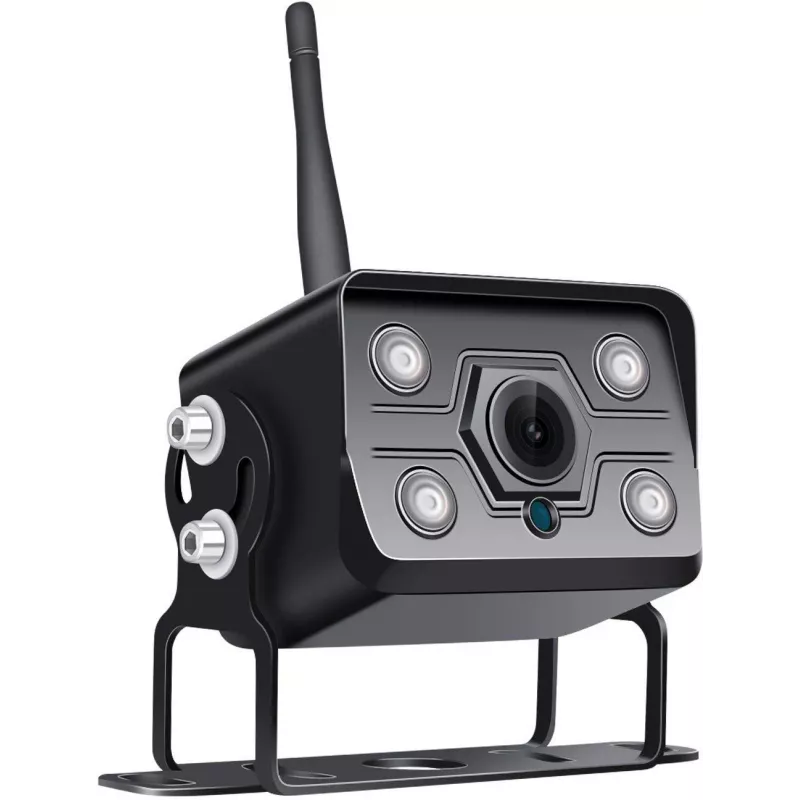

MBG 607T1 bezdrôtová cúvacia kamera pre systém MBG Line SNR-CX77

Reversing safely requires clear visibility behind your vehicle, especially in low light or tight spaces. The MBG 607T1 wireless reversing camera provides a reliable rear view for the MBG Line SNR-CX77 system, eliminating the need for complex cable runs between camera and monitor.

Who is it for

Drivers who already own the MBG Line SNR-CX77 wireless reversing camera system and need a replacement or additional camera. It is suitable for cars, vans, and light commercial vehicles where a 12V power supply is available.

Main features

• Wireless 2.4 GHz digital transmission with a range of up to 100 m in open field.
• 1/3" CMOS sensor with 648 x 488 effective pixels and 480 TV lines resolution.
• 120° diagonal viewing angle for a wide rear view.
• Night vision with 6-8 IR LEDs, minimum illumination 0 Lux (IR on).
• IP68 waterproof rating for all-weather use.
• Aluminum alloy housing for durability.
• PAL/NTSC auto-switching video system.

Specifications

• Compatibility: MBG Line SNR-CX77 wireless reversing camera system
• Wireless frequency: 2.4 GHz digital
• Image sensor: 1/3" CMOS
• Effective pixels: 648 x 488
• Resolution: 480 TV lines
• Viewing angle: 120° diagonal
• Night vision: Yes, 6-8 IR LEDs
• Minimum illumination: 0 Lux (IR on)
• Waterproof rating: IP68
• Power supply: DC 12V
• Operating temperature: -20°C to +70°C
• Transmission range: up to 100 m open field
• Video system: PAL/NTSC auto-switching
• Mounting type: Surface mount (bracket included)
• Housing material: Aluminum alloy

Tips

For optimal performance, mount the camera high on the rear of the vehicle to maximize the viewing angle. Ensure the camera is paired with the SNR-CX77 monitor before final installation. The IP68 rating allows the camera to withstand rain, snow, and car washes.
